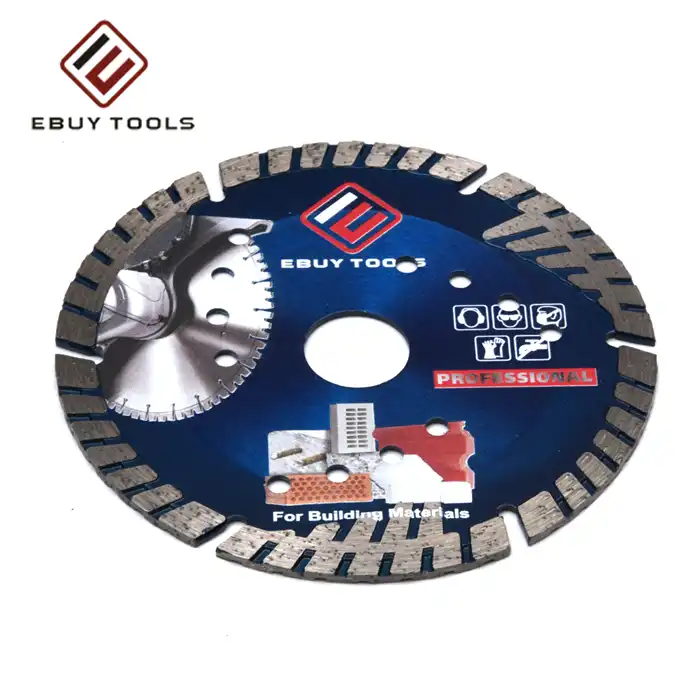

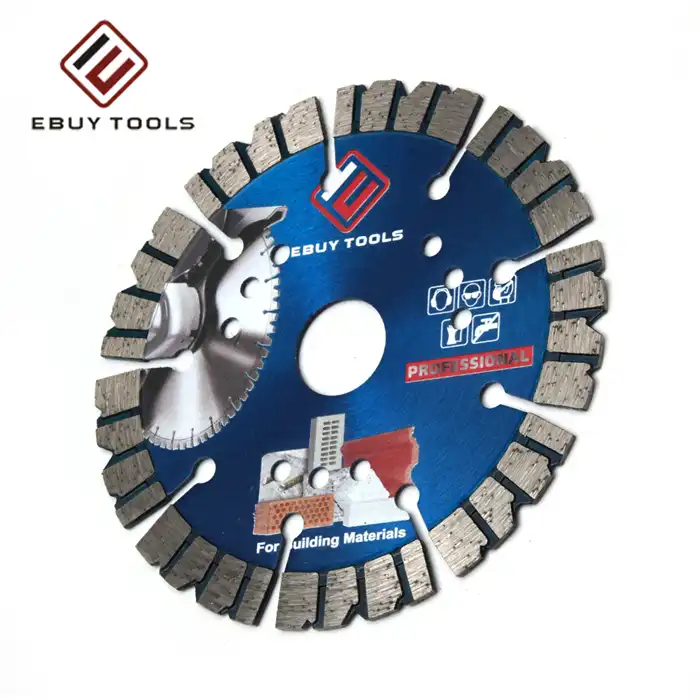

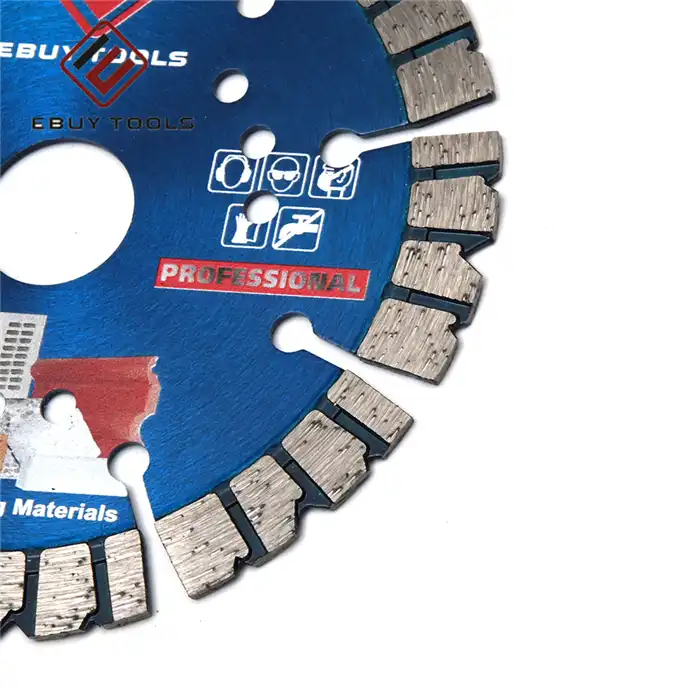

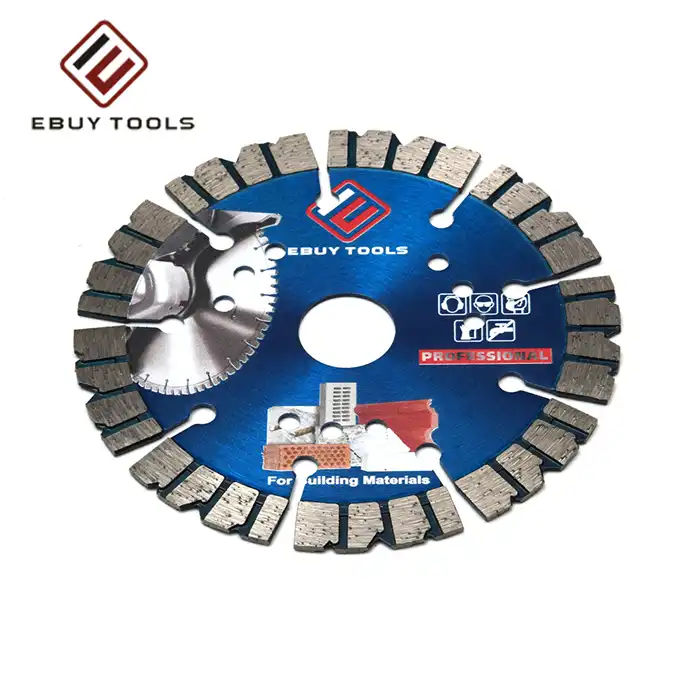

Segmented Diamond Saw Blade

Segmented Diamond Saw Blade: Professional Heavy-Duty Cutting Solutions

When you need precision cutting through tough materials like reinforced concrete and masonry, Danyang Ebuy Tools delivers enterprise-grade Segmented Diamond Saw Blade solutions. Our manufacturing facility spans 77,000 square meters with 319 skilled employees, producing approximately 150,000 diamond saw blades daily. Each blade features diamond-impregnated metal segments with optimized gullet designs for superior heat dissipation and debris evacuation, ensuring reliable performance in demanding industrial applications.

Our Factory

What Makes Our Segmented Diamond Saw Blades Different?

You get cutting tools engineered to solve real construction challenges. The segmented design isn't just about looks – it's about functionality. Those gaps between segments (gullets) serve critical purposes:

Thermal Management: The gullets allow your blade's steel core to expand naturally during high-temperature cutting. This prevents warping that destroys cheaper blades.

Debris Removal: Heavy slurry and dust have escape routes, keeping your cutting line clean and maintaining consistent performance.

Speed Efficiency: The segmented architecture prevents glazing effects common in continuous rim blades, especially when cutting cured concrete and granite.

Our Certificate

Technical Specifications

Parameter	Specification	Benefit
Diamond Mesh	30/40 to 50/60 US mesh	Optimal cutting aggression
Bond Hardness	85-105 HRB	Material-matched performance
Core Material	65Mn/75Cr1 tool steel	Maximum stability at high RPM
Gullet Design	Keyhole/U-slot/Narrow slot	Enhanced vibration dampening
Operating Temperature	Up to 500°C	Dry cutting capability
Maximum RPM	12,000 RPM	Handheld saw compatibility

Applications That Demand Segmented Blades

Heavy-Duty Demolition

Your demolition projects require tools that handle both concrete and embedded steel rebar. Our productprovides intermittent cooling during high-friction encounters with steel reinforcement.

Infrastructure Cutting

For walk-behind floor saws cutting asphalt and green concrete, you need blades with deep-draft protection. Our design prevents undercutting that destroys the steel core before diamond segments are fully utilized.

Professional Masonry Work

When you're running high-RPM handheld gas cutters for brick, paver, and block work, you need reliable performance in dusty environments where water feed isn't practical.

Exhibition

Why Choose Cold Pressed vs Hot Pressed?

Cold Pressed Segmented Blades: Your economical choice for general masonry and non-intensive cutting tasks. These provide excellent cost-effectiveness while maintaining aggressive cutting performance.

Hot Pressed Segmented Blades: When you need maximum density and longevity, hot pressing creates superior holding power for diamond grits and enhanced thermal stability for extended use.

Both manufacturing methods deliver the core benefits of segmented design: superior air cooling, effective debris ejection, and reliable dry cutting performance.

Why Choose Us

Quality Standards You Can Trust

Our Segmented Diamond Saw Blade production adheres to EN13236 safety specifications and MPA Hannover certification requirements. Every blade undergoes rigorous testing for:

· Weld strength integrity

· Core tensioning accuracy

· Segment bond quality

· Run-out precision

Our dedicated R&D department continuously develops customized solutions to meet your specific cutting requirements. From bond matrix formulation to gullet geometry, we engineer blades that match your exact application needs.

Manufacturing Excellence

With 319 gifted workers and present day generation offices, we keep up reliable quality over our whole item line. Our rigid quality control framework incorporates real-time generation observing and pre-shipment assessment protocols.

You advantage from our significant generation capacity – 150,000 every day yield guarantees solid supply for large-volume orders whereas keeping up adaptability for customized specifications.

Packaging

FAQ

How long do the items ordinarily last?

Blade life depends on fabric hardness, cutting strategy, and working conditions. Our sectioned edges regularly cut 50-200 straight feet of concrete per inch of edge breadth beneath ordinary conditions.

Can I utilize portioned edges for damp cutting?

Yes, whereas fragmented edges exceed expectations in dry cutting applications, they perform well with water cooling as well. The necks really offer assistance water reach the cutting zone more effectively.

What's the contrast between fragment stature options?

Taller sections give longer edge life but may cause more forceful cutting activity. Standard stature sections offer adjusted execution for most applications.

How do I avoid untimely section loss?

Avoid constraining the edge through fabric, keep up legitimate cutting speed, and guarantee your saw works inside the blade's RPM rating. Slow passage into cuts decreases push on portion bonds.

Can you customize fragment dispersing for particular applications?

Absolutely. Our R&D group can alter neck width, section stature, and dispersing designs to optimize execution for your particular cutting necessities with least arrange quantities.

What arbor sizes are available?

We make edges with standard arbor sizes from 7/8" to 1-1/4", with metric choices accessible. Custom arbor sizes can be suited for specialized hardware.

Contact Us

Ready to experience professional-grade cutting performance with Segmented Diamond Saw Blade? Contact our team at [email protected] for technical specifications and custom solutions.
