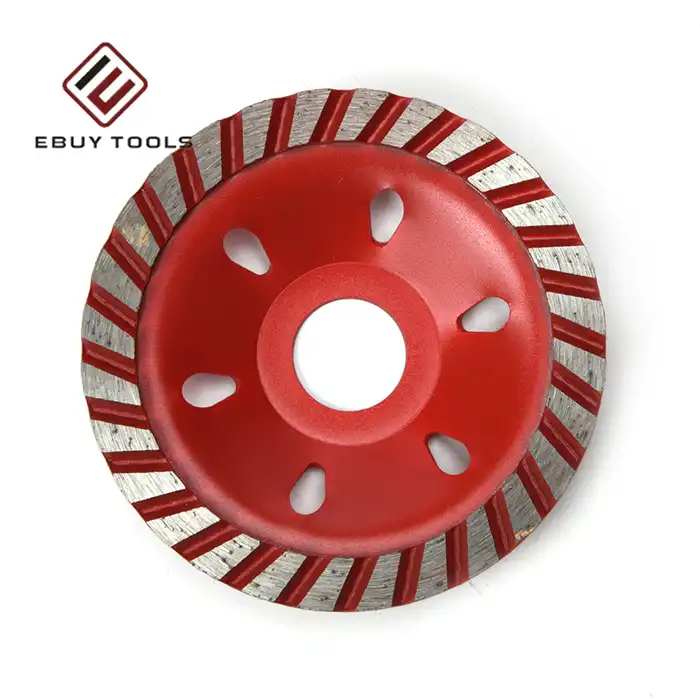

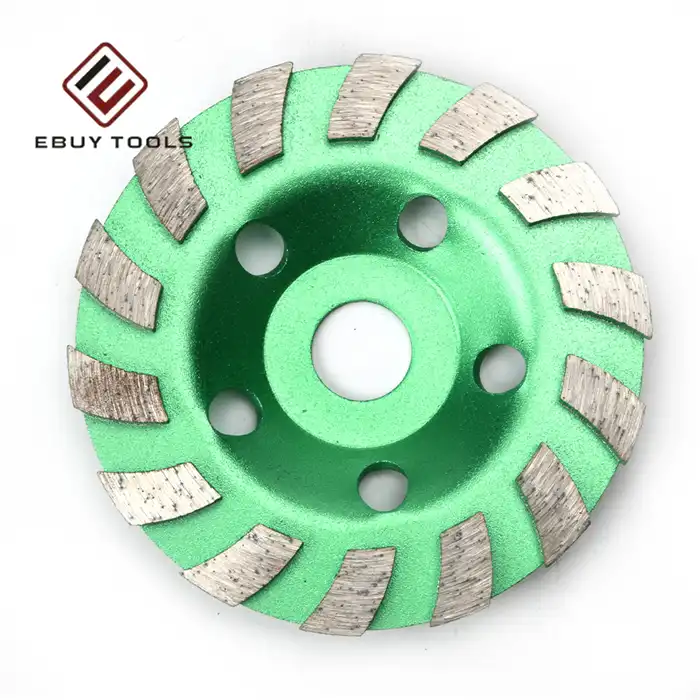

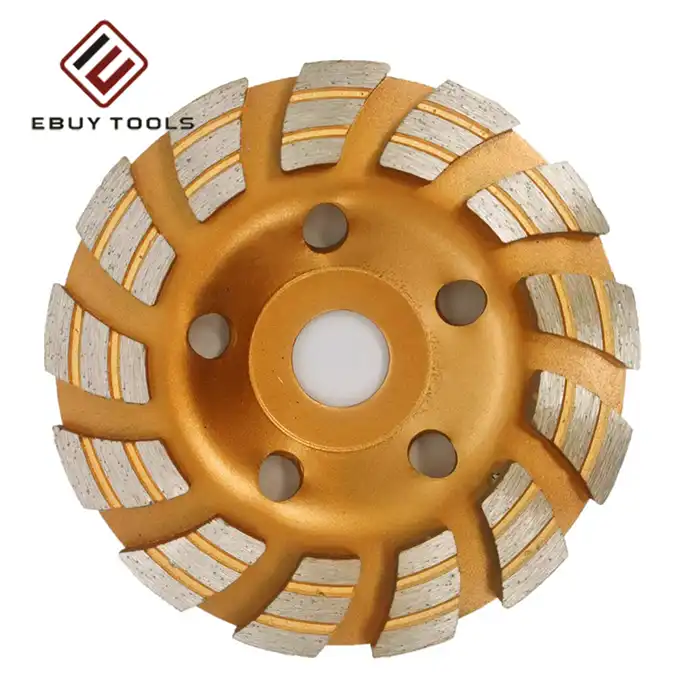

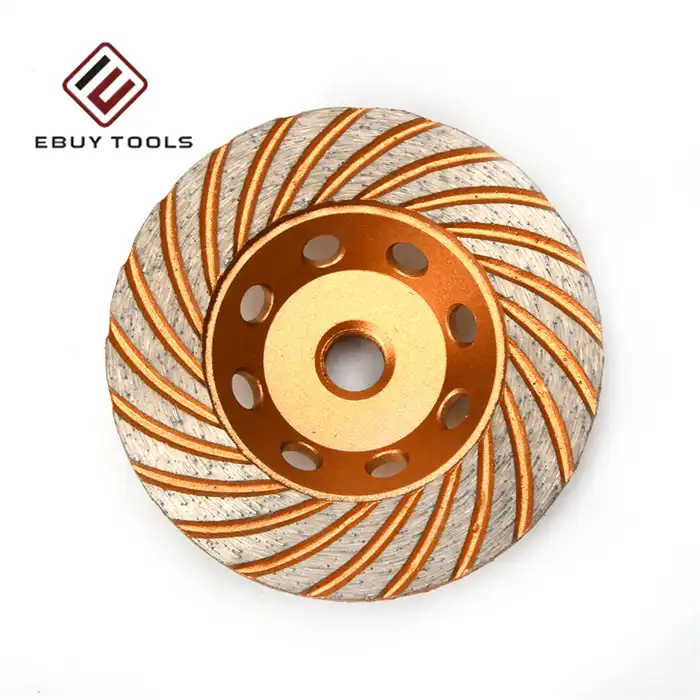

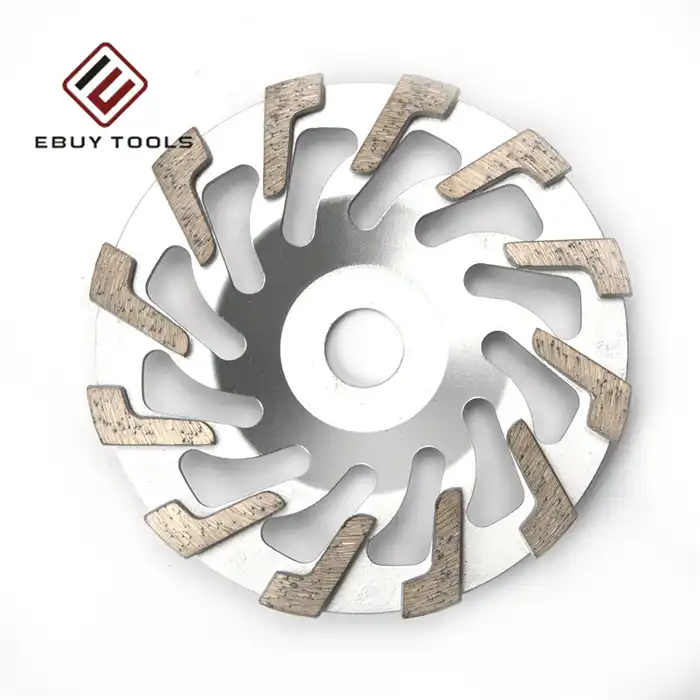

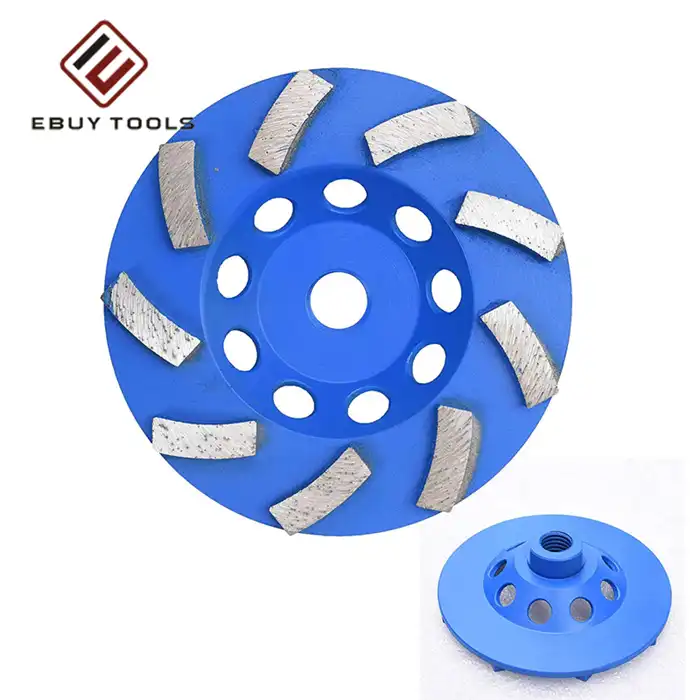

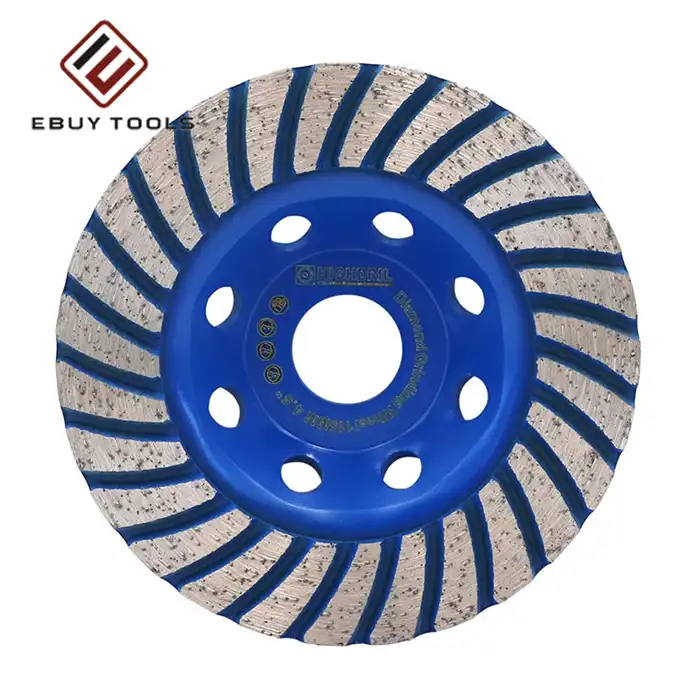

Turbo Segmented Grinding Wheel
1.Diamond grinding wheels are mainly used for grinding and polishing stone products.such as Granite ,Marble, Sandstone, Limestone, etc.Also suitable for Grinding Concrete. Ideal for smoothing and shaping as well as stock removal.
2.Premium Marble and Granite Diamond Cup Wheels are sintered turbo wheels that feature special cooling holes to reduce core heat for optimum performance during aggressive grinding and stock removal. Dry/Wet Use etc.Steel Base with Water Hole or Aluminum are available.
3.Welding: Sintered.
4.Used on angle grinder and floor grinding machine.
5.Packing :Paper case or according to our customers request.
Turbo Segmented Grinding Wheel - Professional Grade Diamond Tools
The Turbo Segmented Grinding Wheel from Danyang Ebuy Tools delivers exceptional performance for concrete, masonry, and stone applications. Our advanced design features spiral diamond segments that provide superior aggressive grinding while maintaining smoother finishes. Manufactured in our 77,000 square meter facility by 319 skilled professionals, we produce approximately 150,000 pieces daily with consistent quality. The aerodynamic channels between segments rapidly eject slurry while preventing overheating, solving common chattering issues in demanding applications.
Our Factory
Technical Specifications
|
Specification
|
Details
|
|
Diameter Range
|
4" - 9" (100mm - 230mm)
|
|
Bore Size
|
22.23mm (7/8"), 5/8"-11 thread
|
|
Segment Height
|
10mm - 15mm
|
|
Bond Matrix
|
Soft, Medium, Hard Bond Options
|
|
Diamond Grit
|
16/20 to 120/140 mesh
|
|
Max RPM
|
11,000 - 13,300 (diameter dependent)
|
|
Peripheral Speed
|
Up to 80m/s
|
|
Dynamic Balance
|
Grade G6.3 or better
|
|
Safety Standard
|
EN13236 compliant
|
Our Certificate
Key Features & Benefits
Advanced Spiral Design
The unique turbo configuration of Turbo Segmented Grinding Wheel increases effective grinding surface area by approximately 20% compared to standard segmented wheels. This design ensures constant surface contact, eliminating the bouncing and chattering issues common with aggressive grinding operations.
Superior Heat Dissipation
Built-in cooling channels act as air impellers during operation. This feature prevents premature tool glazing and thermal damage to your workpiece, extending tool life by 30-50% in wet grinding applications.
Professional Quality Control
Every wheel undergoes rigorous testing including:
· Segment welding strength verification (>15Nm/mm² shear strength)
· Dynamic balancing to prevent vibration
· Diamond distribution analysis for consistent performance
· Run-out tolerance testing (<0.2mm axial deviation)
Exhibition
Applications
Concrete Surface Preparation
Perfect for leveling high spots on poured concrete floors and grinding expansion joints. The robust design handles reinforced concrete environments where steel exposure requires impact resistance.
Coating Removal
Effectively removes heavy epoxy, glue, mastic, and paint without smearing. The cooling channels prevent adhesive materials from melting and clogging segments, maintaining consistent cutting performance.
Stone Edge Fabrication
Ideal for chamfering and smoothing granite and marble slab edges. The turbo segments reduce micro-impact fractures, preventing chipping common with standard segmented wheels.
Production Process
Bond Matrix Selection Guide
Soft Bond: Recommended for hard concrete (>6000 PSI) to expose fresh diamonds quickly
Medium Bond: General purpose applications across various materials
Hard Bond: Designed for abrasive materials to prevent premature wear
Choose the appropriate bond based on your material hardness for optimal performance and tool life.
Packaging
FAQ
What makes turbo portions distinctive from standard segments?
Turbo fragments include a nonstop winding plan that gives smoother wraps up and decreases vibration. The streamlined channels between portions make strides cooling and flotsam and jetsam expulsion compared to straight sectioned wheels.
Can I utilize this wheel for both damp and dry grinding?
Yes, the turbo plan particularly helps dry pounding through progressed warm dissemination. In any case, damp pounding is prescribed for clean control and amplifying device life by 30-50%.
Why is my wheel coating and losing cutting ability?
Glazing ordinarily demonstrates the bond is as well difficult for your fabric. Switch to a gentler bond lattice that dissolves quicker to uncover new precious stone coarseness continuously.
What's the greatest secure working speed?
Most wheels are appraised for 80m/s fringe speed. Continuously check the laser-etched RPM constrain on your particular wheel distance across. Never surpass producer specifications.
How do I anticipate over the top vibration?
Ensure appropriate wheel seating on the arbor and check energetic adjust. Over the top vibration may demonstrate uneven wear or fabricating abandons requiring quick wheel replacement.
What security guidelines do your wheels meet?
Our wheels comply with EN13236 security prerequisites and ISO 6104 dimensional resiliences, guaranteeing professional-grade execution and administrator safety.
Why Choose Danyang Ebuy Tools?
With our broad fabricating involvement and committed R&D office, we provide precision-engineered crushing arrangements. Our rigid quality control framework guarantees each product meets universal standards.
We offer customization choices counting symbol printing and custom bundling to meet your branding necessities. Our specialized bolster group gives continuous help to optimize your crushing operations.
Contact Us
Ready to experience superior grinding performance with Turbo Segmented Grinding Wheel? Contact us at [email protected] for quotes and technical support.
