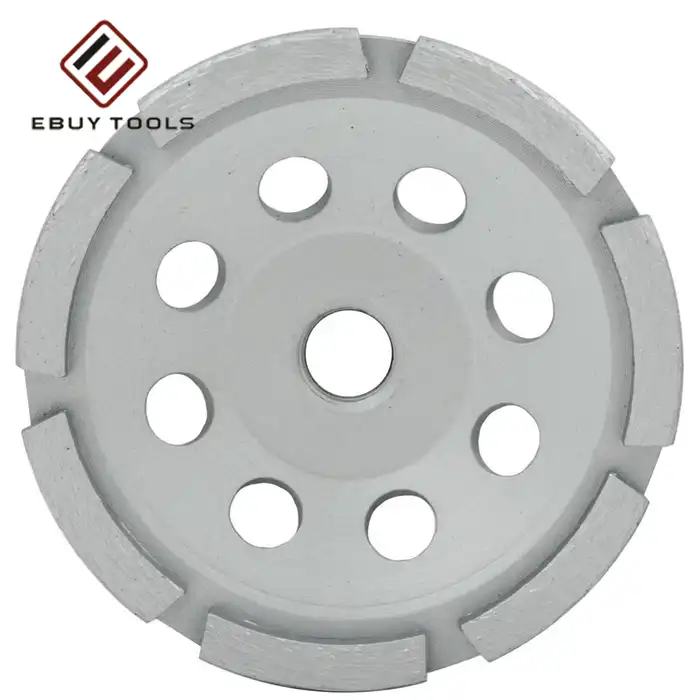

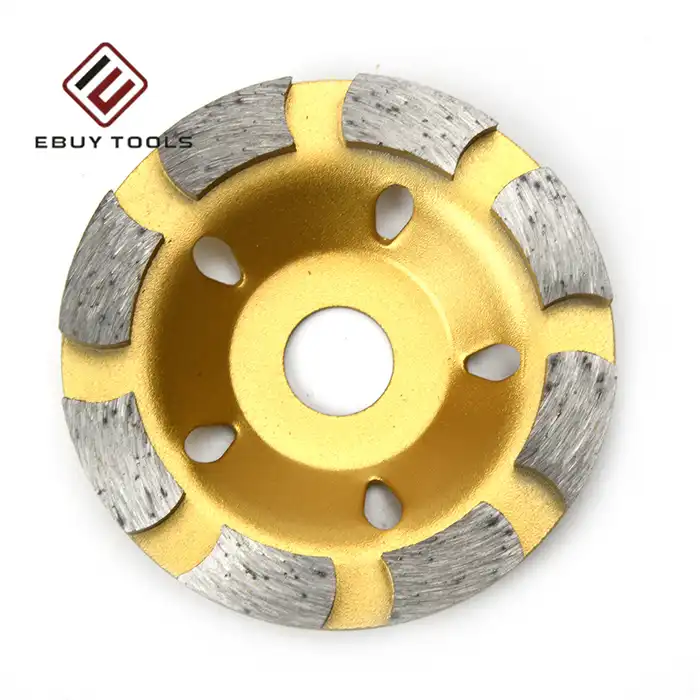

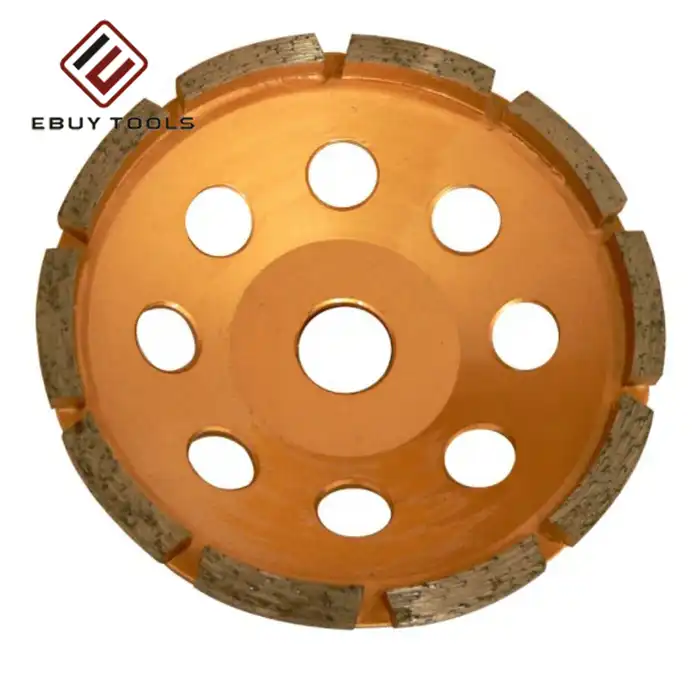

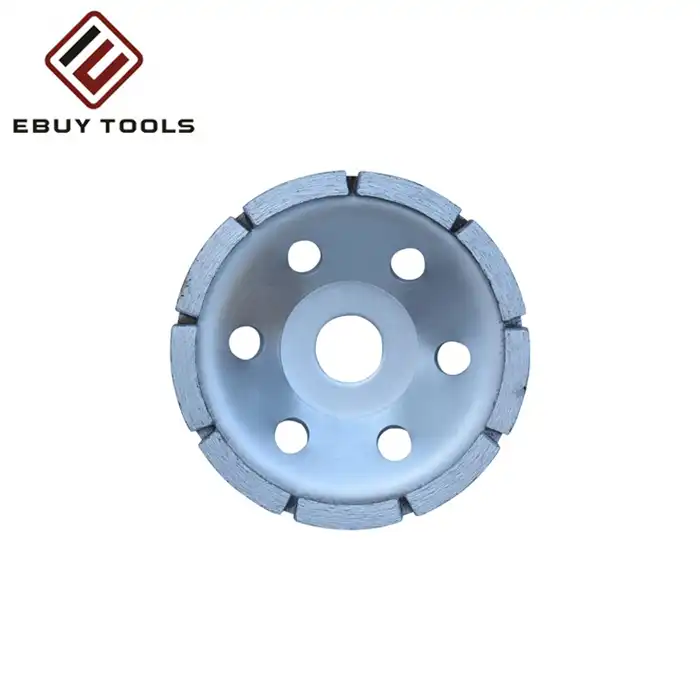

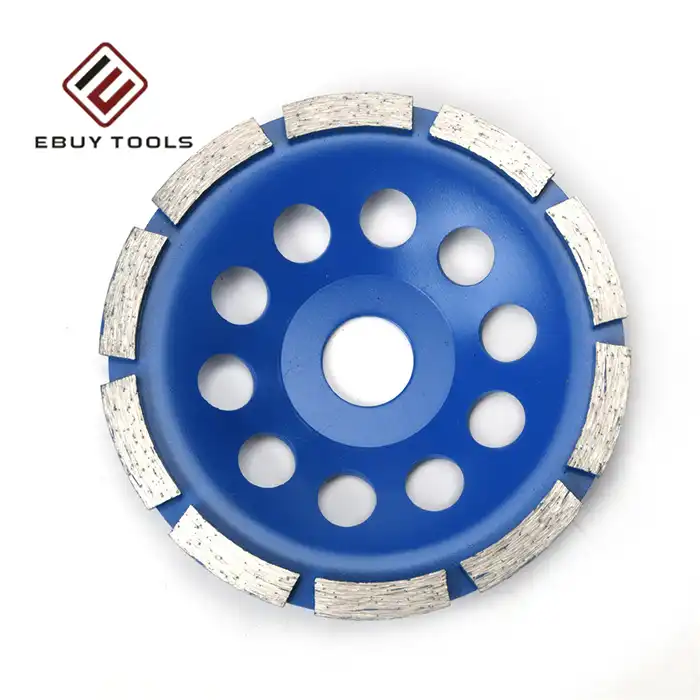

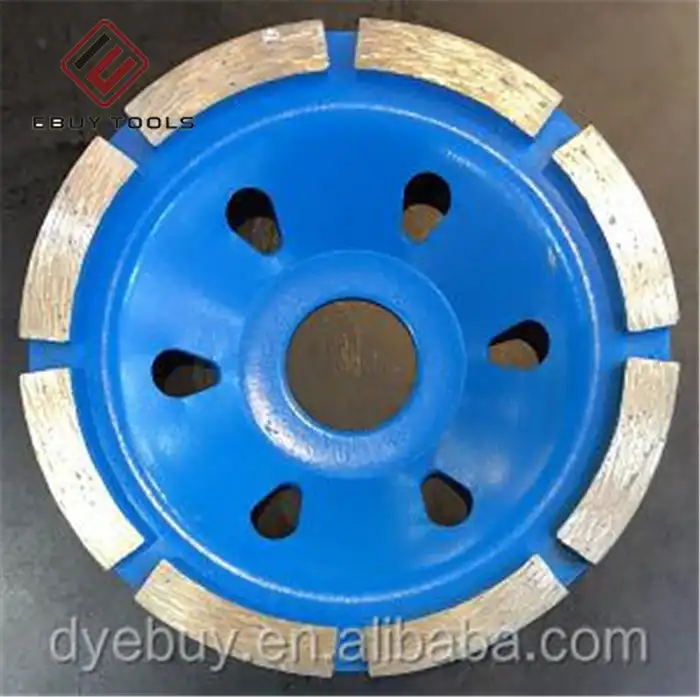

Single Row Segmented Grinding Wheel

Single Row Segmented Grinding Wheel - Professional Diamond Abrasive Tool

Danyang Ebuy Tools' Single Row Segmented Grinding Wheel delivers unmatched performance for heavy-duty material removal applications. Our specialized diamond abrasive tool features enterprise-grade construction with synthetic diamond grit (16/20 to 30/40 mesh) and high-temperature sintered metal bonds. With our modern 77,000-square-meter facility producing 150,000 pieces daily, we ensure consistent quality through rigorous EN13236 compliance testing. Each wheel undergoes dynamic balance testing and microscopic diamond distribution inspection. Our 319 skilled employees utilize advanced high-frequency induction welding technology to guarantee segment integrity at operational speeds up to 11,000 RPM.

Our Factory

What Makes Our Single Row Segmented Grinding Wheel Different?

You're looking for aggressive material removal that other tools simply can't deliver. Our diamond grinding wheel solves your toughest challenges with its unique single-row segment configuration.

The design reduces surface contact area significantly. This increases downward pressure per diamond crystal, giving you maximum cutting efficiency. While double-row wheels ride over ridges, our tool cuts through them aggressively.

Your projects demand speed over finish quality? This is your solution. The wide gaps between segments provide superior dust evacuation and heat dissipation. You won't face the glazing issues common with turbo-style wheels.

Our Certificate

Key Applications and Performance

Heavy Material Leveling

You'll find this tool essential for construction projects requiring immediate surface correction. Remove formwork imperfections quickly and level uneven concrete joints with precision.

Coating and Adhesive Removal

Stubborn residues like carpet glue, black mastic, or thick epoxy meet their match. The aggressive bite prevents segment loading, where other wheels would clog and fail.

Surface Profiling

Create the perfect CSP 2-3 profile for your next coating application. The mechanical etching ensures proper chemical bonding for waterproofing or industrial screed.

Technical Specifications

Parameter	Specification
Diamond Mesh	16/20 to 30/40 (Coarse)
Bond Type	Metal Bond (Soft/Hard Options)
Maximum RPM	11,000 (4-5 inch wheels)
Segment Attachment	High-Frequency Induction Welding
Balance Standard	EN13236 Compliant
Core Material	Heat-Treated Steel
Operating Temperature	Up to 200°C
Recommended Use	Dry/Wet Grinding

Our Exhibition

Quality Assurance You Can Trust

Our quality control system ensures every Single Row Segmented Grinding Wheel meets professional standards:

Segment Welding Strength: We use high-frequency induction welding and high-temperature sintering. Each batch undergoes shear testing to prevent segment detachment.

Dynamic Balance Testing: Every wheel receives individual balancing to eliminate chatter marks and protect your equipment bearings.

Diamond Distribution: Microscopic inspection confirms homogeneous diamond grit distribution across all segments.

Run-out Tolerance: Steel core flatness testing ensures true spinning and prevents substrate damage.

Production Process

Choosing the Right Bond Hardness

Your material determines the optimal bond selection:

· Soft Bond: Use on hard concrete and masonry. The bond wears away to expose fresh diamonds continuously.

· Hard Bond: Perfect for green concrete and soft materials. Resists premature wear from abrasive dust.

Match your bond to your material for maximum efficiency and tool life.

Professional Installation and Safety

Mount your crushing wheel legitimately for ideal execution. Guarantee your processor matches the wheel's RPM rating. Continuously wear suitable PPE counting eye assurance and clean masks.

Check portion astuteness some time recently each utilize. See for breaks or free fragments that might demonstrate wear. Supplant wheels appearing signs of uneven wear or vibration.

Our Packaging

Frequently Asked Questions

Q: How does a single push compare to twofold push pounding wheels?

A: Select our product when you require greatest fabric expulsion speed. Twofold push wheels offer smoother wraps up but evacuate fabric slower. Single push plan gives the speediest stock expulsion rates available.

Q: Why is my wheel wearing out quickly?

A: You might be utilizing delicate bond fragments on delicate materials. Switch to difficult bond portions for green concrete or rough substrates. This avoids untimely jewel wear and expands device life.

Q: Can I utilize this wheel for damp pounding applications?

A: Completely. Whereas outlined with discuss channels for dry crushing, water stifles clean and expands wheel life. Guarantee your processor is appraised for damp utilize to keep up security standards.

Q: What causes profound scratch marks on my surface?

A: This is ordinary for forceful evacuation devices. Our wheel makes tall point weight for greatest effectiveness. Utilize this for introductory fabric expulsion, at that point take after with better abrasives for smooth finishes.

Q: What coarseness estimate ought to I choose?

A: Standard coarse corn meal (16/20 or 30/40) work best for overwhelming expulsion. Higher corn meal vanquish the reason of forceful cutting and decrease expulsion rates significantly.

Why Choose Danyang Ebuy Tools?

Our devoted R&D division and rigid quality control convey accuracy and strength in each item. We get it your require for dependable, high-volume supply to meet venture deadlines.

With broad industry involvement and advanced fabricating capabilities, we give customized arrangements for your particular necessities. Our commitment to advancement guarantees you get cutting-edge rough innovation.

Contact Us

Ready to experience superior grinding performance with Single Row Segmented Grinding Wheel? Contact us at [email protected] for expert consultation and competitive pricing.
