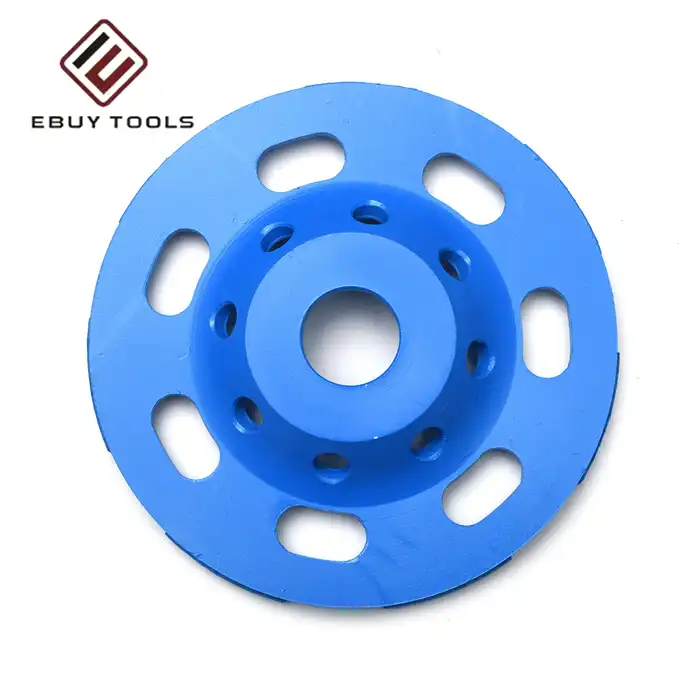

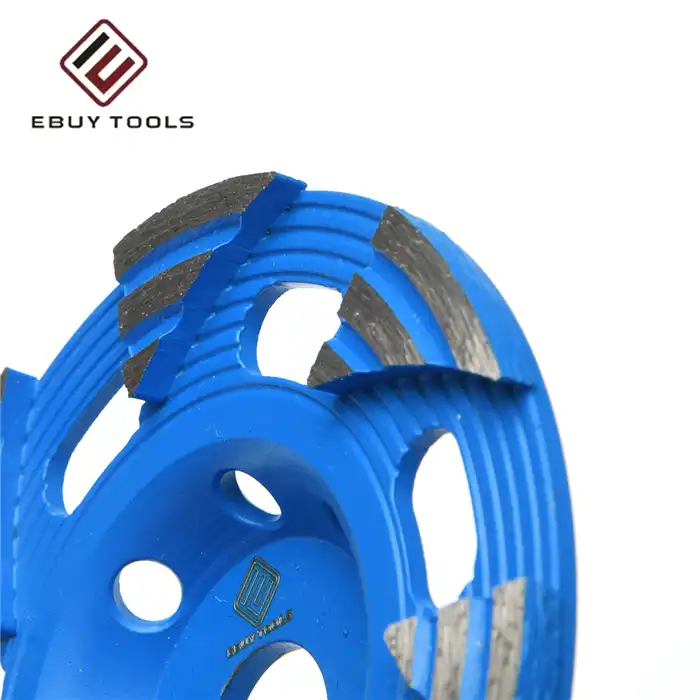

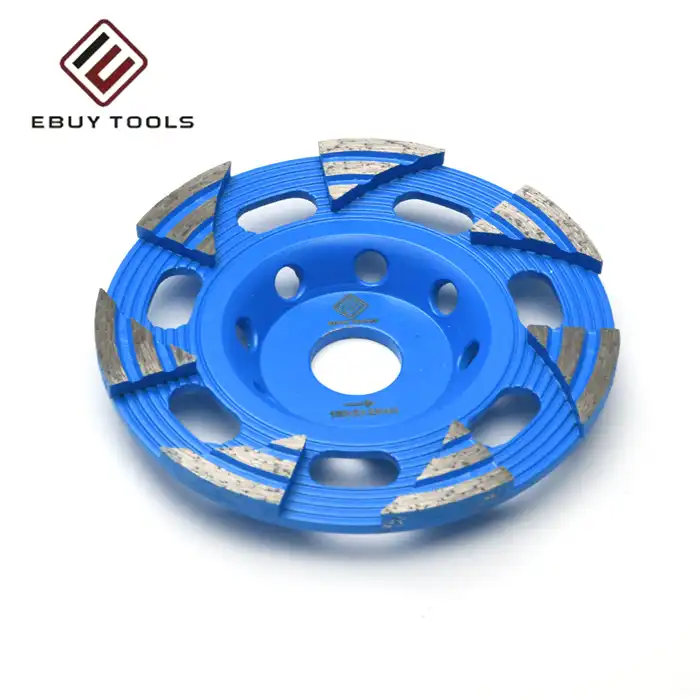

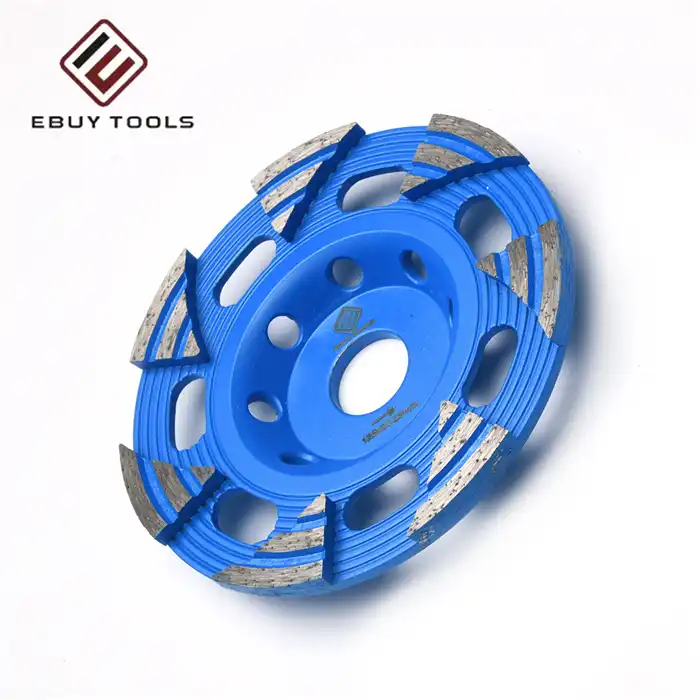

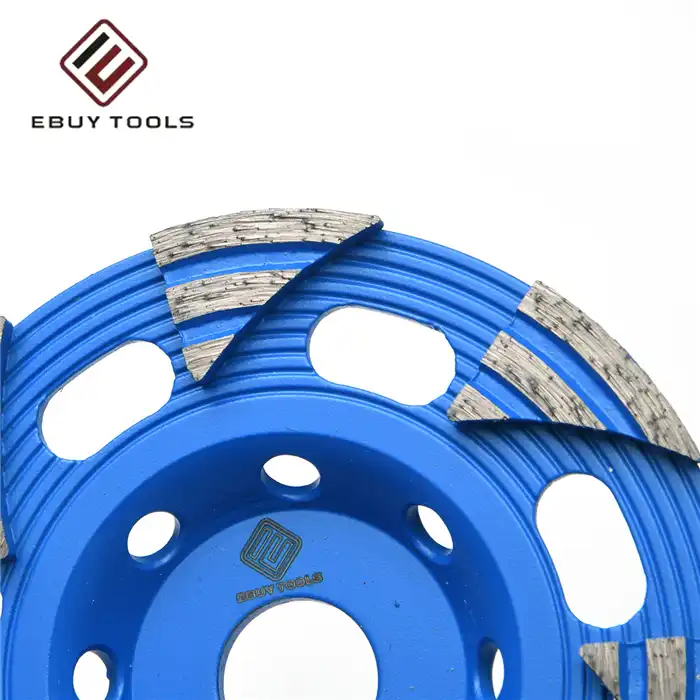

Diamond Grinding Disc

Professional Diamond Grinding Disc for Heavy-Duty Surface Preparation

When your project demands superior material removal and precision finishing, our Diamond Grinding Disc delivers enterprise-grade performance. Manufactured in our expansive 77,000 square meter facility by 319 skilled technicians, these discs feature synthetic industrial diamond segments engineered for concrete, granite, marble, and terrazzo applications. Our production capacity of 150,000 pieces daily ensures reliable supply for your large-scale operations. Each disc utilizes advanced metal, resin, or ceramic bond matrices that self-sharpen to maintain cutting efficiency while addressing critical challenges like coating removal, lippage correction, and operational cost reduction.

Our Factory

Product Specifications

Parameter	Specification
Diameter Range	4", 5", 7", 9"
Segment Height	8-12mm
Bond Types	Metal, Resin, Ceramic
Grit Range	30# - 400#
Attachment	5/8"-11, M14, 22.23mm
Max RPM	4,000-13,300 (size dependent)
Diamond Concentration	30%-45%
Working Temperature	Up to 180°C (resin), 350°C (metal)

Our Certificate

Advanced Engineering Features

Superior Bond Technology

Our Diamond Grinding Discs incorporate three specialized bond systems. Metal bonds provide exceptional heat resistance and rigidity for aggressive material removal. Resin bonds offer flexibility for contoured surfaces and fine finishing work. Ceramic hybrid bonds bridge the gap between coarse grinding and polishing stages.

Self-Sharpening Diamond Matrix

The engineered bond wears at precisely calculated rates. This exposes fresh diamond cutting edges continuously. You get consistent performance throughout the disc's lifespan without glazing or loading issues.

Heat Dissipation Design

The conductive metal segments effectively manage thermal buildup. This prevents surface burns and micro-cracking on sensitive substrates. Your concrete and stone surfaces maintain structural integrity during intensive grinding operations.

Our Exhibition

Professional Applications

Industrial Surface Preparation

Remove failed epoxy coatings, polyurethane, and adhesive residues from warehouse and factory floors. The specialized segment geometry prevents gumming while maintaining aggressive cutting action on sticky materials.

Architectural Stone Processing

Level uneven granite and marble installations with precision. Start with coarse 30-50 grit metal bond discs for lippage removal. Progress through medium grits to achieve perfectly flat surfaces ready for polishing.

Concrete Floor Restoration

Prepare surfaces for decorative treatments and overlays. Our discs work effectively on both green concrete and aged surfaces. They remove surface laitance while exposing the desired aggregate profile.

Terrazzo Refinishing

Cut through cementitious binders without disturbing decorative aggregate chips. The controlled diamond concentration maintains cutting efficiency while preserving the integrity of embedded glass and marble elements.

Why Choose Our Manufacturing Excellence?

Your ventures advantage from our considerable generation framework and quality frameworks. Our R&D division ceaselessly creates arrangements for particular application challenges. Each plate experiences thorough quality control some time recently shipment.

We get it the requesting nature of proficient surface arrangement work. That's why our circles keep up execution consistency over amplified utilize cycles. This decreases your instrument alter recurrence and venture completion times.

Custom branding alternatives are accessible for qualifying orders. We can consolidate your company symbol and determinations to back your brand nearness with clients.

Our Packaging

FAQ

Q: What's the distinction between metal and gum bond crushing discs?

A: Metal bond plates offer predominant strength and warm resistance for overwhelming fabric evacuation on difficult concrete. Gum bond circles give more adaptability and smoother wraps up but wear quicker. Select based on your fabric hardness and wanted surface quality.

Q: How do I select the right coarseness measure for my project?

A: Begin with 30-50 coarseness for evacuating coatings or overwhelming lippage. Utilize 80-120 coarseness for common surface planning. Advance to 200-400 coarseness for pre-polishing planning. Continuously test on a little zone to begin with to confirm results.

Q: Can these plates work on both damp and dry applications?

A: Yes, but execution shifts by bond sort. Metal bond plates work well in both conditions. Gum bonds incline toward damp utilize for warm administration. Dry utilize requires legitimate clean collection and may diminish circle lifespan.

Q: What gear compatibility ought to I consider?

A: Our circles fit standard point processors and floor crushing machines. Check your equipment's RPM rating against our details. Guarantee appropriate protect establishment and take after producer security guidelines.

Q: How long do these circles regularly last?

A: Life expectancy depends on fabric hardness, working conditions, and administrator procedure. Anticipate 2-5 times longer life compared to standard abrasives. Metal bond circles for the most part outlive gum bonds in heavy-duty applications.

Q: Do you offer specialized bolster for application questions?

A: Completely. Our specialized group gives direction on circle determination, working parameters, and investigating. We offer assistance optimize your crushing forms for most extreme proficiency and surface quality.

Why Choose Us

Contact Us

Get professional Diamond Grinding Disc grinding solutions tailored to your project requirements. Contact us at [email protected] for technical specifications and custom orders.
