Masonry Drill Bits

Masonry Drill Bits: Professional-Grade Cutting Tools for Construction Excellence

Danyang Ebuy Tools' Masonry Drill Bits combine advanced tungsten carbide technology with precision engineering to deliver exceptional performance in concrete, brick, and stone applications. Our modern 77,000 square meter facility, operated by 319 skilled employees, produces these specialized rotary cutting tools with daily manufacturing capacity exceeding 150,000 units. Each bit features impact-resistant tungsten carbide inserts brazed to heat-treated steel shanks, achieving HRA 88-91 hardness ratings. These products utilize optimized flute geometries and 130° chisel edge designs to ensure precise hole tolerances required for critical structural anchoring and construction applications.

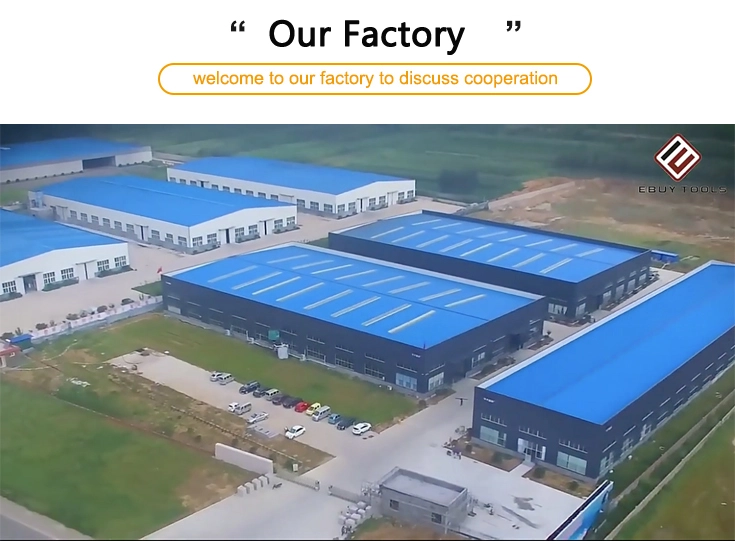

Our Factory

Understanding Masonry Drill Bits Technology

The products represent a specialized category of rotary percussion cutting tools specifically engineered for high-compressive-strength materials. Unlike standard HSS bits that cut through shearing action, these tools utilize a fracture-and-crush methodology to penetrate concrete, brick, stone, and cinder blocks effectively.

The fundamental design incorporates a tungsten carbide (WC-Co) insert brazed into a steel body shank. This composite construction addresses critical industry pain points including low penetration rates in reinforced concrete, thermal degradation of cutting edges, and flute clogging during deep-hole drilling operations.

Our Certificate

Technical Specifications

Parameter	Specification
Shank Material	Chrome-Vanadium (CrV) Steel, HRC 48-52
Carbide Grade	YG8C Tungsten Carbide
Hardness Rating	HRA 88-91

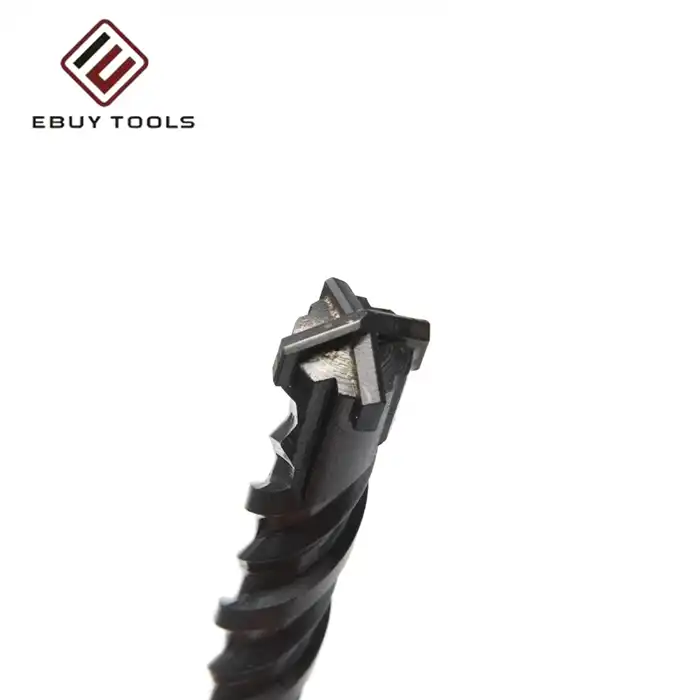

Tip Geometry	130° Chisel Edge / 4-Cutter X-Head
Flute Design	Double U-Flute / L-Flute Profile
Shank Types	Straight, SDS-Plus, SDS-Max
Length Range	110mm - 1000mm
Diameter Range	4mm - 40mm
Concentricity Tolerance	±0.05mm

Industrial Applications and Performance

Heavy Structural Anchoring

Our Masonry Drill Bits excel in reinforced concrete drilling applications ranging from C20/25 to C50/60 grades. The advanced 4-cutter design prevents jamming when encountering embedded rebar, ensuring precise hole geometry for chemical and mechanical anchor installations.

MEP Installation Solutions

Mechanical, electrical, and plumbing professionals rely on our extra-long series bits (up to 1000mm) for through-hole drilling in dual-layer brick cavity walls and thick cinder blocks. The enhanced flute dust removal capabilities prevent bit binding during deep penetrations.

Façade and Cladding Work

Specialized applications in natural stone and ceramic rainscreen systems require reduced impact energy and precision-ground tips. Our bits minimize hairline cracking and spalling on viewing surfaces, maintaining substrate integrity during installation.

Advanced Design Features

Material Composition Excellence

Each bit features forged Chrome-Vanadium steel shanks heat-treated to HRC 48-52 specifications. This process ensures optimal torque resistance and percussive shock absorption without compromising structural integrity.

Optimized Carbide Technology

YG8C grade tungsten carbide tips provide superior abrasion resistance against silica aggregates. The HRA 88-91 hardness rating maintains cutting edge geometry throughout extended use cycles.

Precision Flute Engineering

Double U-flute and L-flute profiles facilitate rapid dust extraction, reducing friction heat generation and preventing bit seizure in deep hole applications. This design significantly extends tool life while maintaining drilling accuracy.

Our Exhibition

Quality Control and Manufacturing Excellence

Our dedicated Research & Development department ensures each batch meets stringent quality standards. The manufacturing process includes multi-stage inspections, pre-shipment quality verification, and secure packaging protocols.

Every product undergoes rigorous testing to verify concentricity tolerances, carbide brazing integrity, and overall dimensional accuracy. This commitment guarantees consistent performance across demanding construction applications.

Compatible Drilling Systems

Our bits suit different boring frameworks counting standard 3-jaw chucks for light-duty applications and SDS (Opened Drive Framework) arrangements for heavy-duty rotating hammers. SDS-Plus and SDS-Max variations permit hub development, maximizing affect vitality exchange for predominant boring performance.

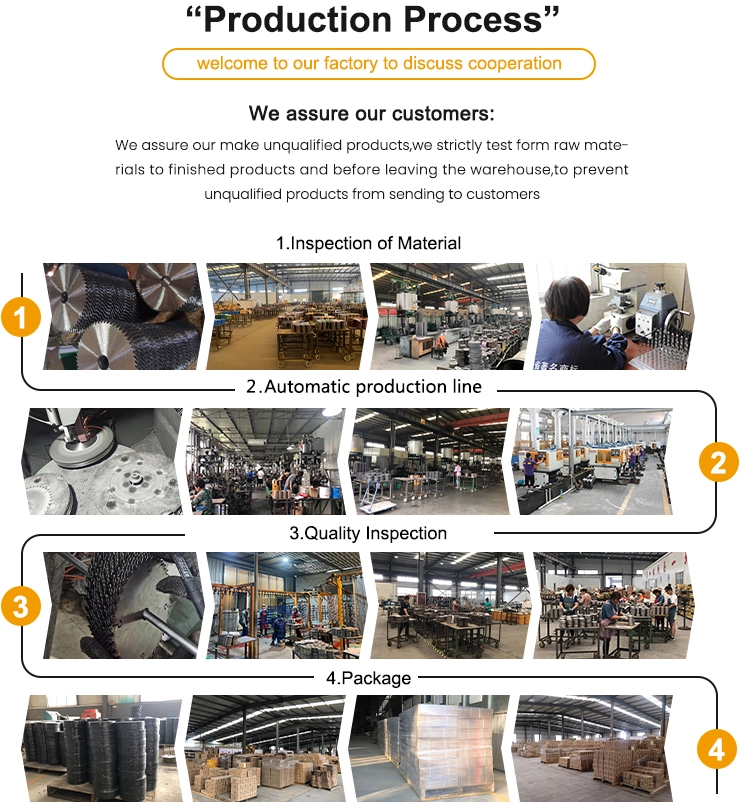

Production Process

Frequently Asked Questions

Q: What materials can these bore bits penetrate?

A: Our products are outlined for concrete, fortified concrete, brick, characteristic stone, cinder squares, and different brick work substrates. They're particularly designed to handle high-compressive-strength materials that would harm standard HSS bits.

Q: How do I select the rectify bit estimate for stay installations?

A: Select a bit breadth coordinating your grapple details. For chemical stays, keep up correct gap distance across necessities. For mechanical stays, take after producer resilience rules to guarantee appropriate extension and stack capacity.

Q: Can these bits bore through rebar in concrete?

A: Yes, our 4-cutter X-head plans particularly address rebar experiences. The numerous cutting edges anticipate sticking and keep up gap geometry indeed when cutting through inserted steel reinforcement.

Q: What's the anticipated life expectancy of these bits?

A: Life expectancy depends on application conditions, substrate hardness, and boring procedure. In standard concrete applications, anticipate 200-500 gaps per bit. Legitimate cooling and flotsam and jetsam clearing amplify instrument life significantly.

Q: Are these bits congruous with standard pound drills?

A: Completely. We offer straight shank forms for standard pound drills and SDS variations for rotational hammers. Coordinate the shank sort to your penetrating gear for ideal execution and security.

Our Packaging

Contact Us

Ready to enhance your drilling performance with Masonry Drill Bits? Contact our technical team at [email protected] for product specifications and customization options.
