How To Use A Flap Disc For Grinding?

To use flap discs for grinding, you need to attach the abrasive tool to an angle grinder, keep it at a 15–30 degree angle against the product, and apply mild pressure so that the overlapping cloth flaps can remove material consistently. This one-step approach gets rid of the need to switch between rough grinding wheels and smooth finishing discs, which saves time and keeps operators from getting tired. Knowing the right way to use the tool, follow safety rules, and choose the right disc will help you get the best results when cleaning up after welding, mixing surfaces, and deburring. This will also help your tools last longer and give you a better finish.

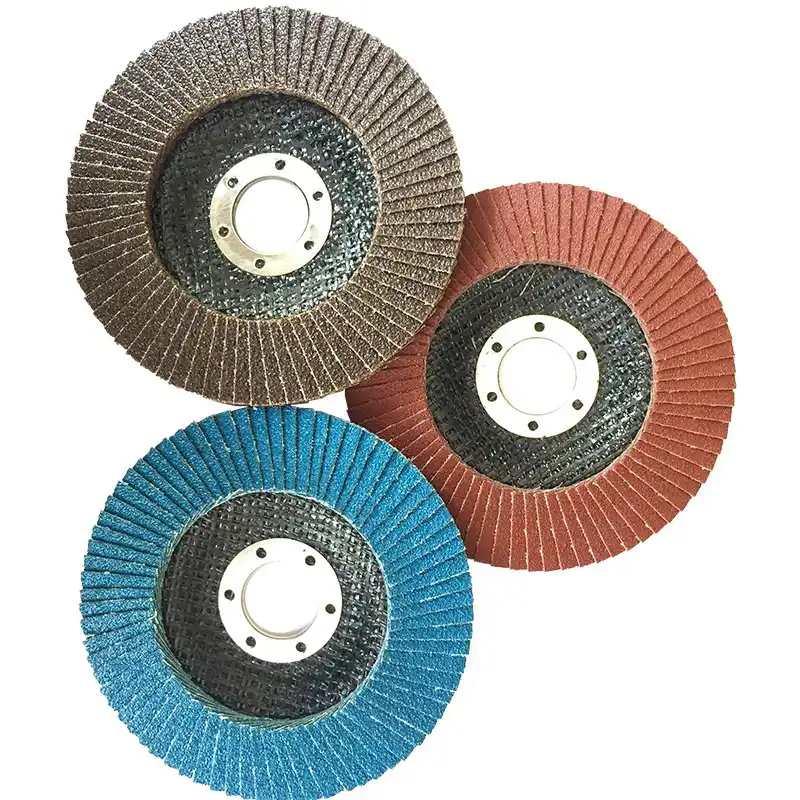

Understanding Flap Discs and Their Uses

The business world has changed a lot in favor of rough solutions that combine many tasks into easier-to-understand processes. Flap discs are a great example of this growth because their unique circular flap design lets them remove stock while still being precise when finishing. Instead of fixed bonded wheels, these tools have overlapping pieces of coated abrasive cloth that are bonded to fiberglass or nylon backing plates. This makes a flexible contact surface that can bend to fit different object shapes.

Fabrication shops that work with metal like these tools because they can be used on carbon steel, stainless steel, and aluminum. They are used by construction teams to prepare solid steel and get rid of weld seams. Automobile shops use them to shape the metal and get the paint ready. This wide range of uses comes from the controlled wear mechanism—as the upper flap layers wear away, new sharp grains keep showing up, keeping the cutting rate constant over the service life.

Comparing Performance Against Traditional Abrasives

When you look at head-to-head comparisons, the practical benefits become clear. Grinding wheels are great at aggressively removing material, but they leave rough areas that need to be finished again. Wire brushes are good at cleaning surfaces, but they aren't very good at removing small pieces of stock. Standard grinding discs make smooth surfaces, but they aren't strong enough for heavy-duty jobs.

Flap discs fill in these gaps by making surfaces smoother and giving them Ra values that are good for paint bonding while still having good remove rates. When compared to stiff wheels, the flexible flap design greatly reduces vibration, which lowers the risk of hand-arm vibration syndrome during prolonged use. The natural flow of air between the flaps helps heat escape, which keeps stainless steel from turning colors when heated, which is a very important issue when making medicinal equipment.

Material Compositions and Their Applications

The expert market is mostly made up of three main types of coarse grain. Zirconia alumina is tougher than regular aluminum oxide, which is why it is used so often in ships and structural steel workshops to work with carbon steel. Even when the tool is being ground under high pressure, the self-sharpening features keep the cutting action active.

Ceramic alumina uses micro-fracturing technology, in which the grains break down into sharp cutting points instead of becoming dull. When working with heat-sensitive materials, like titanium alloys for making airplane parts or stainless steel for making vessels, this method is very important to keep the metal's purity.

Aluminum oxide formulations are inexpensive ways to do basic upkeep on wood, softer metals, and metals. Job shops that work with a wide range of materials usually keep a number of different grain types on hand to get the best results on all of their projects.

Step-by-Step Guide: How to Use a Flap Disc for Grinding

Putting a flap discs on your grinder and turning it on are not enough to get professional results. The right method saves both the user and the workpiece, and it also makes the tool more useful and extends its life.

Safety Measures and Personal Protective Equipment

There are many risks involved in industrial grinding that need to be protected against in a thorough way. Operators must wear safety glasses with side covers that meet ANSI Z87.1 standards before they start grinding. This is to protect their eyes from flying particles. Face guards add extra safety when big stock is being removed, when the spark volume goes up a lot.

When using angle grinders for long periods of time, the noise levels regularly reach 85 decibels, so you need to wear hearing protection. Hands are protected from sharp edges and heat by leather gloves. However, workers should avoid types that are too loose because they could get caught in machinery that is turning. Wearing respirators is important when grinding metal materials, painted surfaces, or working in small areas where the concentration of particles builds up quickly.

Work areas need to have enough air flow and places that are clear of anything that could catch fire. Sparks can move surprisingly far. To avoid fire risks, keep at least 35 feet of space between sparks and flammable materials.

Angle Grinder Compatibility and Installation

Choosing equipment that works well together is the first step in running a good grinding business. Flap discs can be attached to angle grinders of all sizes, from small 4-inch models to strong 7-inch models. The highest RPM that is written on each disc must be the same as or higher than the speed that your grinder can handle. If you run the discs faster than their estimated capacity, they could fail catastrophically.

Type 27 flat shape discs can be used in places where touch angles need to be shallow, between 0 and 15 degrees. For mixing, finishing flat surfaces, and final surface preparation before painting, these are the best tools for the job.

Type 29 cylindrical discs have flaps that are 15 to 25 degrees off of the backing plate. Because of this shape, they have the most surface contact area during forceful grinding, which makes them better for getting rid of welds, chamfering edges, and shaping curvy surfaces.

For installation, grinders must be turned off and unplugged totally. Thread-on discs need to be put on the spindle and then the lock nut needs to be tightened with a wrench. A simple twist-lock device is used in quick-change methods. Before putting in new discs, you should always check the backing plates for cracks or other damage.

Recommended Grinding Techniques

Body position is the first step in using the right method. To control how the grinder reacts to pressure, stand on firm ground and keep your balance. To keep the tool from kickbacking, hold it tightly with both hands on the main handle and the side support grip.

Place the disc about 20 to 30 degrees from the top of the object while removing stock. At this point, more than one flap can touch at the same time, but the backing plate won't touch the work. Too much pressure actually makes things less efficient because it loads the abrasive bits with material instead of letting them cut neatly. Let the weight of the tool do most of the work; only add mild force when needed.

Keep moving the grinder with flap discs slowly across the surface of the work in smooth, overlapped strokes. Living in one place for a long time causes too much heat and makes low spots or gouges. The self-sharpening grain technology works best when workers keep the motion steady and apply modest pressure.

When moving on to finishing processes, lower the contact angle to 10 to 15 degrees. This flatter method spreads contact over a larger flap surface area, making the blending easier and getting rid of the thicker scratch pattern that comes from grinding too hard.

Common Errors and How to Avoid Them

When sharp grains wear down without breaking, new cutting edges show through. This is called glazing. This usually happens when you don't put enough pressure on backing materials that are too hard or when you use fine grits for big stock removal jobs. This problem can be fixed by adding a little more power or choosing coarser grinds.

When the disc gets too hot, it causes staining on stainless steel pieces or a burning smell from the backing plate. This means that there was too much rest time, not enough air flow, or worn holes that let the backing material show. Keep moving the grinder and change the discs before the flaps are completely worn down.

When workers hold the disc at different angles or put pressure on one edge, the wear patterns become uneven. This shortens the life of the disc and makes the surface treatments less consistent. This habit-based mistake can be fixed by paying close attention to keeping consistent touch.

Choosing the Right Flap Disc for Your Needs

Purchasing choices have a direct effect on how well operations run and how much they cost in the end. When engineering teams know the technical specs that affect speed, they can choose the best solutions for the variety of applications they work on.

Grit Size Selection and Surface Finish Impact

According to the ANSI standard, grit sizes are given with lower numbers meaning larger grains and higher numbers meaning smaller particles. The choice has a direct effect on the rate of material removal and the roughness of the finished surface.

Coarse sizes between 36 and 40 are good for strong deburring, quickly removing heavy welds, and reducing stock. These make larger scratch marks that are 150 to 250 Ra microinches wide, so they need to be finished more than once for uses that need smooth surfaces.

Medium sizes, which are between 60 and 80, work well for most manufacturing tasks. They take small amounts of material while making surfaces that can be used in a wide range of industrial settings. 60-grit zirconia discs are often used by companies that make stainless steel vessels to blend TIG weld gaps without removing too much base metal.

Fine grits between 80 and 120 are great for finishing surface preparation, getting rid of small flaws, and making finishes that are 60 to 100 Ra microinches smooth and ready to paint. These grits are used a lot in auto body shops to shape panels before paint is applied.

Material Composition Comparison

Besides choosing the right grit for flap discs, the type of gritty grain material has a big impact on how well it works and how much it costs. Zirconia alumina is the best material for making structure steel and pipelines because it lasts a very long time when working with carbon steel. The structure of the grains doesn't break apart when under high pressure, which makes the disc last longer in tough situations. When working on regular steel manufacturing projects, job shops like how cost-effective the product is compared to how well it works.

Ceramic alumina is a high-end technology made for materials that are sensitive to heat and long production runs. The micro-fracturing device keeps making sharp cutting points, so the rate of removal stays the same as the disc breaks down. Manufacturers of aerospace parts that work with titanium alloys or Inconel superalloys ask for ceramic formulas to keep the qualities of the materials while meeting strict tolerance requirements. In high-volume production settings, the longer service life often makes up for the higher unit cost.

Aluminum oxide is a cheap way to work with soft materials like aluminum, brass, and wood. These versatile choices are kept on hand by maintenance teams that do a variety of repair jobs for general grinding needs that don't require specialized performance.

Supplier Reliability and Bulk Purchasing Advantages

Production interruptions can be avoided by building relationships with makers who offer consistent quality and reliable shipping schedules. Companies that make a lot of products every day show that they can handle big sales without having to wait for long lead times.

Our 77,000-square-meter factory at Danyang Ebuy Tools is run by 319 skilled workers who make about 150,000 cutting tools every day. This production scale makes sure that there is enough inventory for pressing orders and for planned repair programs that deliveries can happen on time. When there are minimum order amounts that allow for unique production runs, our Research and Development department works with clients to come up with custom formulations.

When you buy in bulk, you save money in ways that go beyond unit price. Shipments that are grouped together save money on freight costs per piece, and consistent product specs get rid of the performance differences that happen when you buy from different sources. When procurement teams make supply deals with manufacturers that can meet their yearly volume needs, they can plan their budgets more accurately.

Best Practices and Safety Tips for Professional Use

For grinding activities to last, safety, maintenance, and operating procedures need to be planned in a way that protects workers and improves tool performance.

Establishing Safety Protocols and Training Programs

Comprehensive training programs for flap discs must teach both how to use tools and how to spot hazards. New operators should go through guided training that teaches them how to position their bodies correctly, handle tools with two hands, and avoid kickback. Regular refresher training helps people keep good habits and learn about new safety measures as they come out.

Safety rules should require that tools be inspected before use to make sure that guards are not destroyed and that discs are mounted securely and that the grinder works properly. Work area reviews make sure there is enough light, air flow, and space between objects that can catch fire. Near-miss events that show process flaws before they cause harm are recorded by incident reporting systems.

The steps to take in an emergency must be marked clearly and practiced often. Operators need to be able to get to first aid materials, eyewash stations, and fire-fighting gear right away. Setting up these structured defenses shows that the company cares about worker safety and lowers its risk of being sued.

Maintenance Routines to Extend Tool Lifespan

When stored correctly, sharp materials are kept safe from damage from the surroundings. Changes in humidity and temperature make fiberglass backing plates and resin bonds less strong. Keeping storage areas between 65°F and 75°F and between 40 and 60% relative humidity helps keep products' quality. Using the first-in, first-out rule to rotate stock keeps it from sitting on the shelf for longer than the suggested three years.

Regular cleaning grinding equipment stops material growth that causes vibration and unbalance. Metal bits are removed from grinder housings and ventilation holes by compressed air. This keeps the cooling airflow going properly. Electrical safety is maintained by checking power lines for harm and checking ground fault protection.

By noticing signs of wear, you can change the discs before the safety gaps get too small. When the rough cloth breaks down to within 1/4 inch of the backing plate, flap discs should be thrown away. If you keep using it after this point, the backing plate could touch the object, which would create too much heat and could cause the disc to break. If you notice any strange vibrations, changes in the sound, or damage that you can see, it means that you need to replace it right away.

These preventative maintenance steps keep unexpected downtime to a minimum and make sure that the grinding performance stays the same throughout production runs.

Conclusion

When you learn how to grind properly, flap discs go from being simple mechanical tools to strategic assets that boost output and product quality. Compared to traditional grinding wheels, the overlapped flap design has special benefits because it combines stock removal and finishing tasks into one step. It also lowers vibrations and operator tiredness. The best performance is achieved by choosing the right grain types, grit sizes, and disc configurations for the materials and uses.

Safety rules that make sure workers are protected by the right PPE, regular equipment checks, and knowing about potential dangers are necessary for operations to last. When making purchases, it's better to look at the total cost of ownership, source stability, and the benefits of buying in bulk rather than just unit price. This will save you money in the long run. Setting up regular maintenance processes and replacing discs at the right wear places extends the life of a tool and stops quality problems or safety incidents. When industrial teams use these concepts, they regularly get better surface finishes and more efficient workflows.

FAQ

What safety equipment do I need when using flap discs for grinding?

When grinding covered materials, operators need to wear safety glasses with side shields that meet ANSI Z87.1 standards, full face shields when grinding heavily, hearing protection that can handle 85 decibels or more, leather work gloves, and breathing protection. Make sure there is enough air flow and keep burning objects 35 feet away. Never use a grinder without making sure the safety guards are properly fitted.

Which flap disc type works best for removing weld seams on stainless steel?

The best result is achieved with Type 29 circular discs that have zirconia or ceramic alumina grains in the 40–60 grit range. The curved flap shape makes the contact area bigger for forceful removal, and the ceramic grains keep heat from building up and discoloring the material. To keep the corrosion-resistant features of stainless steel, keep contact angles between 20 and 30 degrees and constant motion.

How do I know when to replace my flap disc?

When the rough cloth goes down to within 1/4 inch of the backing plate, when you hear or feel strange vibrations, or when you can see cracks in the backing material, it's time to replace the discs. If these warnings are ignored, the backing plate could come into touch with workpieces, creating too much heat that could cause the disc to break.

Partner with Ebuy Tools for Superior Grinding Solutions

Danyang Ebuy Tools is a reliable company that makes flap discs for precision machine shops, automakers, and aircraft engineering firms all over North America. Zirconia and ceramic alumina formulations made by our advanced grain engineering have a longer service life and uniform cutting performance even during difficult production cycles. Our 77,000-square-meter factory makes 150,000 units every day, so we have a stable collection that can meet both standard and custom requirements.

Together with procurement workers, our expert team chooses the best disc configurations for your materials and uses. Our quality control systems make sure that every product meets international performance standards, and our bulk buying programs give us a competitive edge. Get in touch with our technical support team at [email protected] to talk about your grinding needs and find out how our flap discs supply services can help your business run more smoothly.

References

American National Standards Institute. (2020). "Safety Requirements for Grinding Machines and Abrasive Products." ANSI B7.1 Standard.

Fabricators & Manufacturers Association International. (2019). "Abrasive Selection Guide for Metal Fabrication Operations." Technical Publication Series.

Industrial Safety & Hygiene News. (2021). "Reducing Hand-Arm Vibration Syndrome in Metalworking Operations." Occupational Health Research Study.

Society of Manufacturing Engineers. (2018). "Advanced Abrasive Technologies for Precision Grinding Applications." Manufacturing Engineering Handbook.

Welding Institute. (2022). "Surface Preparation Standards for Welded Stainless Steel Components." TWI Technical Guidelines.

National Institute for Occupational Safety and Health. (2020). "Engineering Controls for Grinding Operations: Dust and Particulate Management." NIOSH Publication Series.
