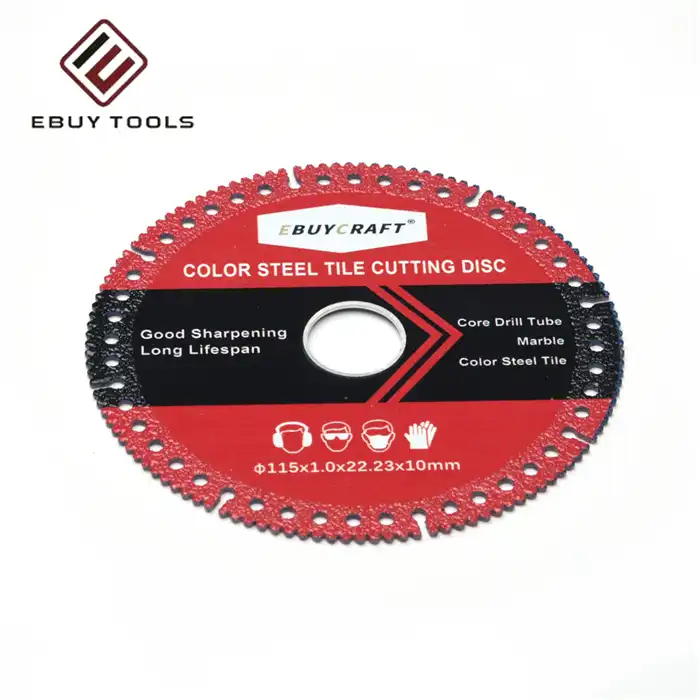

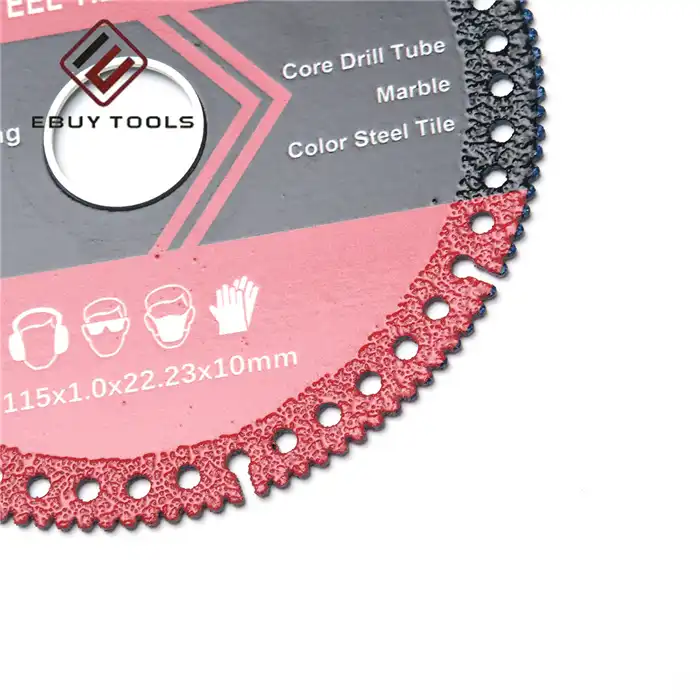

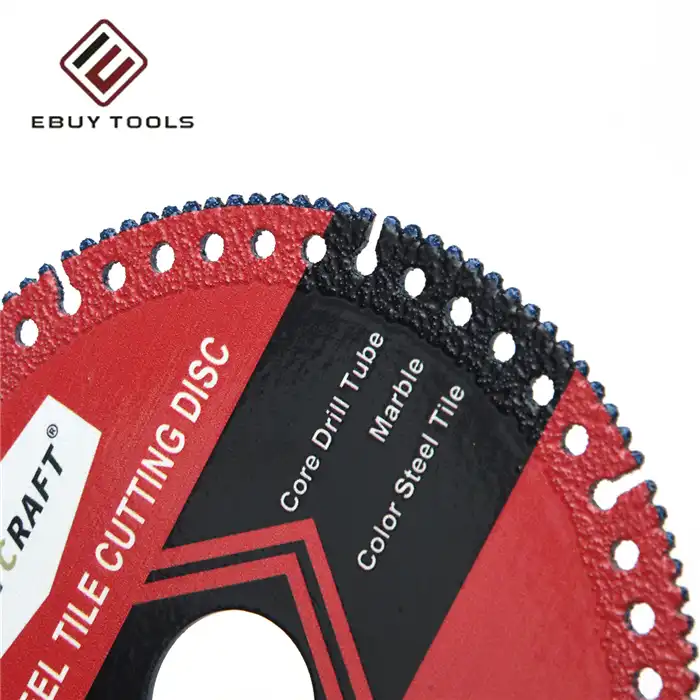

Brazing Saw Blade
Scope of application:
1.For smooth cutting, chamfering and grinding of glass, jade, crystal, wine bottle, ceramics, ceramic tiles and other materials.
2.Chip free cutting

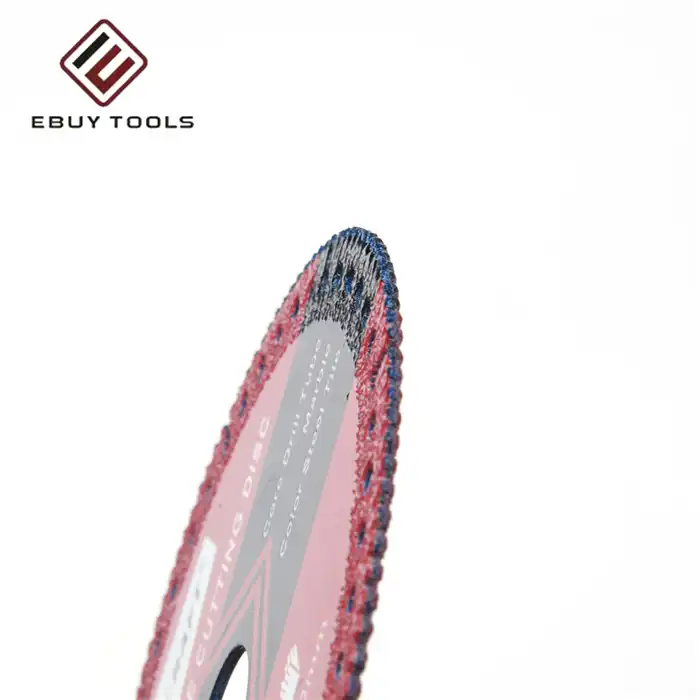

The 1mm ultra-thin saw blade does not damage the surface of the object, with uniform grinding force and good flatness. Low grinding noise, less dust, less debris, cutting first-class!
3.Easy to use
Designed for 100 angle grinder, it is easy to install and use, and can withstand the requirements of dry / wet cutting and long-time continuous cutting.
4.Advanced materials
It adopts diamond,new brazing process, upgraded and improved blade, which is more convenient, safe and has a longer service life.
Professional Brazing Saw Blade: Advanced Vacuum Brazing Technology for Universal Cutting
Danyang Ebuy Tools Co., Ltd. delivers enterprise-grade Brazing Saw Blade solutions engineered with vacuum brazing technology. Our 77,000 square meter facility produces 150,000 diamond saw blades daily, leveraging 319 skilled employees and advanced manufacturing systems. Each product achieves 70-80% diamond exposure height through metallurgical bonding at 900°C, delivering superior performance with HRC 35-45 matrix hardness. Our cutting tools eliminate premature diamond pull-out while maintaining consistent cutting speeds across mixed materials without water cooling requirements.
Our Factory
What Makes Our Brazing Saw Blade Superior?
Unlike traditional cutting tools, our product utilizes vacuum brazing technology that creates a chemical metallurgical bond between synthetic diamond grits and the steel core. This advanced manufacturing process uses Ni-Cr-B alloy filler metal to establish connections that far exceed electroplated alternatives.
The key difference lies in the bonding method. While electroplated blades rely on mechanical locking and sintered blades use powder matrix embedding, our brazing process forms hard carbides (Cr-C, Cr-B) that anchor diamonds securely. This prevents the glazing effect common in sintered bonds and eliminates grit stripping issues found in electroplated tools.
Our Certificate
Technical Specifications
|
Parameter
|
Specification
|
|
Bonding Technology
|
Vacuum Brazing
|
|
Operating Temperature
|
Up to 900°C
|
|
Diamond Exposure
|
70-80% of particle diameter
|
|
Matrix Hardness
|
HRC 35-45
|
|
Steel Core Material
|
SAE 1050/1070 or 75Cr1
|
|
Filler Metal
|
Ni-Cr-B Alloy
|
|
Wetting Angle
|
<90 degrees
|
|
Bond Strength
|
Metallurgical grade
|
Why Choose Us
Key Applications and Industries
Emergency Rescue and Demolition
Fire departments and demolition professionals rely on our brazing saw blades for all-cut requirements. These tools cut through composite barriers containing steel rebar, bulletproof glass, aluminum, and concrete simultaneously in dry conditions without tool changes.
Foundry and Metalworking Operations
Our product excels in B2B foundry environments. The specialized design withstands chemical affinity between iron and diamond better than sintered alternatives. It cuts gray iron and ductile iron risers efficiently while preventing glazing issues.
Construction and Composite Materials
These blades handle PVC pipe, fiberglass, car body panels, and reinforced plastics effectively. High diamond exposure prevents material melting and blade gumming, common problems with resin or sintered blades.
Stone and Ceramic Applications
For dry-cutting ultra-compact surfaces, porcelain pavers, and quartzites, our brazing technology provides fast stock removal without chipping. This makes them ideal for water-restricted environments where heat buildup is a concern.
Exhibition
Performance Advantages
Our cutting apparatuses provide greatly tall chip expulsion productivity through huge chip pockets made by jewel bulge. The metallurgical bond interface offers shear quality essentially higher than electroplating methods.
The all inclusive plan keeps up steady cutting speeds over distinctive materials without requiring water cooling. This flexibility makes our product perfect for mixed-material applications where customary bonds fall flat due to warm or loading.
Quality fabricating guarantees each edge meets strict wetting point prerequisites, ensuring genuine metallurgical holding between jewel particles and the steel core.

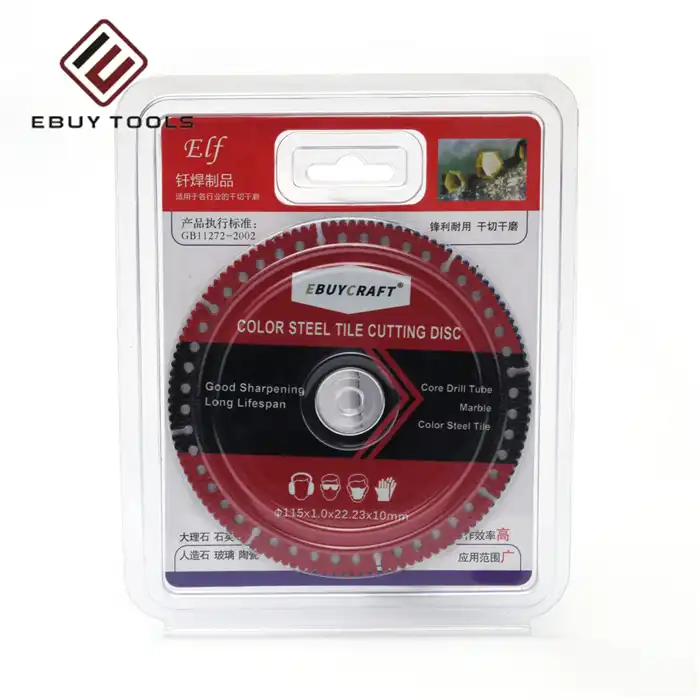

Our Packaging
Frequently Asked Questions
Q: How does brazing innovation vary from other jewel edge fabricating methods?
A: Brazing makes a chemical metallurgical bond at tall temperatures, not at all like electroplating (mechanical locking) or sintering (powder framework). This comes about in more grounded jewel maintenance and way better warm resistance.
Q: Can these edges cut numerous materials without changing tools?
A: Yes, our items are planned for widespread cutting. They handle steel, concrete, aluminum, and composite materials in single operations without execution degradation.
Q: What makes these edges appropriate for dry cutting applications?
A: The tall jewel introduction (70-80%) and metallurgical holding permit productive cutting without water cooling. Warm resistance up to 900°C avoids bond softening amid supported operation.
Q: How long do the items regularly final compared to alternatives?
A: The prevalent jewel maintenance and disposal of untimely pull-out essentially expands edge life, particularly in difficult fabric cutting applications.
Q: Are these edges reasonable for both proficient and DIY use?
A: Whereas designed for proficient applications, their flexibility and solidness make them great for requesting DIY ventures requiring multi-material cutting capability.
Why Choose Danyang Ebuy Tools?
Our broad fabricating capability guarantees dependable supply for worldwide showcase requests. With our committed R&D office and exacting quality control frameworks, we keep up tall item guidelines whereas creating customized arrangements for particular client requirements.
Every edge experiences comprehensive quality reviews amid generation and pre-shipment checks. Our defensive bundling guarantees items reach you in culminate condition, supported by comprehensive guarantee scope and committed client back.
Contact Us
Ready to experience superior cutting performance with Brazing Saw Blade? Contact our team at [email protected] for customized solutions and pricing information.
