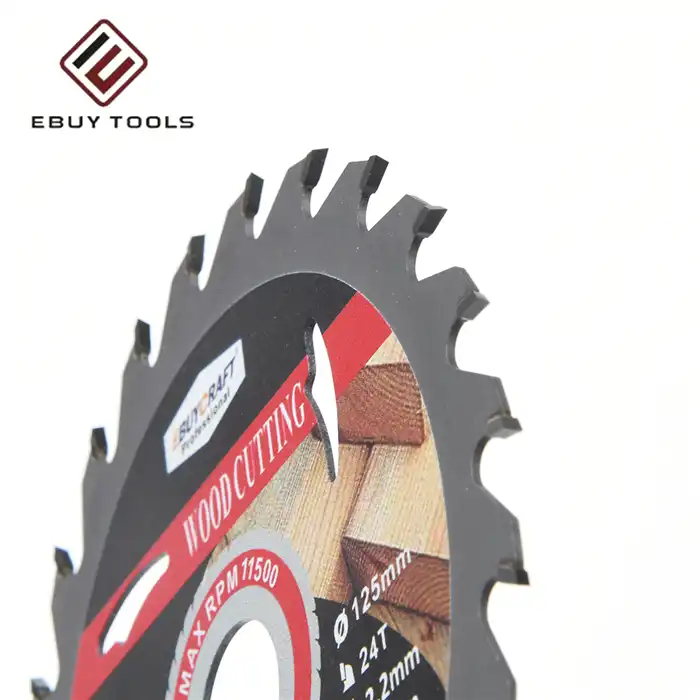

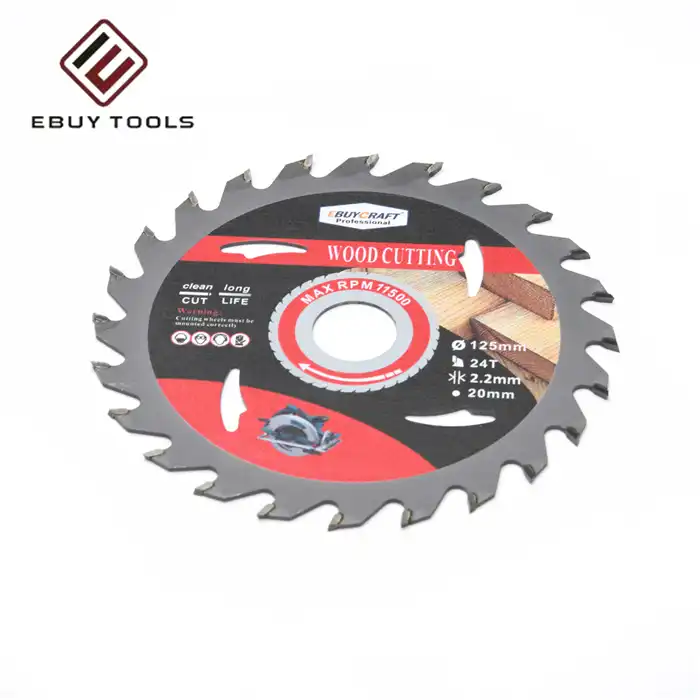

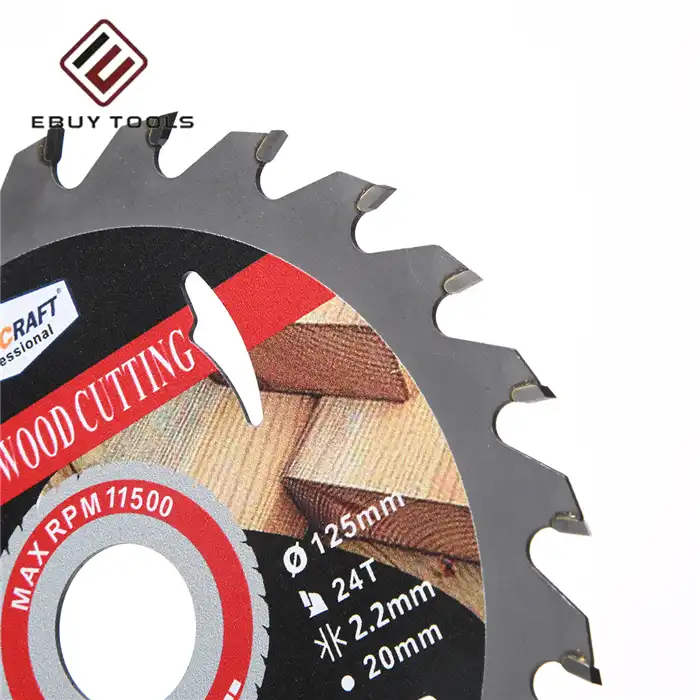

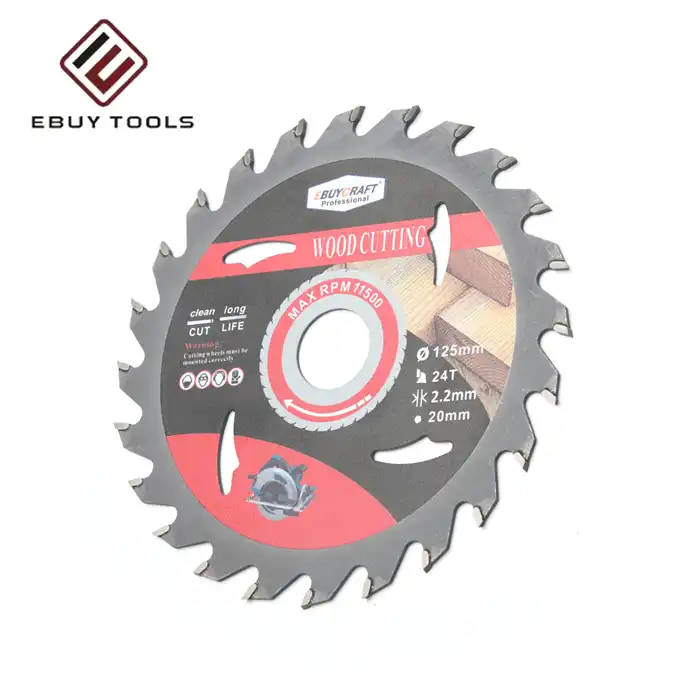

TCT Circular Saw Blade For Wood

TCT Circular Saw Blade For Wood - Professional Cutting Solutions

Danyang Ebuy Tools' TCT Circular Saw Blade For Wood combines Tungsten Carbide technology with precision engineering for industrial-grade performance. Our composite cutting tools feature ultra-hard carbide teeth brazed onto laser-cut alloy steel bodies, delivering operational lifespans 10-20 times longer than standard steel blades. With a daily production capacity of 150,000 pieces across our 77,000 square meter facility, we serve global markets through 319 skilled employees and rigorous quality control systems. Each blade withstands temperatures up to 800°C without hardness loss, eliminating heat checking and premature dulling during high-speed operations.

Our Factory

What Makes Our TCT Circular Saw Blade For Wood Superior?

Our tungsten carbide tipped blades solve critical woodworking challenges through advanced metallurgy and precision manufacturing. The steel plate maintains 42-46 HRC hardness for tension stability, while carbide tips achieve 90-93 HRA hardness to resist abrasive materials.

Key Performance Features:

· Sintered tungsten carbide and cobalt matrix construction

· Stress-relieved expansion slots prevent warping

· Precision grinding geometries for clean cuts

· DIN 8083 and ISO compliance standards

· Micron-level bore tolerances (H7 grade)

The synergy between our steel plates and carbide tips ensures superior heat dissipation and dimensional stability. Lower cobalt percentages provide higher hardness for finishing applications, while increased cobalt content delivers impact toughness for heavy ripping operations.

Our Certificate

Professional Applications Across Industries

Industrial Sawmill Operations

Heavy-duty multi-rip machines rely on our Flat Top Grind (FTG) blades with aggressive hook angles exceeding 20°. Sub-micron grade carbide withstands high feed rates and knot impacts during longitudinal ripping of green logs.

Precision Furniture Manufacturing

Triple Chip Grind (TCG) and High-Alternate Top Bevel (Hi-ATB) geometries excel at cutting melamine-faced chipboard and MDF. These configurations reduce chipping on double-sided laminates while maintaining clean edges.

Construction and Carpentry

General-purpose blades with Alternate Top Bevel (ATB) configuration balance cutting speed and surface finish. Perfect for framing lumber, plywood, and hardwood decking without requiring frequent blade changes.

Our TCT Circular Saw Blade For Wood adapts to varying user feed rates while resisting impact damage from knots and embedded debris.

Technical Specifications

Parameter	Specification
Body Hardness	42-46 HRC
Tip Hardness	90-93 HRA
Temperature Resistance	Up to 800°C
Carbide Grade	K10-K20 ISO
Steel Body Material	75Cr1/SKS51 Alloy
Bore Tolerance	H7 Grade
Compliance Standards	DIN 8083, ISO Guidelines
Resharpening Cycles	5-10 Times

Our Exhibition

Choosing the Right Tooth Configuration

Tooth Count Guidelines:

· 18-24 Teeth: Large gullets clear chips efficiently during ripping operations

· 40-50 Teeth: Balanced performance for general-purpose cutting

· 60-90 Teeth: Fine finish for cross-cutting applications

Geometry Selection:

· ATB (Alternate Top Bevel): Natural woods requiring smooth fiber cuts

· TCG (Triple Chip Grind): Abrasive laminates and composite materials

· FTG (Flat Top Grind): Heavy-duty ripping in industrial settings

Our Packaging

Quality Assurance and Manufacturing Excellence

Our R&D department continuously develops customized solutions while maintaining stringent quality control throughout production. Every blade undergoes precision grinding and balancing to minimize vibration and material waste.

Production Quality Features:

· Random sampling inspections before shipment

· Protective packaging ensuring perfect delivery condition

· Industry certification compliance upon request

· Continuous monitoring during manufacturing processes

Production Process

Frequently Asked Questions

Q: How do I select between ATB and TCG teeth on my product?

A: ATB geometry works best for characteristic woods, separating strands cleanly for smooth wraps up. TCG secures carbide tips when cutting thick, rough materials like covers and molecule board.

Q: Why does my edge burn the wood amid cutting?

A: Burning ordinarily comes about from gloomy carbide tips, gum buildup diminishing clearance, or off base nourish rates. Clean your edge to begin with, at that point check sharpness and alter cutting speed.

Q: Can TCT edges be resharpened professionally?

A: Yes, quality edges can be resharpened 5-10 times utilizing CNC pounding gear. Proficient resharpening keeps up unique geometry and adjust specifications.

Q: What's the contrast between lean kerf and full kerf designs?

A: Lean kerf evacuates less fabric and requires lower drive, perfect for underpowered saws. Full kerf gives more noteworthy soundness and diminished diversion amid heavy-duty cutting.

Q: How does tooth number influence cutting performance?

A: Lower tooth tallies (18-24) empower quick chip clearance amid tearing. Higher tooth checks (60-90) deliver better wraps up for cross-cutting but require slower bolster rates.

Contact Us

Ready to upgrade your cutting performance with TCT Circular Saw Blade For Wood? Contact our experts at [email protected] for customized solutions and technical support.
