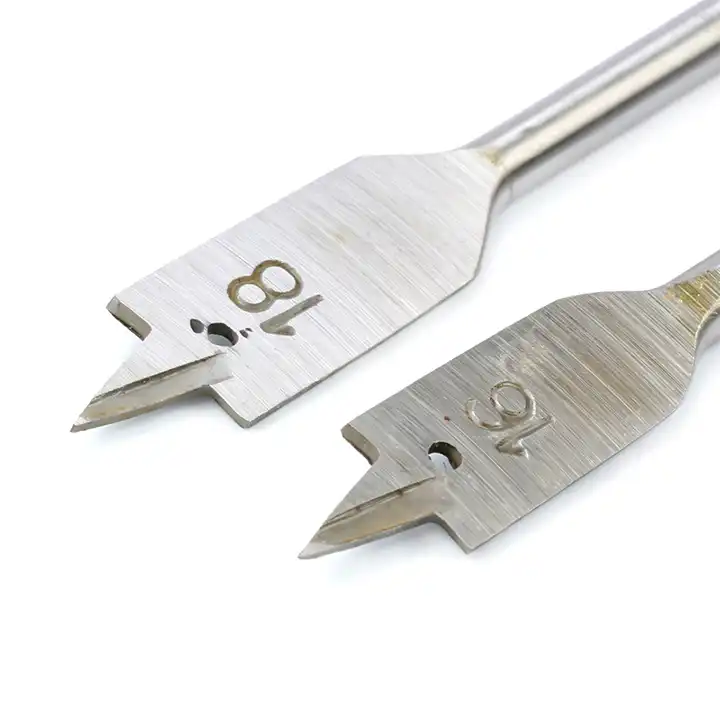

The cutting edge geometry of wood flat drill bits refers to the specific angular configuration and spatial arrangement of cutting surfaces that enable efficient material removal. A typical flat drill bit for wood features a central pilot point for accurate positioning, dual lateral cutting lips set at optimized angles, and outer spurs that score wood fibers before extraction. This planar design contrasts with helical twist bits, prioritizing rapid boring speed over finish quality. The geometry includes a chisel edge at the center, two main cutting edges angled between 15 and 25 degrees, and peripheral spurs positioned to minimize tear-out during penetration and exit phases.
Understanding this geometry becomes crucial when procurement managers evaluate tooling for high-volume operations. The simplified structure reduces manufacturing complexity while delivering predictable performance across softwood and engineered lumber applications. This design philosophy addresses the core tension between production speed and hole precision that defines rough-in woodworking environments.
Understanding the Cutting Edge Geometry of Wood Flat Drill Bits
Core Geometric Components
There are three functional zones inside a flat drill bit for wood that work in a certain order. The center pilot point, which is usually about 2 to 3 mm long, makes contact and stops the spindle from moving laterally during engagement. The chisel edge is behind this. It is a cross-shaped cutting surface that scrapes instead of cuts through material. This part has the most resistance and heat buildup, so its angle is very important for the overall torque needs.
The main cutting lips stick out at multiple angles, mixing radial relief and axial rake. Most professional-grade bits keep their rake angle at 20 degrees to balance how hard they cut with how long the edge lasts. The outer spurs act as pre-cutters, making a line around the hole before the main lips take material out. This step-by-step process cuts down on exit-side blowout by a large amount, especially when drilling through plywood or layered materials where the fiber direction changes quickly.
Material Selection and Geometry Interaction
High carbon steel is still the most common material for flat drill bits for wood because it keeps its strength and absorbs shocks well. When you heat something to 48–52 HRC, it makes a martensitic structure that keeps its sharp edges even after being hit many times and doesn't break in a big way. The titanium-nitride finish that is put on high-end bits lowers the coefficient of friction by about 40%. This directly increases the life of the cutting edge in rough materials like MDF or particle board.
The geometric shape is directly linked to the metal's qualities. When cutting through harder materials, the cutting edges can be thinner and have sharper angles, which speeds up the penetration. On the other hand, profiles made of softer alloys need to be thicker to keep them from deforming when they are loaded. This connection explains why economy bits usually have blunter shapes: not just to save money, but also to make up for lower-quality steel that can't handle sharp angles without breaking too soon.
Geometric Differentiation from Alternative Bit Types
When compared to Brad Point bits, which focus on centering accuracy through longer pilot spurs, Flat Drill Bits for Woods give up accuracy in initial placement in favor of faster digging. The brad point's outer rim spurs remove material in a full circle before the center does so. This makes very clean entry holes but also higher torque loads. Auger bits have helical flutes that cut through wood without any help from the user. However, they need three times as much rotating force as Flat Drill Bit For Woods.
This physical simplicity leads to real benefits in how things work. Electrical contractors who drill a lot of stud pass-throughs every day can save money on batteries because the open paddle design needs less spindle power than enclosed helical profiles. The difference shows up in the quality of the holes: a Forstner bit makes surfaces that are good enough for furniture, while a Flat Drill Bit For Wood makes holes that are practical and best for hidden uses.
Types and Variations of Flat Drill Bits for Wood and Their Geometry Differences
Standard Paddle Bits vs. Enhanced Spur Designs
In traditional Flat Drill Bit For Woods, the cutting edges are simple and there are no special fiber-scoring features. These inexpensive versions work well with construction-grade softwoods where the finish is not very important. Better designs, like the professional-grade ones from Ebuy Tools, have raised spurs that are placed 0.5 mm ahead of the main cutting plane. This small change to the geometry changes the cutting sequence fundamentally: spurs cleanly cut surface fibres before the main edges apply extractive forces.
The performance delta can be measured in work settings. When feed rates are low, standard bits work fine, but when workers speed up the drilling to meet schedules, they cause noticeable tear-out. Versions with spurs keep holes solid over a wider range of operating conditions, which cuts down on rework and material waste. This benefit makes up for the small cost increase for contractors who manage measures for labor productivity.
Geometry Adaptation for Hardwood vs. Softwood Applications
The best cutting shape is directly related to the mass of the wood. Pine and fir are examples of softwoods that have smaller amounts of lignin and more uniform grain structures. For these kinds of materials, Flat Drill Bit For Woods can have higher rake angles (up to 25 degrees) and smaller cutting lips, which increases the speed of penetration without hurting the edges. Larger-diamea flat drill bit for woodn battery-powered drills because the cutting forces aren't too high.
Geometric sacrifices are needed for hardwood uses. Dense species, like oak and maple, have a lot more cutting resistance and abrasive wear. When professional bits are used in mixed-use areas, they lower the rake angles to 15 to 18 degrees. This slows down the cutting process but makes the edge last longer. During deep digging operations, the paddle thickness is often increased by 20 to 30 percent to make the structure more stiff and stop the blade from bending, which would affect the straightness of the hole.
Specialized Geometry for Engineered Wood Products
Modern buildings use engineered lumber like LWL beams, glulam logs, and orientated strandboard more and more, which comes with its own set of problems. Adhesive resins in these materials speed up tool wear, and the alternating grain directions make it easier to tear out. In response, manufacturers have come up with mixed shapes that have flat drill bit-for-wood bodies brazed onto cutting edges that are tipped with carbide.
The carbide tips always have a hardness of 78 to 82 HRA, which is much harder than what heat-treated steel can do. This makes it possible to cut at very sharp angles that can go through areas with a lot of resin without dulling. The steel paddle body still has the shock-absorbing properties it needs to handle impacts with hidden fasteners or manufactured products that aren't consistent. This composite construction is a perfect example of how geometry and materials can work together to make modern building materials.
How Cutting Edge Geometry Influences Wood Drilling Performance
Direct Performance Correlations
The connection between geometric parameters and the results of drilling is based on well-known engineering principles. Chip creation is directly affected by rake angle. Positive rakes cause compressive stress ahead of the cutting edge, which makes continuous chips and smooth holes. Too much positive rake (more than 28 degrees) weakens the edge structurally, which causes it to chip off too soon. The relief angle keeps the following edge from rubbing against the freshly cut surface. Depending on the type of wood, the best numbers are between 8 and 12 degrees.
Testing data from workplace settings shows effects that can be measured. When drilling through 3/4-inch hardwood, flat drill bits for woods with spurs that have the right shape reduce edge splintering by 60–75% compared to bits without spurs. The same geometry improvement lowers the needed feed pressure by about 30%, which means that operators won't get as tired after long periods of use. In business settings, where labour costs are much higher than material costs, these measures are very important.
Operational Best Practices Derived from Geometric Design
The best operating conditions are determined by the cutting geometry. When the diameter is less than 25 mm, Flat Drill Bit For Woods work best at speeds between 1,200 and 1,800 RPM. When the diameter is bigger, they work better at speeds between 800 and 1,200 RPM. At these speeds, the rate of material loss is balanced against the production of heat, which becomes the main wear process. Too much speed leads to frictional heating, which removes the temper from the cutting edges. This softens the steel forever and speeds up the dulling process.
To keep chip shape correct, feed rate must match spinning speed. Too little feed pressure makes the material rub against the workpiece instead of cutting it, which creates heat without removing any useful material. Too much feed stresses the cutting edges beyond what they can handle, which leads to distortion and holes that aren't as straight. Professional operators learn to recognize the sound of good cutting: a steady, moderate-pitch tone without squealing or chattering. This sound shows that the geometry and operating parameters are correct.
Maintenance Requirements Based on Geometric Features
When compared to complicated helical bits, the open paddle form makes field servicing easier. Reconditioning cutting edges with diamond files or bench grinds works well as long as the original angle relationships are kept. The main cutting edges (keeping the factory rake angle) and the pilot point (keeping it centered and sharp to stop the walk during engagement) are the most important surfaces that need to be taken care of.
Maintenance on the spurs should be given extra attention because the quality of the surface depends on these delicate parts. Fine abrasive stones can be used for light honing to restore sharpness without taking away too much material. Operators shouldn't file the outside vertical walls of spurs because it makes the hole width smaller. When flat drill bits for wood are properly cared for, they can drill 500 to 800 holes in construction timber before they need to be reground by a professional. This is great for procurement departments that are keeping track of cost-per-hole metrics.
Choosing the Right Flat Drill Bit Geometry for Your Procurement Needs
Material Substrate Considerations
When it comes to general building tasks that involve drilling softwoods and sometimes hardwoods, high-speed steel types are the best value. The material works well with heat treatment and can handle the impact loads that are common in rough frame settings. Carbon steel flat drill bits for wood work work well enough for the price, but they wear out faster, so they should only be used for light-duty tasks or one-time use in places where resharpening facilities aren't available.
Carbide-tipped models cost more, but they work better than any other versions in industrial settings. The shape stays sharp even after thousands of holes are made in rough materials that would wear down HSS edges in just a few rounds. Instead of just looking at the acquisition price, procurement managers should figure out the costs over the whole life of an item. A carbide flat drill bit for wood that costs three times as much as an HSS bit but lasts ten times longer is a better deal because it cuts down on downtime for upkeep and tool changes.
Shank Configuration and Tool Compatibility
The 1/4-inch hex shank is now the standard for all Flat Drill Bit For Woods with a diameter of less than 32 mm. It has several physical benefits besides just being compatible with other tools. The hex shape stops the spindle from slipping when there is a lot of force, which stops the rotational slip that round shanks have when their chucks are worn out. The short distance between the chuck and the cutting edge reduces cantilever deflection, which makes the hole straighter, especially when deep boring is being used.
Larger diameter Flat Drill Bit For Woods usually have round shanks that are 3/8-inch or 1/2-inch in diameter. This gives them the structural rigidity they need for cutting forces that increase exponentially with diameter. These need special chuck systems, but they give you the mechanical edge you need for holes bigger than 38 mm. Specifications for purchases should match the shape of the shank to the tools that are available and take the operational envelope into account. For example, job sites that don't have corded drills can't use large-diameter bits effectively, even if the shapes are optimized.
Coating Technologies and Performance Enhancement
Surface treatments change the functional shape on a microscopic level, making surfaces that change the tribological qualities in a basic way. Titanium Nitride coats put down a ceramic layer that is 2 to 4 microns thick and makes it harder for steel and wood chemicals to stick together. This small change lowers cutting temperatures by 15 to 20 percent, which directly extends the life of the edge by slowing down the heating processes that soften steel.
Black oxide treatments don't offer as many benefits as PVD ceramic coatings, mostly just resistance to corrosion rather than performance improvement. However, they are much cheaper. When making the decision matrix, it should take into account the working conditions. For example, contractors who work with pressure-treated lumber can benefit a lot from coatings that resist corrosion, but contractors who drill kiln-dried interior framing can only benefit a little. Diamond-like carbon coatings are a new technology that has friction ratios lower than even TiN. However, their high cost means that they can only be used in a few specific commercial uses for now.
Future Trends and Innovations in Flat Drill Bit Geometry for Woodworking
Advanced Material Science Applications
Nanocrystalline carbide structures are being studied to make cutting edges that stay sharp for much longer periods of time. The grains in these materials are smaller than 100 nanometres, which makes the hardness distributions very even without the brittleness that comes with regular carbides. The geometry effects include making ultra-thin cutting edges that can cut through wood with little force and won't break when hit.
Composite building methods that were first used in aircraft are now being used in woodworking. Sandwich designs with tough, wear-resistant faces attached to tough, shock-absorbing cores meet the needs of different types of materials in the best way possible. This makes geometric shapes possible that weren't possible with solid materials before. For example, very sharp cutting angles are made possible by internal structures that are designed to take on twisting and bending loads without sending them to the cutting surfaces, which would become damaged.
Integration with Automated Manufacturing Systems
For factories to be ready for Industry 4.0, they need tools that can connect to digital tracking systems. Flat drill bits for wood shanks now have sensors that track temperature, rotational speed, and feed force in real time. These sensors send data streams that improve geometric performance. Automated systems change the working settings on the fly to keep chip formation at its best, even if the wood density varies from board to board.
The effects of geometry go beyond idle tracking. Adaptive drilling systems change the feed rates based on machine learning algorithms that look at acoustic emissions. These systems can tell the difference between the best conditions for cutting geometry contact and rubbing or overloading, and they make hundreds of tiny changes every second. With this technology, set geometric patterns can be turned into flat drill bits for wood- cutting systems that are dynamic and adapt to the current conditions.
Sustainability-Driven Design Evolution
Requirements for longer life and recycling are two ways that environmental laws are changing the shape of tools more and more. Modular designs that let you change worn-out cutting edges while keeping the shanks and flat drill bit for wood bodies significantly lower the amount of material used. The geometry challenge is to make strong mechanical connections that keep accurate angular relationships even after multiple changes to the inserts without causing the tolerances to decrease over time.
There is pressure on coating technologies to get rid of heavy metals and harmful substances from the layering process. Different methods that use bio-derived friction enhancers have shown promise in the lab, but they haven't been tested in the field yet to see how long they last. If this area is successful, it will allow for environmentally friendly shapes that meet current performance standards. This will meet both legal requirements and operational needs, which procurement departments have to balance.
Conclusion
Wood Flat Drill Bit For Woods have cutting edge geometry that is a complex mix between material science, mechanical engineering, and real-world needs in the field. When you know how pilot points, cutting lips, and peripheral spurs affect wood structures, you can make smart purchasing decisions that improve performance right away and save money over time. Modern manufacturing methods, like those used at Ebuy Tools' 77,000-square-meter production complex, make it possible to engineer shapes to very precise tolerances, which directly leads to measurable gains in productivity. As material science develops and automation is used more in manufacturing, geometric optimization will continue to change. This will give purchasing professionals more advanced tools for controlling production efficiency and cost control in wood drilling applications.
FAQ
How does cutting-edge geometry affect bit lifespan?
When cutting, geometry directly affects how things wear down and how much heat is made. When rake angles are properly set, they should be between 15 and 25 degrees. This is the best range for balancing cutting efficiency and edge strength. Relief angles stop rubbing, which causes frictional heating. Compared to spurless designs, flat drill bits for wood with peripheral spurs usually have a 40–60% longer useful life because they spread cutting forces across more sides instead of putting all the stress on the center parts. Geometric aggression and material hardness must match. For example, acute angles need harder surfaces to stop plastic deformation.
Can one geometric design work across all wood types?
Universal geometry is not an improvement; it is a compromise. Softwoods let you make shapes that are thinner and have steeper rake angles than you could with thick hardwoods. For high-speed softwood applications, professional buying strategies keep different stocks of aggressive geometries and conservative designs with lower rake angles and more structural support for hardwood or mixed-material settings. This specialised approach has better cost-per-hole economics than using the same design for multiple uses that don't work well together.
What maintenance preserves geometric cutting performance?
Edge damage can be found through regular inspections before it leads to a catastrophic failure. Diamond files can be used for light sharpening to bring back the sharpness of the micro-edges while keeping the original angles. Pay close attention to the pilot point—keeping it centred and sharp will stop you from walking while you're engaged. Don't take away material from the outside of spurs because that makes the holes smaller. When field maintenance is no longer enough, which usually happens after 500 to 1,000 holes in building timber, professional regrinding services fix the geometry fully.
