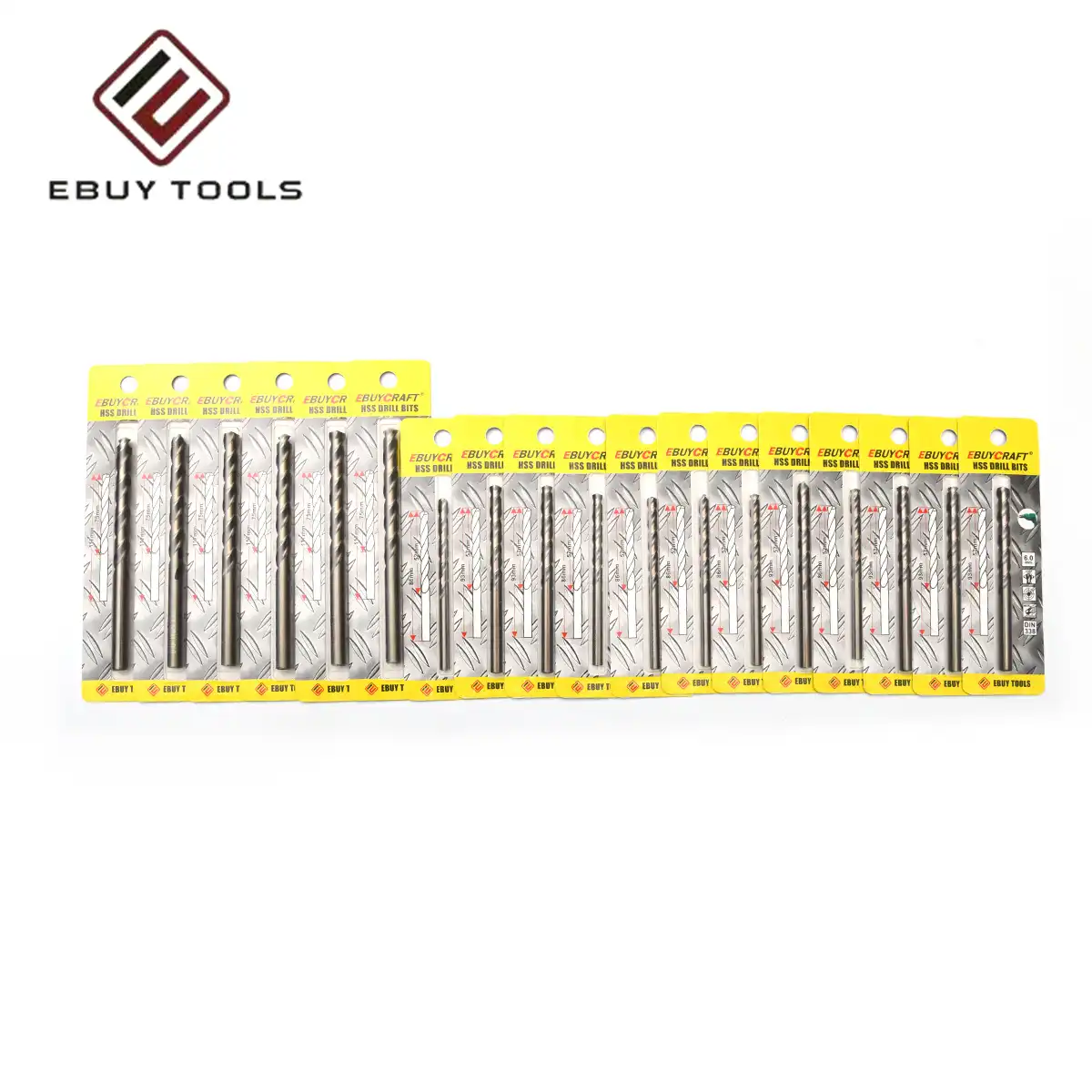

What Are High-speed Steel Twist Drill Bits?

High-speed steel twist drill bits are precision-engineered rotary cutting tools made from alloy steels that contain chromium, vanadium, tungsten, and molybdenum. Unlike most carbon steel alternatives, these bits keep their shape and cutting ability at temperatures above 500°C, a property known as "red hardness." The helical flute design makes it easier for chips to escape, and the optimized point geometry makes sure that holes are started correctly in both ferrous and non-ferrous materials. These tools solve important practical problems in metalworking settings where long tool life, accurate measurements, and consistent performance have a direct effect on how efficiently and cheaply things are made.

Understanding High-Speed Steel Twist Drill Bits

Material Composition and Metallurgical Properties

The complex metal structure that these drilling tools are made of is what makes them work. Standard M2 grade HSS has a hardness value of 63 to 65 HRC and is made up of about 6% tungsten, 5% molybdenum, 4% chromium, and 2% vanadium. This well-balanced mix is very resistant to wear and tear, and it still has the structure toughness to handle the power loads and vibrations that are common in industrial settings. With a specific gravity of 8.15 g/cm³, it has the best mass-to-strength ratios for precise drills.

Cobalt-enriched versions are necessary when working conditions call for better heat protection. The M35 grade has 5% cobalt and the M42 grade has 8% cobalt. Adding cobalt raises the temperature limits to 650°C and makes the material harder to 66–68 HRC. When cutting work-hardening materials like austenitic stainless steels or titanium alloys, these elite types keep the cutting edge from wearing down. This is because friction-generated heat would hurt the performance of regular HSS.

Design Features and Geometric Configurations

In addition to looking good, the twist shape has more than one useful purpose. For general-purpose use, the helical flutes are usually ground at 30° helix angles. They make pathways that move chips away from the cutting zone. This constant flow of air keeps chips from packing together, which builds up too much heat and causes tools to break down too soon. Precision in manufacturing makes sure that the flute shape stays the same along the whole length of the cutting, which allows for stable drilling operations even at deep depths.

Point shape has a big effect on how well drilling works. The 118° point angle is good for basic metalworking jobs because it spreads the cutting forces over a larger area, which makes the tool last longer. In precision uses, however, the 135° split point arrangement is clearly better. This self-centering design gets rid of the need for center punching, lowers the power needed, and stops the bit from "walking" during hole start, which is especially helpful when drilling hard materials or without pilot holes. At Danyang Ebuy Tools, we use precise grinding methods to get point accuracy within 0.02mm to 0.05mm across the cutting lips. This makes sure that the cutting action is balanced and the hole quality is excellent.

Standard Sizes and Dimensional Specifications

The sizes of drill bits are based on international standards. For example, DIN 338 sets the rules for jobber-length bits and DIN 340 sets the rules for extended-length bits. Tolerances for diameters stay within the h8 precision class, which guarantees hole accuracy that is needed for later assembly steps or threaded fastener installs. In North American markets, fractional inch sizes range from 1/16" to 1/2", while metric sizes run from 1mm to 13mm in jobber lengths.

People who work in procurement should know that length classifications have a direct effect on the suitability of an application. For general drills, jobber-length bits are the most rigid, while stub-length bits are the most rigid for hard materials. Longer choices can be used for deep holes, but they need lower feed rates to keep them from deflecting. Our manufacturing plant makes a wide range of sizes, so customers can get full sets of tools from a single verified provider. This makes inventory management and quality control easier.

Benefits and Common Applications of HSS Twist Drill Bits

Durability and Cost-Effectiveness in Production Environments

By looking at these tools' entire lives, you can see how valuable they are to businesses. Even though they cost more to buy at first than regular carbon steel bits, the longer operating lifespan makes the total cost of ownership higher. The tungsten-molybdenum matrix doesn't wear down easily, so the cutting edges stay sharp even after thousands of hole passes in soft steel—and this durability is exactly what you get with a high-speed steel twist drill bit, which makes the changeovers less frequent, thus cutting down on machine downtime and the work costs that come with replacing tools.

Accessibility for maintenance improves cost-effectiveness. Unlike useless carbide inserts, HSS bits can be sharpened again using normal cutting tools. Technicians with the right skills can fix cutting shape more than once, getting the most out of each tool. When you resharpen a bit the right way, you keep the key relief angles and split point geometry, which means the bit works almost as well as it did the first time. It's especially helpful for large-diameter bits that are expensive to replace because they can be fixed.

Because of this, you don't need to keep a lot of different kinds of tools on hand. Drilling can be done in aluminum, brass, copper, mild steel, alloy steel, and cast iron with just one set of high-quality HSS bits. This wide compatibility makes making purchases easier and lowers the cost of keeping goods on hand compared to keeping different carbide or cobalt tools for each material. Our TiN-coated choices make these options even more flexible by improving performance across an even wider range of materials without the need for different types of tools.

Practical Applications Across Industrial Sectors

These tools are very useful for removing engine blocks, transmission housings, and structural parts in factories that make cars. The stable dimensions and uniform hole quality meet the tight tolerance needs for bearing installs and threaded connections. The thermal stability of cobalt-grade bits helps multi-spindle CNC machines that work on cast iron cylinder blocks. These bits keep their cutting edge integrity even during high-volume production runs that generate a lot of heat.

When drilling important structural parts, aerospace repair and manufacturing need to be very reliable. To make rivet and fastener holes in aluminum structure parts, you need tools that can make holes that are clean, free of burrs, and don't cause micro-cracks or damage to the surface. Our M35 cobalt-grade bits work great in these situations because they can handle the roughness of aircraft aluminum alloys while keeping the hole positions accurate, which is important for aligning the parts. When drilling thin-wall sections, the split point shape is especially useful because it stops breakthrough warping that weakens the structure.



The flexibility of standard HSS tools is helpful for general manufacturing shops. When working with different materials, like structural steel one day and aluminum extrusions the next, you need flexible equipment options. Workflow effectiveness is maintained by being able to drill both materials well without having to change tools, and a high-speed steel twist drill bit fits this need perfectly across varied jobs. When using a magnetic drill press to make structural steel, the hardness of HSS is better than brittle carbide options, which break when there is vibration and alignment changes like there are in field drilling applications.

Maintenance Best Practices for Extended Tool Life

To get the most out of a tool, you need to pay attention to its operating factors and take preventative measures. When cutting speeds and feed rates are correct, too much heat is not produced, which speeds up wear. When you run at too high of speeds, friction heat softens the cutting edges, and when you feed at too high of rates, the tool becomes overloaded and chips or breaks. By looking at speed and feed charts from the maker that are matched to specific workpiece materials, you can make sure that activities stay within safe limits.

Using coolant greatly increases the life of tools in tough materials. Flood cooling systems get rid of heat and flush chips out of the cutting zone. This keeps chips from getting damaged by heat and having to be cut again. When flood systems aren't available, chip removal can be managed by pulling chips out every so often and cleaning them with compressed air. Cutting oils made just for HSS tools reduce friction and lubricate the edges of metals that stick together, like soft steel or aluminum, so they don't join together.

The way a tool is stored protects its functionality between uses. When bits are stored loosely in boxes, they can bump into each other and damage the shape of the points and dull the cutting edges. Index storage systems split sizes, which keeps the cutting edges safe and makes it easy to choose. Climate-controlled settings keep bare bits from rusting, which affects the quality of the surface finish and how well the drill works. Our bits come in packaging that won't rust and can be stored for a long time in a building. This makes sure that the tools get to the people who will use them in perfect shape.

How to Use and Select the Right HSS Twist Drill Bit

Operational Parameters for Optimal Performance

To get precise drilling results, you need to make sure that the working settings are right for the material and the bit. Surface footage estimates tell you what spindle speed to use. For harder materials, slower speeds are needed to keep heat from building up. For mild steel, a general rule of thumb is 80 to 100 surface feet per minute (SFM) when using HSS tools, which is equivalent to a certain RPM based on the bit width. For proper cutting speeds, bits with a smaller diameter need a relatively higher RPM, while bits with a larger diameter need a lower RPM to keep them from going over the SFM limits.

The choice of feed rate strikes a mix between drilling speed and tool loading. When there isn't enough feed, the machine rubs instead of cuts, which creates too much heat without removing enough material. The bit basically burnishes the piece of work, making the surface harder and speeding up the wear on the edges.

On the other hand, too much feed stresses out the cutting edges, which can lead to chipping or total failure. When the feed is set up correctly, chips keep coming out and are cleaned up, which means the cutting action is working well. Our technical paperwork gives specific advice on speed and feed based on the type of material and bit width, so you don't have to guess during the setup process.

The setup of the drill bit affects the accuracy of the first hole. When you use center punches or center drills, you set a starting place that keeps you from having to move, which is especially helpful when drilling on curved or angled surfaces. Before the drill point is fully engaged, the starter depression helps line it up correctly. Because the shape of 135° split point bits makes them self-centering, this step is not needed on flat surfaces. But guide holes still work well on curved or sloped surfaces because they set the position of the hole before the full cutting force is applied.

Selection Criteria for Application-Specific Requirements

Material fit is the most important factor in the decision process. Mild steel is the most common material used for cutting, and a standard high-speed steel twist drill bit in normal M2 HSS works well in a lot of different situations. Cobalt content becomes more important as you move from carbon steel to stainless steel or heat-treated metals. Austenitic stainless steels tend to work-harden, which makes them resistant to heat and cutting, and this causes a regular high-speed steel twist drill bit to quickly wear out. The M35 grade of cobalt bits still work well in these tough materials, and the M42 grade is for the toughest jobs that use sharpened tool steels or rare metals.

The choice of coating should be based on the needs of the process and the properties of the material. Uncoated bits work well in general situations where saving money is the most important thing and materials don't pose too many problems. TiN treatment is worth the small extra cost when working in production settings that need long-lasting tools or when cutting through rough materials. The efficiency improvement makes the machine more productive by either speeding it up or giving it more time between tool changes. TiAlN coating is best for specific uses that involve high temperatures or when the extra cost is worth it because the coating will last longer in harsh circumstances.

Troubleshooting Common Drilling Problems

Changes in hole size are often a sign of thermal growth during cutting or bad point shape. Too fast of speeds creates heat that makes the bit grow while it cuts, leaving holes that are too big when the tool cools down. By comparing the working settings to the suggested speeds for the material, you can find out if thermal issues are causing the problem. Points that are worn or not ground properly may also cut too big because the cutting lips aren't balanced or the web is too thick. Geometry-related size problems can be avoided by using precision-ground bits from known makers and keeping an eye on wear signs.

Edge wear that happens quickly is a sign of practical parameter problems or material mismatch. Too fast of running speeds for the cloth creates too much heat, which speeds up wear through thermal degradation. When there isn't enough cooling flow, chips and heat aren't removed properly, which leads to conditions that encourage fast wear. If the parameters look right but the bit keeps wearing down too quickly, the grade may not be right for the strength of the material. Wear problems in tough materials are often fixed by upgrading to cobalt-containing or treated versions.

Chipping or a crack means that the material was overloaded or hit with forces that were too strong for it. When feed rates are too high, cutting forces are higher than edge strength. This makes microchips get bigger and bigger until a major edge failure happens. When the bit breaks through the workpiece, it creates impact loads that can break points, especially in materials that are easily broken or parts with thin walls. Impact forces are kept to a minimum by properly supporting workpieces and lowering feed as breaking approaches. When you use stub-length bits in tough situations, they become more rigid, which lowers bending and the stress that comes with it, which can cause chipping.

Conclusion

Even though technology is getting better, high-speed steel twist drill bits are still necessary for working with metal today. The fact that they are tough, don't melt in hot temperatures, and are cheap makes them useful in a wide range of commercial settings. Knowing the types of materials, their shapes, and what they are used for helps you make choices that will improve drilling performance. Strategic buying from qualified makers guarantees a steady flow of precise tools that help meet goals for quality and efficiency in production. These versatile implements work reliably in the wide range of demanding tasks that are common in modern industrial operations. They can be used to equip new facilities or improve current tooling programs.

FAQ

What lifespan should I expect from high-speed steel drill bits?

Tool life depends a lot on the material of the item, how it is used, and the quality of the bit. When used at the right speeds and passes and on soft steel, good HSS bits can drill 200 to 500 holes before they need to be resharpened. In the same settings, cobalt versions make this go up to 300 to 700 holes. 50–70% less life is gained from harder materials like stainless steel. Longevity is increased by doing regular upkeep, using the right coolant, and working within the guidelines given. Due to strong quality controls and improved heat treatment methods, premium-grade bits from companies like Danyang Ebuy Tools are more consistent and last longer do you think high-speed steel twist drill bits will last?

Can HSS bits effectively drill hardened stainless steel?

Standard M2 HSS has trouble working with austenitic stainless steels because they strengthen when they are worked on and make a lot of heat. Cobalt-enhanced M35 or M42 grades work much better because the cobalt keeps the edge sharpness even at high temperatures. Drilling can be done successfully by using slower speeds, steady feed pressure, and good coolant application. The 135° split point design helps keep the hole in place in these tough materials. Coated versions offer better performance because they have less friction and can handle heat better.

Is resharpening HSS drill bits cost-effective?

For bits 6 mm and bigger, resharpening is a good deal because the cost of replacing is higher than the time spent resharpening. When it's not high-end cobalt bits or other specialty bits, smaller sizes usually cost less to replace than to sharpen. When properly resharpened with the right grinding wheels and methods, about 90% of the original performance is returned. To get good results, make sure you keep the point angles, relief angles, and lip proportions right. Most factories find that working with specialized tool grinding services extends the life of their tools in a cost-effective way while still meeting the quality standards needed for precise work.
