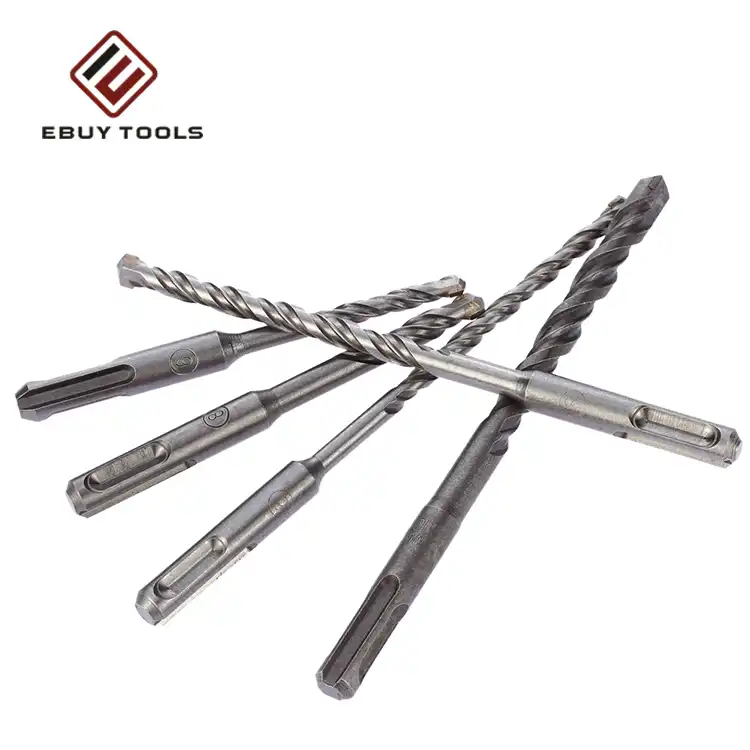

Choosing between straight shank and SDS Plus masonry bits depends on your specific drilling applications and tool compatibility. The SDS Drill Bit system, featuring specialized groove technology, delivers superior performance in heavy-duty concrete applications through its decoupled hammering mechanism, significantly reducing chuck slippage and operator fatigue. Straight shank bits offer versatility across standard drill platforms but lack the impact efficiency needed for reinforced concrete exceeding 3000 psi compressive strength. Understanding these fundamental differences empowers procurement professionals to match drilling solutions with operational demands, ensuring both productivity and cost-effectiveness on your sites.
Introduction
Masonry drilling is an important job in the manufacturing, industrial maintenance, and construction industries. Choosing between SDS Plus and straight shank drill bits has a direct effect on how long projects take, how long tools last, and how much money is spent on operations. When purchasing managers and engineering teams look at investments in tools, it's important to know the detailed differences between these two systems.
This comparison guide talks about the practical things that matter most to B2B decision-makers: how well it works on concrete and masonry substrates, how well it works with other equipment, how long it lasts when used all the time, and the total cost of ownership. There are a lot of options on the market for masonry drilling, but picking the right bit type requires careful consideration of your site conditions and material needs.
Manufacturing plants, construction companies, and tool distributors all have to deal with the same problem: how to get the most out of drilling while keeping costs down. The technical details of straight shank bits vs. SDS Plus bits show clear advantages in various operational situations. This guide gives you the information you need to make the best decisions about buying drill bits by looking at real-world performance data and application situations.
Understanding Straight Shank and SDS Plus Masonry Bits
Straight Shank Design and Applications
Masonry bits with a straight shank have a cylinder-shaped handle that fits standard three-jaw chucks on rotating drills and some hammer drills. This design is universal, so it works with a lot of different tool systems. This means that businesses with a wide range of tools can use them. Whether the shank is straight or hex, the chuck grip force is what keeps the bit in place during drilling.
Brick, block, and poured concrete with lower compressive strengths are all examples of masonry materials that these bits work well in. The shape of the carbide tip can be as simple as a spear point or as complex as a honeycomb. However, friction causes heat that slows down drilling in thick materials. Maintenance teams like how cheap they are and how easy it is to get them through normal industrial supply channels.
SDS Plus System Engineering
The Slotted Drive System is a major step forward in the technology used for digging into brickwork. The 10mm SDS Plus shank is different from cylindrical shanks because it has two open grooves for drive keys and two closed grooves for locking ball bearings. This patented system lets the chuck move longitudinally while keeping the rotational torque transfer.
Separating the hammering motion from the rotation is better from a scientific point of view. When drilling into reinforced concrete, the bit moves freely inside the chuck, putting all of the impact energy straight on the material being drilled. Our SDS Drill Bit collection at Danyang Ebuy Tools is made from premium 40Cr alloy steel that has been heat treated to an HRC 48–52 hardness. The groove systems are precisely engineered. This special metal keeps the shank from mushrooming even when high-impact loads are applied continuously.
Material Compatibility Comparison
Which bit type gives the best performance depends on the material choice. Straight shank bits are used for general masonry work, like drilling pilot holes through single-wythe brick walls and installing anchors in CMU blocks. When drilling through reinforced concrete or natural stone, their flaws become clear because the drilling speed slows down a lot and bit wears out faster.
When it comes to tough media, SDS Plus bits do great. The tungsten carbide tips on our bits are 89+ HRA hard, which means they stay sharp for thousands of linear inches in concrete with a compressive strength of over 4000 psi. The copper braze material is very resistant to heat, so the tip doesn't come off during long drilling sessions. This advantage in metalworking directly leads to less downtime and lower costs for supplies on large-scale projects.
Performance Factors and Use Cases: Which Bit Excels Where?
Drilling Speed and Depth Capacity
Speed of digging, measured in inches per minute, is very important for how well things work. When used with appropriate rotary hammers, SDS Plus systems clearly perform better in concrete situations, transferring up to 3.0 Joules of impact energy per hit. When drilling deeper than 12 inches, straight shank bits tend to get stuck because of dust buildup, but the disconnected hammering mechanism keeps the penetration rates constant.
The effectiveness of a straight shank depends a lot on how the operator uses it and how strong the drill is. Because they don't have built-in hammering mechanisms, these bits mostly depend on rotational cutting and manual feed pressure. When drilling into concrete, the speeds slow down to about 40–50% of SDS Plus rates. This is especially noticeable when making multiple anchoring points for structural uses. The deep capacity is still limited by how well the flute design clears the hole of brick dust.
Our SDS Drill Bits have flute geometry with optimized spiral designs that quickly remove debris. This engineering detail stops the buildup of heat that leads to carbide failure too soon. In tests comparing bits in double-wythe brick walls, ours maintained 30% faster drilling speeds than standard options while showing better bit life metrics.
Durability and Maintenance Requirements
The total cost of ownership calculations are directly affected by how long a tool lasts. Several things cause straight shank bits to wear out faster in high-impact situations. Slipping of the chuck creates friction heat on the shank surface, which wears down the grip diameter over time and lowers the retention force. The carbide tips work fine for occasional use, but they don't have the advanced soldering technology that is needed for settings where production runs all the time.
SDS Plus bits have longer service lives because they are better engineered. High-frequency induction welding is used in our manufacturing process to join the YG8C quality carbide tips to the steel body. This copper brazing material can handle temperatures of up to 1100°C and keeps the tip secure even when drilling quickly into rough aggregates. Our professional-grade bits have a 4-cutter geometry that keeps them from getting stuck on rebar, which is a common way for bits to fail badly and hurt the operator.
Application-Specific Performance Scenarios
Maintenance teams that work in factories face a variety of drilling problems. When putting equipment bolts in concrete floors that are already there, the accuracy of the drilling affects the anchor load values. Our SDS Drill Bits are certified by PGM, which means they meet the strict geometric limits needed for safe expansion anchor installs. Our precise production keeps the concentricity, which stops holes from being too big or too small, which would weaken the structure.
Construction contractors have tight schedules, and when equipment breaks down, it costs a lot to wait. When installing industrial HVAC systems that need to go through double-wythe brick walls cleanly, our core drill variations stay concentric even when the sizes go over 100mm. This stops damage from spreading to exit points on the facade, which saves money on repairs and keeps the project on schedule.
MEP contractors depend on consistent performance for pass-through drilling in poured concrete walls. Our long-length models keep the best digging speeds while clearing heavy slurry from deep holes quickly and effectively. This feature stops dangerous situations where two things become stuck together, which could damage equipment and put operators in danger. In heavy-duty commercial settings, straight shank alternatives just can't perform as well as these.
Procurement Considerations for B2B Buyers
Equipment Compatibility Assessment
Accurate inventory assessment is the first step to successful procurement. Existing drill fleets figure out the immediate needs for compatibility. Most rotary drills and some combination hammer drills can only use bits with a straight shank because they have three-jaw chucks. Straight shank bits can't be used with dedicated rotating hammers that have SDS Plus chucks without adapters, which hurts performance and raises safety issues.
The timeline for transitioning equipment affects the strategy for buying things. Operations that are planning to improve their equipment can carefully put in place SDS Plus systems, starting with high-volume tasks where the performance benefits give them an instant return on their investment. SDS Plus technology lowers the cost of consumables and increases uptime, which are both good for factories that run ongoing production plans.
Bulk Purchasing and Supplier Relationships
Strategies for buying in bulk have a big effect on unit prices and the stability of the supply chain. Building relationships with manufacturers that offer customization services is good for distributors and large contractors. Our 77,000-square-meter factory at Danyang Ebuy Tools makes about 150,000 pieces every day, so we can always meet your needs, even for large orders.
Our R&D department works directly with our procurement teams to create custom geometries that are used in specific ways. When normal catalog items can't meet certain operating needs, this feature comes in handy. Custom branding services help our distributor partners build their brand in the market, and our 319 skilled workers make sure that every production run goes through strict quality control.
When evaluating a supplier, you should look at their manufacturing certifications and quality systems. Our thorough quality control includes testing procedures that are done before the goods are shipped to make sure they meet performance standards before they are sent out. This attention to detail makes it easier for buying teams to check products as they come in and lowers the risk that products that aren't up to par will get to your sites.
Total Cost of Ownership Analysis
When comparing prices, you need more information than just the cost per unit. Straight shank bits are cheaper to buy at first, which makes them appealing for operations that want to save money. The secret costs show up in faster wear, slower drilling speeds, and more repair work on the tools because of damage to the chuck.
SDS Plus bits cost more at first, but they provide better value over the entire operational lifecycle. Our advanced metallurgy and premium carbide tips make bits last longer, so they don't need to be replaced as often as standard options. When drilling speeds go up, worker costs go down, which is especially noticeable on big projects that need to place hundreds of anchors.
Another cost factor is how long the equipment lasts. Damage to the chuck from a straight shank slipping causes drill repairs that cost a lot of money. This type of failure is no longer possible with the SDS Plus system, which protects your investments in expensive equipment. The SDS Plus edge is clear for operations that work with concrete and thick brick materials when procurement teams add up the total ownership costs that include products, labor, and equipment upkeep.
Making the Right Choice: A Decision Support Framework
Assessing Your Operational Requirements
To choose the right tools strategically, you must first honestly look at how drilling usually goes. Straight shank bits may be enough for operations that mostly work with soft masonry materials in light-duty situations. The lower start-up costs and wide range of tool compatibility make it a good choice for maintenance departments that need to drill on a variety of substrates on a regular basis.
Heavy construction companies and factories that drill into reinforced concrete every day need the strong performance that only SDS Plus systems can provide. The operational situation is very important. A building that puts in dozens of structural anchors every month will quickly get their money back from the SDS Plus because they will spend less on labor and supplies. The decision process should put the conditions of the place in question ahead of general cost comparisons.
Compatibility and Infrastructure Considerations
The options for immediate implementation are affected by the equipment that is already in stock. Facilities that have spent a lot of money on standard rotating drills are having a hard time making the switch. Taking things one step at a time works well: using SDS Plus systems for new heavy-duty tasks while keeping straight shank capabilities for light-duty work makes operations more flexible without having to replace all of the equipment.
Standardizing tools has long-term benefits. Streamlining to a single bit method makes it easier to keep track of supplies, lowers the need for training, and raises the rate at which equipment is used. When companies are planning to buy new equipment, they should think about how using SDS Plus platforms for all concrete and masonry drilling jobs would improve operations.
Performance Metrics That Matter
Making good decisions is based on measurable performance standards. Measuring the drilling speed in the materials that make up your substrate gives you direct reference data. By using representative bit samples in controlled tests, you can find out what the real performance differences are in your operational conditions. The money spent on test quantities pays off because it stops big purchases of goods that aren't right.
Bit life metrics need to be carefully kept track of. Baseline performance data is gathered by keeping track of the number of linear inches drilled by each bit before it was replaced. This empirical approach gets rid of subjective evaluations and gives procurement teams solid evidence to back up their decisions about which tools to use. Because we know a lot about manufacturing, we can give you fair performance predictions based on the details of your application.
Case Studies and Success Stories
Large-Scale Concrete Construction Project
A regional construction company that specializes in building commercial foundations had trouble drilling anchor points into high-strength concrete over and over again. Their current straight shank bit usage got too high to keep up, and bits broke after drilling fewer than 50 anchors. The costs of materials and labor went up because the digging went slowly.
The worker reported huge changes after switching to our SDS Drill Bit products with 4-cutter carbide geometry. The bit life was increased to more than 200 anchors per bit, which cut the cost of replacement parts by 75%. By speeding up the drilling, 40% less work had to be done on anchor placement jobs. The project was finished two weeks early, and the cost savings were so big that they were more than the initial investment in SDS Plus equipment and supplies.
Manufacturing Facility MRO Program
A precision machining center had a lot of different drilling needs for their maintenance work. At first, their purchasing team didn't want SDS Plus systems because each one cost more. A study of their drilling jobs showed that 70% of them were for making light holes in CMU block walls and metal supports, which were easily done with straight shank bits.
Strategic implementation was needed to find a solution. Heavy-duty concrete drilling for attaching tools and making changes to structures switched to SDS Plus systems. Straight shank bits were used for cost-effective routine repair drilling. This balanced method made the best use of their budget for consumables and improved performance where it counted the most. The annual cost of drilling consumables went down by 35%, and equipment uptime went up because drill maintenance needs went down.
Conclusion
Ultimately, the choice between straight shank and SDS Plus masonry bits as well as the SDS Drill Bit depends on the nature of the job, the materials you need, and the equipment you already have. When it comes to heavy-duty concrete work, SDS Plus systems are clearly better because they drill faster, last longer, and make the user safer. The unique groove technology stops the chuck from slipping and transfers as much impact energy as possible to the substrate.
Straight shank bits are still useful for a wide range of light-duty drilling tasks in a variety of materials. Their lower initial costs and ability to work with a wide range of tools make them ideal for maintenance settings where concrete drilling isn't the main job. Instead of just looking at per-unit prices, procurement workers should look at the total cost of ownership, which includes things like labor costs, equipment upkeep, and how often consumables need to be replaced. Strategically matching bit technology to the needs of an application leads to the most cost-effective and efficient operations.
FAQ
1. Can straight shank bits work in SDS Plus hammer drills?
Because the shapes of the shanks are different, standard straight shank bits can't fit SDS Plus chucks. There are conversion adapters that let you use straight shank bits in SDS Plus tools, but this takes away from the main benefits of the SDS system. The adapter stops the disconnected hitting action that makes SDS technology work. This means that your rotary hammer will work less like a regular drill. Adapters that slip when heavy loads are applied also raise safety concerns. Businesses that need to use SDS Plus hammer drills should buy the right SDS Plus bits to get the best performance and safety from these tools.
2. What maintenance extends SDS Plus bit life?
Bits last a lot longer if they are properly maintained. Before each use, put a small amount of special drill grease in the grooves on the shank to keep the chuck mechanism from rubbing against itself. Clean out the grooves of debris after each drilling session to keep them from building up and making it hard for the chuck to engage. Check the carbide tips often for wear or breaking, and replace the bits when damage is seen on the tips. When drilling, don't put too much side pressure on the bit; this speeds up wear and can cause it to fail early. Bits should be kept in protective cases so that impacts don't damage the finely ground shank surfaces. Your return on investment will be highest if you follow these rules.
3. How do I identify when bits need replacement?
Several indicators show when the replacement should happen. A noticeable drop in drilling speed compared to how the bit worked when it was new is a sign of carbide wear or damage. If the hole geometry isn't straight or there is a lot of vibration during operation, it means that the tip or shank is wearing out. Carbide tips that are broken, chipped, or heavily worn out can be seen visually and need to be replaced right away to avoid safety issues. Check the groove surfaces of SDS Plus bits for wear or mushrooming that could make it hard for the chuck to engage. By keeping track of the number of linear inches drilled, you can set baseline goals for your specific uses. This lets you plan predictive replacements ahead of time, which stops downtime caused by unexpected bit failure.
Partner with Ebuy Tools for Professional Masonry Drilling Solutions
With more than 15 years of experience in making, Danyang Ebuy Tools makes high-quality brick drilling tools designed for professional use. Our SDS Drill Bit collection is made of high-tech metals, like 40Cr alloy steel that has been precisely heated and tungsten carbide tips that are harder than 89+ HRA. We are a leading manufacturer of SDS Drill Bits, and our 77,000-square-meter facility can make 150,000 pieces every day. This means that we can reliably meet your needs for bulk purchases.
Email our technical sales team at [email protected] to get personalized procurement advice that fits your unique drilling needs. Through our full application support, we can help you choose the best bit specifications for your needs. Our competitive bulk price gives you great value without lowering the quality standards that protect your equipment investments and the safety of your operators. You can look at our whole selection of professional cutting tools made for tough industrial settings at ebuy-tools.com, where you can also find detailed product specifications and technical resources.
