Achieving a smooth finish when using wood flat drill bits depends on three fundamental factors: selecting bits with precision-engineered spur and reamer tips, maintaining proper rotational speed matched to wood density, and applying consistent perpendicular pressure throughout the boring process. The Flat Drill Bit For Wood design incorporates dual cutting spurs that sever wood fibers cleanly before the main cutting lips engage, dramatically reducing surface tear-out. When paired with Titanium Nitride coatings that minimize friction heat buildup, these bits deliver cleaner entry and exit holes. Controlling drill speed based on material hardness—slower speeds for hardwoods, faster for softwoods—prevents burning and splintering while ensuring dimensional accuracy critical for professional installations.

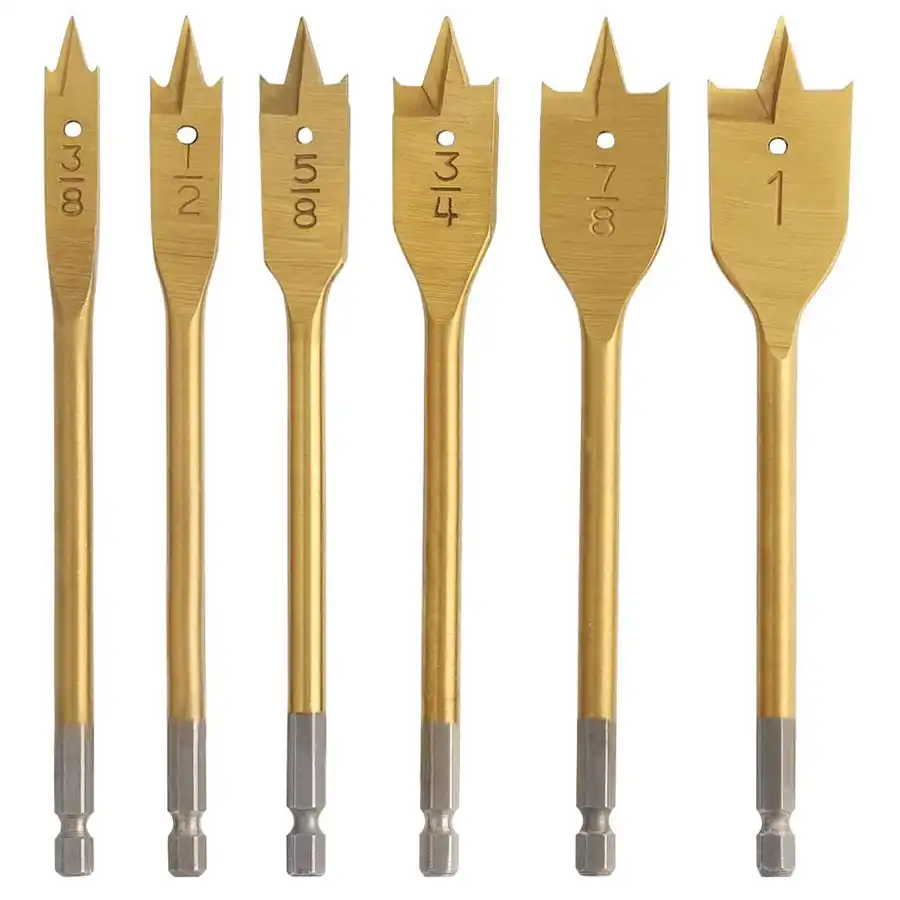

Understanding Flat Drill Bits for Wood: Types, Sizes, and Benefits
Specialized boring tools made for specific material removal tasks are very important in the woodworking industry. Flat Drill Bit For Woods are a separate group that are designed to work quickly and efficiently in structural applications rather than decorative ones. By understanding how they are put together, you can see why they work differently than helix or brad-point options.
Construction Materials and Hardness Standards
Professional-grade flat drill bits for woods are made of forged High Carbon Steel that has been hardened to 48–52 HRC. This is an important specification for keeping the shape of the edge when applying a lot of torque. In this hardness range, the resistance to wear and the toughness to break are both good. This keeps the shank from breaking in a catastrophic way, which can happen with brittle tool steels. Heat-treated alloy compositions are more resistant to impact than normal carbon grades. This is especially important when drilling through old wood that has tight knots or secret screws. In high-volume production settings where consistent performance cuts down on downtime costs, the metallurgical properties have a direct effect on how long a tool lasts.
Geometry Features That Influence Finish Quality
The shape of the paddle includes a number of geometric features that affect the quality of the holes. A centering point that has been precisely ground sets the starting position accurately and stops the bit from wandering, which leads to holes that are too big or the wrong shape. Two scoring spurs on the outside perimeter cut the wood fibers before the main cutting lips connect. This makes blowout much less likely, which is a problem with normal twist bits. Because the cutting edges are at an angle, they split instead of tear, which makes the sides of the hole cleaner. Open-face geometry makes it easier for chips to escape, which stops resin from building up and ruining the surface finish over time.
Size Range and Application Matching
The diameter ranges from 6 mm to 38 mm, which meets a wide range of industry needs. Smaller diameters are used for electrical conduit pass-throughs in home framing, while larger diameters are used for plumbing penetrations and installing HVAC ducting. As long as the shank is 1/4-inch hex, it can be quickly changed between impact drivers and cordless drills. This makes switching tools on busy job sites easier. When purchasing different sizes, procurement managers should compare project requirements with inventory turnover data to make sure they have the right amount of stock and don't waste money on sizes that aren't being used.
Comparative Advantages Over Alternative Bit Types
Forstner bits are great at making holes with flat bottoms and clean sidewalls. Flat Drill Bit For Woods, on the other hand, focus on speed and low torque needs. Their simpler shape makes power tools less stressed, which means that cordless drill batteries last about 40% longer during long rough-in operations than with helical auger designs. This speed directly saves money on labor costs in projects that need to be done quickly. Even though brad-point bits make better entry holes in terms of looks, they aren't strong enough to drill through nail-embedded studs, which is common in renovation work. The way the paddle is set up can handle these uncertain situations without the tip deflecting or breaking in a big way. Because of these ways they work, Flat Drill Bit For Woods are necessary for structure uses where speed is more important than looks. By understanding these trade-offs, you can make smart choices about what to buy that are in line with your business needs.
How to Use Flat Drill Bits for Wood to Achieve a Smooth Finish
With the right technique, a rough boring tool can be turned into a precise one. Even though Flat Drill Bit For Woods naturally puts speed over finish quality, following the right steps can greatly improve hole cleanliness without slowing down production.
Pre-Drilling Preparation and Material Securement
Stability of the workpiece is the key to getting clean drilling results. Holding stock firmly against a hard surface stops chattering caused by vibrations that make hole interiors rough. When drilling through-holes, the most common finish flaw is exit-side blowout. To fix this, place a sacrificial backer board under the workpiece. The backer material keeps the wood fibers in place as the bit breaks through. This keeps the fibers from tearing away without being supported, which would cause explosive splintering. In public places where both entry and exit looks are important, this simple tip is especially useful.
Speed and Feed Rate Optimization
To keep materials from getting damaged by heat, the rotational speed must match their mass. For mid-range diameters, softwoods like pine can handle speeds between 1,500 and 2,000 RPM. Dense hardwoods like oak, on the other hand, need to be slowed down to 800 to 1,200 RPM to keep them from burning. Too much speed creates friction heat that darkens the edges of holes and wears down cutting edges too quickly. Feed pressure should stay steady and reasonable. Forcing too hard makes the Flat Drill Bit For Wood grab and tear fibers instead of cutting them easily. Operators shouldn't try to fix dull edges by applying more pressure; instead, they should let the cutting shape do its job.
Maintaining Perpendicularity Throughout Boring
Drill alignment has a huge effect on the quality of the hole. Even small changes in angle can make entry holes longer and the texture of the sidewalls uneven. Using drill guides or press setups takes away the chance of human error when doing hand-held tasks. This is especially important for production runs that need to be consistent in terms of size. When drilling by hand is the only option, looking at the Flat Drill Bit For Wood from two different angles before driving it into the material helps make sure it is in the right place. Keeping this angle throughout the cut stops the shaking that makes holes that are too big or too rough and get thrown out during quality checks.
Progressive Drilling for Deep Penetrations
Holes that are bigger than four times the width of the Flat Drill Bit For Wood need chip removal intervals. The paddle design doesn't have any spiral flutes that could automatically remove chips, so every inch of entry depth has to be retracted by hand. When you pull out the spinning Flat Drill Bit For Wood, it clears out the sawdust that has built up in the cutting zone, which would otherwise cause too much heat and friction. This "pecking" method makes the sidewalls smoother and extends the life of the tool by making sure that new cutting edges always engage clean material instead of compressed debris.
Addressing Common Quality Issues
Splintering around entry holes usually means that the spur tips are dull and don't cut the fibers. Instead, they crush them. Clean entry performance is restored by checking and resharpening these outer cutting points. Rough hole interiors are often caused by going too fast in thick materials or not clearing the chips enough in deep holes. Changing operational settings based on visual feedback during test runs keeps production batches from having to throw away workpieces that don't work. Chipped exit edges, even with backing boards, mean that there is too much feed pressure, which makes the Flat Drill Bit For Wood tear through the last threads instead of cutting them. This flaw can be fixed by lowering the downward force as breakthrough approaches. By learning these techniques, operators can get the best finish from tools that were made for speed, which means they can be used for more than just rough structural work.
Maintenance and Sharpening: Keeping Your Flat Drill Bits in Top Condition
Tools last longer and work better every time if they are maintained in a way that stops them from breaking down too quickly. Using structured care procedures lowers the number of replacements needed while still meeting the high standards for finish quality needed in industrial settings.
Post-Use Cleaning Protocols
Having too much resin and pitch on cutting surfaces changes their useful shape, which raises friction and wears down edges too quickly. Wiping Flat Drill Bit For Woods down with mineral spirits or special pitch removers right after use stops hard buildup that needs tough mechanical cleaning later. When compressed air is forced into the paddle face, it breaks up the packed sawdust that is stuck in cracks around the centering point and spurs. Making this a standard procedure increases the time between sharpening sessions while keeping the boring performance the same across production runs.
Field Sharpening Techniques
The Flat Drill Bit For Wood design allows on-site repair with minimal instruments. Sharpening the cutting lips requires just a flat mill file at the original bevel angle. Cutting will proceed as expected if the manufacturer sets the angle between 15 and 20 degrees. Watch the outside spur points since they determine entrance hole cleanliness. By softly honing these edges with a fine file or diamond stone, fiber cutting is restored. By not removing too much material, you may maintain measurements exactly and prevent generating tiny holes and failing quality inspections. Field servicing reduces downtime and replacement costs compared to professional-ground pieces.
Replacement Indicators and Quality Thresholds
Sharpening no longer enhances performance in many ways. Edge rounding indicates the Flat Drill Bit For Wood has lost its hardness due to overheating and can't keep a sharp edge. Cracks near the cutting edges or shank junction weaken the structure and increase the risk of catastrophic loading failure. Resharpening doesn't improve hole quality if chronic burning, rough surfaces, or splintering occur; therefore, replacing the tool is cheaper. Planning when to replace a bit based on hole count or working hours prevents production quality issues.
Maintenance Supply Recommendations
A comprehensive maintenance station aids methodical care. Diamond files remove a lot of material fast from very dulled edges, while fine-grit whetstones enable finish honing to extend overall sharpening intervals. Pitch-specific degreasers remove stubborn resin deposits better than general-purpose degreasers. In tool rooms near where they will be utilised, operators are more likely to follow repair procedures. A minor investment in support equipment extends Flat Drill Bit For Woods life and reduces quality issues. These maintenance procedures convert swiftly used instruments into long-lasting assets that perform well for longer, affecting production economics.
Decision Factors for Procuring Flat Drill Bits for Wood: A Buyer's Guide
When buying industrial tools, you have to make decisions that balance technical requirements with budgetary limits while also making sure the supply chain is reliable. The best ways to find Flat Drill Bit For Woods depend on a number of important factors.
Material Grade and Surface Treatment Options
For softwood and plywood composite structural usage, high-carbon steel performs well. Metal stays sharp at 48–52 HRC without weakening. Titanium Nitride coating reduces friction and extends Flat Drill Bit For Woods' lifespan by three to five times in tough materials from engineered timber to laminated goods. So steel doesn't soften and dull prematurely, the gold-colored surface treatment better transfers heat away than uncoated steel. Based on use, buyers should compare coatings. If used often with rough materials, they may be worth the additional expense, but if utilized infrequently on clean softwoods, they may not.
Shank Compatibility and Tooling Integration
Industry-standard 1/4-inch hex shanks operate with quick-change chuck systems in electric drills and impact drivers. After checking DIN 3126 measurements, they won't slide under high power loads. Grip-enhancing grooves or flats are included by certain manufacturers. In impact-rated applications, frequent loading may loosen conventional shanks. This Flat Drill Bit For Wood works with regular power tools, so you don't have to pay for adapter hardware or specific chucks, which might increase the cost.
Size Assortment Strategy
By analyzing prior use data, you may optimize your product assembly. Electrical contractors usually acquire more 3/4-inch and 1-inch conduit and cable penetrations on average. To build sewage and supply lines, plumbers require 1-1/4 to 1-1/2 inch concentrations. Flexible package makers' custom assortment designs save up capital from slower-moving sizes while maintaining ample Flat Drill Bit For Wood diameter stock. Instead of purchasing conventional sets with underutilized sizes, this data-driven method maximizes working capital.
Bulk Purchasing and Volume Pricing Structures
Large enterprises may get bulk discounts from manufacturers that distributors can't. Producers that utilize hundreds of Flat Drill Bit For Woods per month might consider tiered pricing to minimize unit costs. Ordering the proper quantity based on storage capacity and cash flow prevents individuals from purchasing too much, taking away from bulk pricing advantages. Vendor-managed inventory reduces supplier ownership costs and ensures just-in-time manufacturing.
Supplier Reliability and Quality Consistency
A good flat drill bit for wood production affects product uniformity. Certified ISO 9001 quality systems demonstrate process control that minimizes batch-to-batch variances. Reliability also includes production capacity. Many companies that create 150,000 flat drill bits for wood per day can handle huge orders without extensive lead periods that disrupt project timelines. In terms of employee count and facility size, a supplier's infrastructure may indicate if they are long-term strategic partners or transactional vendors whose capacity might be constrained as demand rises. When purchasing, consider the entire cost of ownership as well as pricing, which influences industrial tool value.
Leading Brands and Supplier Insights for Flat Drill Bits for Wood
Woodworking equipment manufacturers provide flat drill bits for wood with different strategies and values. Knowing how the market changes helps you source cheaply. Big corporations' long histories and broad distribution networks may increase prices. In many worksite situations, professional builders use DEWALT and Milwaukee equipment. Bosch advances engineering, making tools easier and lasting longer. Professionals praise Makita's performance and reasonable pricing. Entry-level to high-end Irwin goods for professionals and serious DIYers. Famous companies provide complete warranties and excellent after-sales support via retail and distributor channels. In secondary marketplaces, things are available, which benefits companies with several locations that need basic equipment. Specialists like Ebuy Tools focus on corporate and wholesale partnerships. With 319 employees, your 77,000-square-meter manufacturing operation can meet high-volume needs. Up to 150,000 pieces may be manufactured every day, allowing for fast completion of big orders without disrupting project schedules. Because of its size, the company may offer customers lower pricing than smaller firms. Factory direct sales offer personalization, unlike distributors. Purchasers should work with manufacturers on diameters, coatings, and packaging designs. To solve application problems not addressed by stock items in specialized manufacturing operations' R&D facilities, team members may build new products. Eventually, supply chain issues affect sourcing strategy. Domestic suppliers provide quicker and cheaper. For large orders' higher transportation costs, international manufacturers may charge less. The value lies in landing costs, not ex-factory price. Many recognized suppliers avoid capacity or global issues from halting manufacturing. Audit quality assurance methods. Before shipment, producers evaluate each batch of standardized products to reduce waste and rework. To separate quality from volume providers, request quality documents and process certifications.
Conclusion
To get smooth finishes with Flat Drill Bit For Woods, you need to know what their design limits are and how to use them correctly. These bits put speed over perfect appearance, but using the right technique—like using a backer board, optimizing speed, and aligning the bits perpendicularly—makes a huge difference in the quality of the holes. Cleaning and sharpening tools in the field as part of regular maintenance keeps them working well and extends their life. When making a purchase decision, you should look at more than just price. You should also think about the total cost of ownership and the reliability of the supply chain. When skilled woodworkers buy tools, they get the most out of them by making sure that the technical specs and application needs are balanced.
FAQ
1. Why do paddle bits cause exit-side splintering despite careful technique?
The shape of the Flat Drill Bit For Wood applies downward force that squeezes the wood fibers in front of the cutting edge. As the bit gets closer to breaking through, the unsupported fibers on the exit side have no resistance, so they tear off quickly instead of cutting cleanly. Physics says this will happen no matter how skilled the operator is. Professional ways to fix the problem include clamping spare backing boards that hold the fibers continuously through breakthrough or drilling until the centering point just sticks out and finishing the hole from the other side. Both methods get rid of conditions where the fiber isn't supported, which leads to blowout.
2. Can Titanium Nitride coating be applied to standard uncoated bits?
For titanium nitride to be used, it needs to be deposited using special Physical Vapor Deposition equipment in controlled vacuum environments at high temperatures. This industrial coating process can't be used in the field or in a normal tool room. The molecular level is where the metallurgical bonding happens, making merged surface layers instead of films that are sprayed. Actually, the only realistic way to get TiN benefits is to buy factory-coated Flat Drill Bit For Woods. The small price increase is worth it in high-volume situations because the better performance more than covers the cost of the longer tool life.
3. How does paddle bit performance compare to auger bits in deep boring applications?
Flat Drill Bit For Wood designs don't have helical flutes that automatically lift chips out of deep holes, so debris has to be manually removed every so often. Auger bits have a spiral shape that keeps chips from sticking together without the operator having to do anything. This makes them better for holes that are deeper than four times the diameter. But auger bits need a lot more torque, which drains cordless tool batteries faster and makes operators more tired. The type of material used depends on the job. For example, Flat Drill Bit For Woods work better for small, high-volume boring, while augers are better for deep structure penetrations, even though they cost more to run.
Partner with Ebuy Tools for Reliable Flat Drill Bit For Wood Supply
Danyang Ebuy Tools makes industrial-grade boring tools that are designed to work in tough production settings. Our forged High Carbon Steel construction, which has been hardened to 48–52 HRC, along with our precision-ground spur geometry and Titanium Nitride finish, gives high-volume processes the longevity and efficiency they need. Working out of a 77,000-square-meter building with 319 skilled workers, we keep a daily production capacity of about 150,000 pieces, making sure that projects don't get held up, which can be very expensive.
Our quality systems are ISO 9001 approved, and we have a separate R&D department that works on both standard requirements and custom specs that are made to fit the needs of each application. We know what precision machine shops, auto suppliers, and industrial equipment makers want when they buy Flat Drill Bit For Wood because we've been making them for a long time. Email our team at [email protected] to talk about big prices, technical requirements, and how our manufacturing services can help you reach your business goals. You can look through all of our cutting tools at ebuy-tools.com.
