Selecting the best High Speed Steel Twist Drill Bits for metal drilling requires understanding material composition, coating technologies, and operational requirements specific to your industrial application. HSS drill bits balance heat resistance, durability, and cost-effectiveness, making them indispensable for precision machining shops, automotive manufacturers, and aerospace engineers. This comprehensive buying guide helps procurement managers evaluate critical performance parameters, compare material grades, and identify trusted suppliers to optimize productivity while controlling tooling expenses across high-volume production environments.

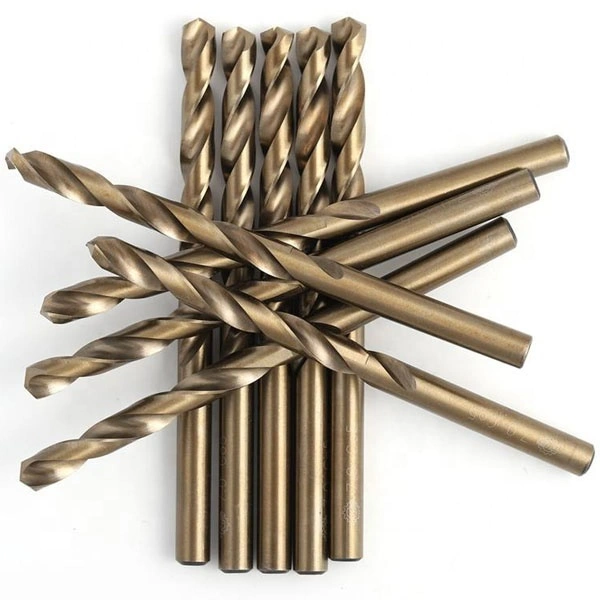

Understanding High Speed Steel Twist Drill Bits
Precision-engineered rotary cutting tools made from complex tungsten-molybdenum-chromium alloy steels are called High Speed Steel Twist Drill Bits. The amazing "red hardness" of these bits sets them apart from regular carbon steel tools—their ability to keep their cutting edge integrity at high temperatures. Even when temperatures reach 600°C during long drilling operations, standard M2 grade HSS keeps its Rockwell hardness between 63 and 65 HRC. This temperature stability keeps the edges from shrinking, which would hurt the accuracy of the holes and the quality of the finish on the surface.
Material Grades and Their Industrial Applications
The success of different types of metal is directly related to their metallurgical makeup. The M2 grade is the standard in the industry. It has the right amount of hardness and toughness for general drilling in mild steel, aluminum, and brass. When working with harder materials like titanium metals or stainless steel, you need cobalt-enhanced versions. The M35 grade adds 5% cobalt to the metal, which raises the hardness values to 66–68 HRC and raises the temperature limits for use to 650°C. The M42 grade, which has 8% cobalt, has the highest hot hardness for drilling austenitic stainless steel and superalloys, where work hardening happens quickly.
Coating Technologies That Extend Tool Life
Surface processes greatly improve the performance of the base material. Titanium Nitride (TiN) coatings, which look golden, make a thermal barrier that lowers the friction coefficient to less than 0.4 and raises the surface hardness to 3000 HV. This means that cutting speeds can be raised by 25 to 30 percent, and tools can last longer when working with metal materials. Titanium Aluminum Nitride (TiAlN) films work great in high-temperature situations and keep their protective qualities at temperatures above 800°C. Even though black oxide processes don't last as long as TiN, they protect against rust and lower the initial friction during the cutting process, making them a cost-effective choice for small production runs.
Geometric Design Features That Matter
The split point shape of 135 degrees is a big improvement over the old 118-degree versions. Split point bits have a web-thinning change at the tip that makes two separate cutting edges meet in the middle. This arrangement gets rid of dead zones where material pushes out instead of cutting, which lowers the thrust force needed by around 40%. Because it can center itself, the bit doesn't walk on harder surfaces, so center punching isn't needed in most situations. The standard helix angle of 30 degrees (Type N) makes it easiest for chips to escape in steel and cast iron. This is done by keeping the flute channels clear, which stops chips from packing together and heat from building up.
Comparison of HSS Twist Drill Bits Against Alternative Materials
Knowing the important trade-offs helps buying teams make smart choices that are in line with practical needs. High Speed Steel Twist Drill Bits tooling is in a good spot between carbon steel and carbide shaping. It has performance benefits that make it widely used in many industrial sectors.
HSS Versus Carbide: Balancing Hardness and Toughness
Carbide drill bits are harder than HSS bits, measuring 88–92 HRA vs. 63–68 HRC. This means they can cut at higher speeds and last longer in continuous machining operations. But carbide's tendency to break easily is a problem when it comes to vibration, delayed cuts, or portable drilling tools. When using magnetic base drills to drill I-beams or doing maintenance work in the field where setup rigidity can't be guaranteed, HSS bits can handle shock loads that would break carbide tools. Because HSS bits can be resharpened more than once, unlike throwaway carbide inserts, the total cost of ownership is much lower in job shops that work with a variety of materials.
Cobalt HSS Versus Standard HSS: When to Upgrade
At normal speeds, standard M2 HSS can handle mild steel, aluminum, and brass well. It makes financial sense to switch to cobalt-enhanced grades when drilling materials harder than 30 HRC or when high production volumes require tools to last as long as possible between changes. Adding cobalt makes austenitic stainless steels more resistant to wear and stops them from softening at high temperatures during the work-hardening phase. When drilling solid parts for airplanes or cutting transmission cases for cars, the higher cost of M35 or M42 bits is justified by shorter downtime and more consistent hole quality over longer production runs.
Coating Selection Based on Workpiece Material
When drilling low-carbon steels and aluminum alloys, TiN-coated bits work best because the coating's lubricating properties keep the edges from building up. TiAlN coatings work better on hardened steels and titanium alloys because they keep their protective structure even at very high temperatures, which happen because these materials don't conduct heat well. Uncoated HSS bits can still be used on brass and copper metals, even though coating bonding problems can cause them to break too soon. Black oxide treatments work well in mixed-material settings that need some corrosion protection but don't need the higher cost of more advanced coatings.
How to Choose the Right HSS Twist Drill Bits for Your Procurement Needs
When buying things for industry, you have to carefully look at the scientific details, the supplier's skills, and the overall costs. The following approach helps buyers make sure that the High Speed Steel Twist Drill Bits they choose meet business needs while staying within their budget.
Evaluating Technical Specifications for Your Application
Ratings of hardness are the best way to tell how well a tool cuts and how long it will last. Check that the specs given by the supplier meet the base requirements, which are 63–65 HRC for standard grades and 66–68 HRC for cobalt grades. The accuracy of a hole is based on its tolerance class. For most general engineering uses, a diameter precision of h8 is fine, but for precision parts, h7 is needed. Choosing the right point geometry depends on the hardness of the material. For example, 118-degree points work well in soft materials below 25 HRC, but 135-degree split points are needed for materials over 30 HRC to lower cutting forces and keep corners from chipping too soon.
Supplier Qualification and Quality Assurance
Reliable suppliers have quality systems that are written down and checked by a third party. Following international standards during production, such as DIN 338, DIN 340, and ASME/ANSI B94.11M, guarantees consistent dimensions and predictable performance. Ask for proof that the hardness was checked using accurate Rockwell C testers, that the cutting lip height differences were less than 0.05 mm, and that the metallographic analysis showed that the carbides were spread out evenly. Suppliers with large production capacities—for example, factories that make 150,000 pieces every day—invest in their infrastructure in a way that supports regular quality and predictable delivery schedules, which are important for just-in-time manufacturing settings.
Volume Purchasing Strategies and Custom Solutions
When you make bulk purchases with qualified makers, you save a lot of money and make sure you always have a supply. Teams in charge of buying things should talk about volume levels that are in line with predictions for yearly usage. This way, they can get good deals without having to pay too much for storage. Custom bit sets made to fit specific production needs make tools work more efficiently. Instead of keeping a large variety of all-purpose items in stock, ask for sets that only include the sizes and lengths that your operations need. This will cut down on per-piece costs and make managing your inventory easier.
Well-known companies like Ebuy Tools, which has facilities that cover 77,000 square meters and employs 319 skilled workers, combine large-scale production with engineering know-how to create custom solutions. Because they can make things according to DIN 338 and ASME standards and offer custom geometries, they are flexible enough to handle a wide range of needs. Geography is an important thing to think about when looking at manufacturers. Suppliers who have experience with foreign shipping know what paperwork is needed and how to package things in a way that keeps them safe during travel and avoids customs delays.
Best Practices to Maximize the Performance and Lifespan of HSS Twist Drill Bits
The right working conditions and upkeep steps have a big effect on both how well a tool works and how much it costs to own. Using systematic methods guarantees consistent results and increases the High Speed Steel Twist Drill Bits useful life.
Optimizing Cutting Parameters for Different Metals
When choosing a cutting speed, you need to think about how hard the material is and how it reacts to heat. For HSS bits, surface speeds in mild steel drilling are usually between 70 and 100 feet per minute. For stainless steel, speeds need to be slowed down to 40 to 60 feet per minute to control heat production. Because aluminum is a good heat conductor, it can go as fast as 200 feet per minute with the right water. The same care needs to be taken with feed rates. Too much feed stresses the cutting edge beyond its transverse breakup strength, which leads to corner chipping. Not enough feed creates friction heat without cutting. A balanced method uses feed rates that make continuous chips instead of dust, which means that the material is removed efficiently without touching too much.
Maintaining Bits for Extended Service Life
Cutting edge condition has a direct effect on the quality of the holes and the amount of power used. When bits are dull, they produce too much heat, make holes that are too big, and need higher thrust forces that put stress on both the tool and the workpiece's fixturing. Set up regular sharpening times based on the number of holes or eye inspection standards. This way, you can take care of wear before it leads to a catastrophic failure. The right way to resharpen keeps the original shape of the point and the symmetry of the cutting lip. If the lip heights aren't the same, eccentric rotation happens, which makes holes that are too big or too small. Keeping things in organized racks that keep edges from touching protects the cutting geometry and makes it easy to find the right size during setup.
Avoiding Common Operational Mistakes
The most common reason why HSS bits fail early is that they get too hot. When coolant isn't delivered properly, interface temperatures can rise above the material's tempering threshold. This makes the cutting edge softer and speeds up wear. Pecking cycles, in which the bit is pulled out every so often to clear chips and add water, keep chips from packing into deep holes that are more than three times the width. If you choose the wrong bit grade for the material hardness, it will either quickly dull if the material is too hard for the bit grade or not cut well if the material is too soft for the bit grade when higher speeds would make it more productive. Chattering is caused by vibrations from old spindle bearings or bad workpiece clamping. This damages the finish on the cutting edges and holes.
Where and How to Buy High Speed Steel Twist Drill Bits for Industrial Use
Industrial tooling procurement channels have grown a lot, giving buyers more ways to get quality bits at reasonable prices. Understanding the pros and cons of each channel makes purchasing more efficient. Building relationships with manufacturers like Ebuy Tools gives you access to technical support, the ability to make custom products, and better pricing for large orders. Direct sourcing gets rid of the markups that distributors add, which is especially helpful for standard things that are bought in large amounts. Companies with strong research and development departments can make changes to standard products to solve problems in specific applications by creating custom point geometries or special coatings. However, small shops may not be able to meet the minimum order amounts. This is why working with a wholesaler can be helpful for businesses that don't need a lot of products right away or that need a variety of sizes of High Speed Steel Twist Drill Bits.
Direct Manufacturer Relationships Versus Distributor Networks
Establishing relationships with manufacturers provides access to technical support, custom product development, and favorable volume pricing structures. Direct sourcing eliminates distributor markups, particularly beneficial for standardized items consumed in large quantities. Manufacturers with comprehensive R&D departments can modify standard products to address specific application challenges, developing custom point geometries or specialized coatings. However, minimum order quantities may exceed small shop requirements, making distributor relationships valuable for operations with modest consumption volumes or those requiring immediate availability across diverse sizes.
Evaluating Online Platforms and B2B Marketplaces
Digital buying platforms make it easier to buy things by giving you tools to compare products, customer reviews, and faster shipping choices. When looking at online sources, make sure the seller is who they say they are by checking their business license, quality badges, and customer references. Platforms that focus on industrial tools offer technical specs in standard files that make it easier to compare sellers accurately. But when you buy something online, you can't physically check it out before you commit, so the name of the seller and their return policy are very important.
Pricing Factors and Cost Optimization Strategies
The prices of HSS drill bits are affected by a number of factors. The main thing that affects price is the type of material used. For example, cobalt-enhanced M35 and M42 grades are more expensive because they need to be made with more expensive raw materials and go through special heat treatment steps. Coating applications add extra costs that are related to how complicated the process is. For example, TiAlN coatings cost more than TiN coatings because they are deposited at higher temperatures and go through longer processing steps. Prices are affected by how well-known a brand is; well-known brands usually charge more, but this is because they offer consistent quality and technical support. Tier-based pricing is unlocked by making a volume commitment, with big discounts available for orders of more than 500 to 1,000 pieces per size.
Bulk purchasing requires balancing immediate cost savings against inventory carrying costs and obsolescence risk. Calculate economic order quantities considering storage costs, capital tied up in inventory, and consumption rates. For high-turnover sizes, larger volumes prove economical, while specialty items warrant conservative ordering to minimize obsolescence exposure as production requirements evolve.
Conclusion
When choosing the best High Speed Steel Twist Drill Bits for your business, you need to weigh the cost of the bits against their technical performance. Knowing about different types of materials, coating technologies, and geometric features lets you make smart choices that boost productivity while keeping tooling costs low. A good buying strategy includes qualifying suppliers, making deals to buy in bulk, and using standard operating procedures that make tools last longer. The guidelines in this guide can help you decide whether you need general-purpose M2 bits for working with a wide range of materials or specialized cobalt types for tough alloys. Working with qualified manufacturers gives you access to consistent quality, technical know-how, and a reliable supply chain, all of which are important for running a competitive manufacturing business.
FAQ
1. What makes HSS drill bits suitable for stainless steel drilling?
Cobalt-enhanced High Speed Steel Twist Drill Bits grades, especially M35 with 5% cobalt and M42 with 8% cobalt, keep their cutting edge hardness during the work-hardening phase that all austenitic stainless steels go through. The high "red hardness" stops the thermal softening that dulls standard HSS bits very quickly, and TiAlN coatings add more thermal protection.
2. How often should HSS bits be resharpened to maintain performance?
How often you sharpen depends on how hard the material is and how much you're making. Keep an eye on the quality of the holes and the amount of thrust force that is needed. If the holes get too big or the drilling requires a lot more pressure, they need to be resharpened. For light steel, bits usually need to be sharpened every 200 to 400 holes. For harder materials, they may need to be sharpened every 50 to 100 holes.
3. When should buyers choose HSS over carbide drill bits?
HSS bits work best in situations where there is shaking, cutting that needs to be stopped, or portable tools where carbide's brittleness makes it more likely to break. When different hole sizes are needed, resharpening HSS inserts can save time and money by lowering the number of inserts that need to be kept on hand. Applications that care about cost and have low production volumes find that HSS works well enough with a lot less investment.
Partner with Ebuy Tools for Reliable HSS Twist Drill Bit Supply
Professional-grade High Speed Steel Twist Drill Bits are available from Ebuy Tools. These bits are made for tough industrial uses. Our factory in Danyang City is 77,000 square meters big and has 319 trained workers who make 150,000 cutting tools every day while strictly following DIN 338 and ASME quality standards. We have normal M2 grade and cobalt-enhanced M35/M42 versions, with extra TiN and TiAlN coatings. All of them have 135-degree split points that are precision-ground for better performance. As a company that only makes HSS twist drill bits, we offer low prices for bulk orders, custom solutions for specific uses, and fast shipping around the world. Contact our technical team at [email protected] to talk about your procurement requirements and discover how our precision tooling solutions can enhance your operational efficiency.
References
1. Stephenson, David A., and John S. Agapiou. Metal Cutting Theory and Practice. 3rd ed. CRC Press, 2016.
2. Shaw, Milton C. Metal Cutting Principles. 2nd ed. Oxford University Press, 2005.
3. Trent, Edward M., and Paul K. Wright. Metal Cutting. 4th ed. Butterworth-Heinemann, 2000.
4. American Society of Mechanical Engineers. ASME B94.11M-1993: Twist Drills. ASME Standards Committee, 1993.
5. Deutsches Institut für Normung. DIN 338: Twist Drills for General Purpose - Dimensions. DIN Standards, 2014.
6. Roberts, George A., et al. Tool Steels. 5th ed. ASM International, 1998.
