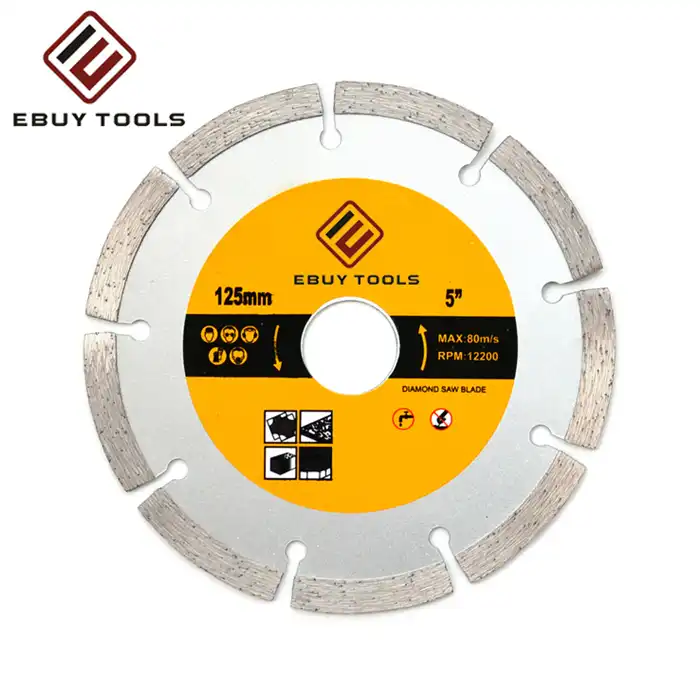

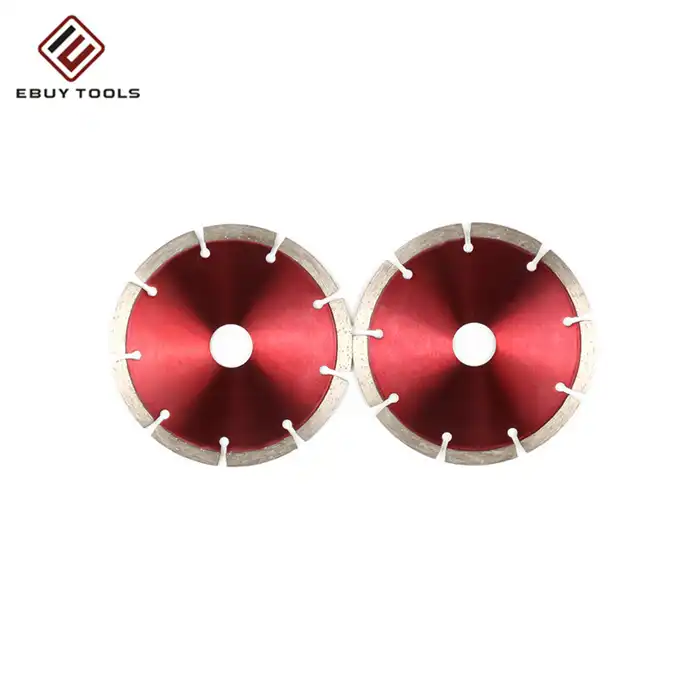

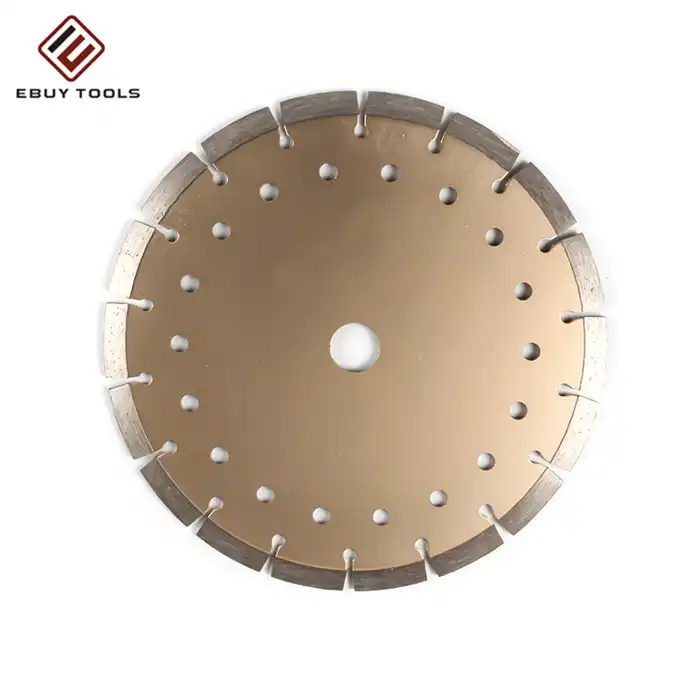

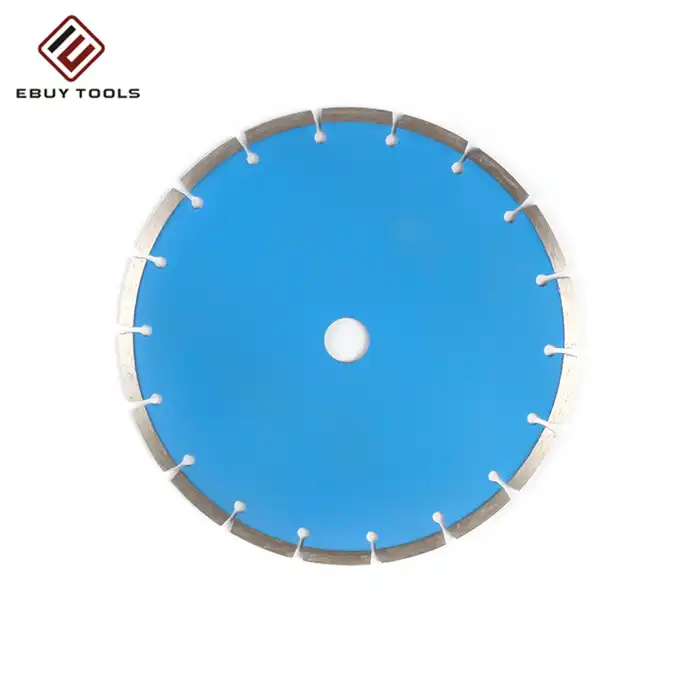

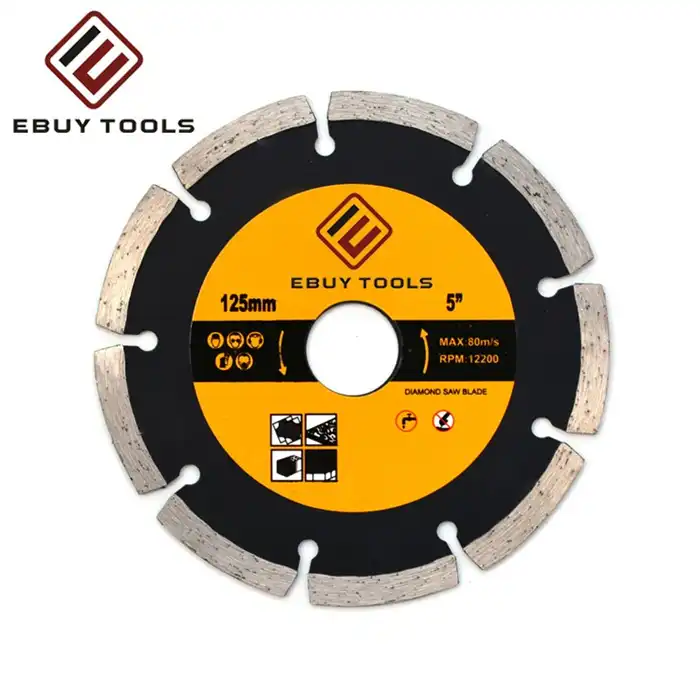

Hot Pressed Segmented Diamond Saw Blade
It is suitable for a variety ofstone materials.
It is a cost-effective product recognized by Europe, South America and other countries.
Standard for Concrete Diamond Cutting Disc.
The diamond blade offers the best cutting performance, delivering consistently excellent results.
Hot Pressed Segmented Diamond Saw Blade - Professional Grade Cutting Solution
Our Hot Pressed Segmented Diamond Saw Blade combines advanced powder metallurgy with enterprise-level manufacturing precision. Made at Danyang Ebuy Tools' 77,000 square meter facility by 319 skilled professionals, these blades undergo simultaneous high pressure and temperature processing (900°C+) for superior diamond retention. With our daily output of 150,000 diamond saw blades, we ensure consistent quality and reliable supply for your cutting projects.
Our Factory
Product Parameters
|
Specification
|
Details
|
|
Manufacturing Process
|
Hot Pressed Powder Metallurgy
|
|
Temperature Range
|
900°C+ with High Pressure
|
|
Bond Matrix
|
Cobalt, Iron, Copper, Bronze Alloys
|
|
Diamond Grit Size
|
30/40 to 50/60 Mesh
|
|
Hardness Range
|
85-105 HRB (Rockwell B)
|
|
Core Material
|
High-grade Tool Steel (65Mn/75Cr1)
|
|
Maximum RPM
|
Up to 12,000 RPM
|
|
Thermal Resistance
|
500°C+ Cutting Zone
|
|
Design Type
|
Segmented with Deep Gullets
|
|
Quality Standard
|
EN13236 / ANSI B7.1 Compliant
|
Our Certificate
What Makes Our Diamond Cutting Blades Special?
Our fabricating prepare makes a vigorous metallurgical bond that beats conventional options. Not at all like cold-pressed choices that need thickness, or costly laser-welded adaptations, our edges offer the idealize adjust of execution and value.
The sectioned edge plan highlights profound necks that give amazing discuss cooling. This avoids twisting amid ceaseless dry cutting operations. You'll involvement quicker cutting speeds and longer edge life compared to standard alternatives.
Our quality control framework guarantees each edge meets strict industry measures. We screen each generation step and conduct pre-shipment reviews. This consideration to detail implies you get reliable, solid cutting apparatuses each time.
Our Exhibition
Key Applications for Your Projects
Construction and Renovation Work
Perfect for handheld angle grinders and gas-powered cut-off saws. Cut through cured concrete, red brick, blocks, and pavers with confidence. The segmented design allows aggressive material removal without water access.
Masonry and Hardscape Projects
Ideal for cutting abrasive natural stones like sandstone and limestone. The hot-pressed bond resists deep abrasion from silica dust. Landscape contractors rely on these blades for shaping retaining walls and patio stones.
Reinforced Concrete Processing
Handle light-to-medium reinforced concrete effectively. The blade maintains proper cutting width to prevent binding when cutting through embedded wire mesh or light rebar during demolition work.
Advanced Technical Features
Superior Sintering Density
Our hot-pressing process minimizes porosity in the metal bond. This ensures maximum holding power for synthetic diamond grits. You get better diamond retention and cutting performance.
Optimized Hardness Matching
We engineer segments with specific Rockwell B hardness (85-105 HRB) to match your material's abrasiveness. Softer bonds work best for hard stone, while harder bonds suit abrasive concrete.
Excellent Thermal Stability
The segmented design allows thermal expansion without rim distortion. This feature is vital for dry cutting where temperatures can exceed 500°C at the cutting zone.
Self-Sharpening Technology
The matrix erodes at a controlled rate as cutting progresses. When diamond particles become dull, they shed naturally to expose fresh, sharp diamonds. This keeps your Hot Pressed Segmented Diamond Saw Blade cutting efficiently longer.
Our Packaging
FAQ
Q: How does your edge vary from cold-pressed options?
A: Our hot-pressed fabricating makes much denser fragments with more grounded precious stone maintenance. You'll get 2-3 times longer life and speedier cutting speeds compared to cold-pressed alternatives.
Q: Can I utilize this edge for dry cutting applications?
A: Completely! The sectioned plan with profound necks is particularly designed for dry cutting. The necks disseminate warm successfully and discharge tidy proficiently amid operation.
Q: What ought to I do if my edge stops cutting effectively?
A: If your edge coats over, "dress" it by making cuts into grating fabric like a cinder piece. This disintegrates the metal bond and uncovered new precious stones for recharged cutting performance.
Q: Is this edge reasonable for cutting asphalt?
A: Our standard stone work edges work best for concrete and stone. For black-top applications, we prescribe specialized edges with drop-segment security and harder bond matrices.
Q: What security measures do your edges meet?
A: All our edges comply with EN13236 and ANSI B7.1 security measures. They pass thorough testing for rotational speed limits and section holding strength.
Q: Do you offer customization options?
A: Yes, we can customize edges with your branding on items and bundling when least arrange amounts are met. Our R&D office moreover creates custom arrangements for particular requirements.
Why Choose Danyang Ebuy Tools?
With broad industry encounter and advanced fabricating capabilities, we provide exactness and strength in each item. Our devoted Investigate & Improvement division guarantees nonstop advancement. Our rigid quality control framework keeps up tall benchmarks over all generation batches.
We get it the requesting nature of proficient cutting work. That's why our item is designed to perform reliably in challenging conditions whereas giving amazing esteem for your venture.
Contact Us
Ready to experience superior cutting performance with Hot Pressed Segmented Diamond Saw Blade? Contact us at [email protected] for quotes and technical support today!
