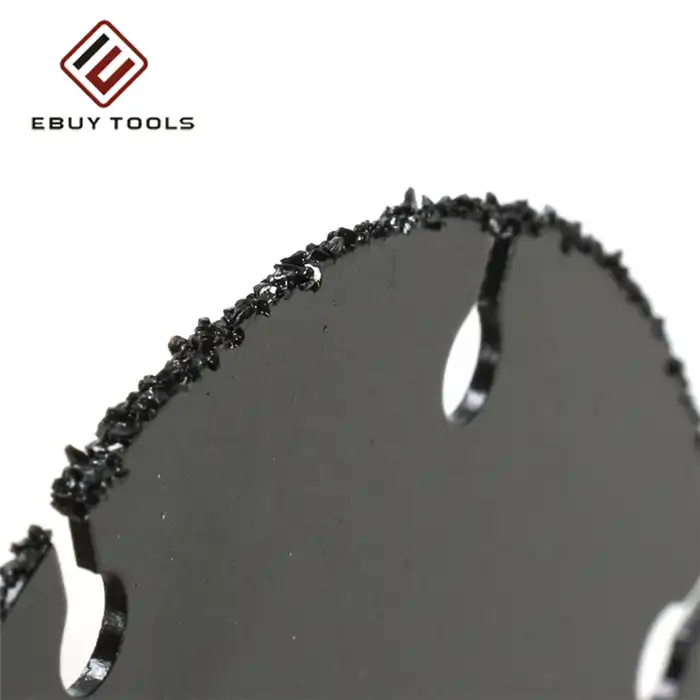

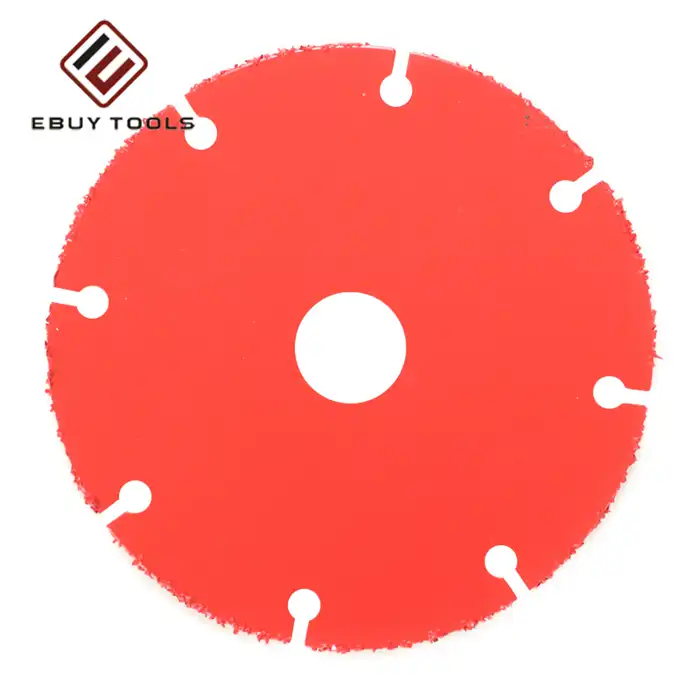

Brazing Diamond Saw Blade

 Superior Performance Through Advanced Manufacturing

Our Brazing Diamond Saw Blade represents cutting-edge industrial technology, manufactured using precision vacuum brazing processes at Danyang Ebuy's 77,000-square-meter facility. With 319 skilled employees and a daily production capacity of 150,000 diamond saw blades, we deliver enterprise-grade cutting solutions that achieve 70-80% diamond exposure height through chemical metallurgical bonding. Our blades feature heat resistance up to 900°C, matrix hardness ranging from HRC 35-45, and provide 2-5 times longer lifespan than standard electroplated alternatives, making them ideal for demanding industrial applications.

Our Factory

Understanding Brazing Diamond Technology

A product uses advanced vacuum brazing technology to create robust chemical bonds between synthetic diamond grits and steel cores. Unlike traditional sintered blades where diamonds are mechanically embedded, our brazing process establishes true metallurgical connections using specialized Ni-Cr-B alloy fillers.

This innovative manufacturing approach eliminates common industry problems like premature diamond pull-out and glazing effects. The high diamond exposure creates larger chip pockets, dramatically improving cutting efficiency across multiple materials.

Our Certificate

Technical Specifications

Parameter	Specification
Diamond Exposure Height	70-80% of particle diameter
Heat Resistance	Up to 900°C
Matrix Hardness	HRC 35-45
Bond Type	Chemical metallurgical
Wetting Angle	<90 degrees
Steel Core Material	SAE 1050/1070 or 75Cr1
Filler Metal	Ni-Cr-B alloy
Typical Diamond Mesh	30/40 or 40/50

Key Advantages and Properties

Superior Bond Strength

The vacuum brazing process forms hard carbides (Cr-C, Cr-B) that anchor diamonds securely. This creates shear strength significantly higher than electroplating methods, preventing diamond loss during heavy-duty cutting operations.

Exceptional Heat Resistance

Your blade maintains performance integrity even during sustained dry cutting operations. The specialized brazing alloy prevents bond softening at high temperatures, enabling continuous use without water cooling requirements.

Multi-Material Versatility

Our design philosophy centers on universality. You can maintain consistent cutting speeds across disparate materials without changing tools or requiring different cooling methods. This saves time and reduces equipment costs in complex projects.

Enhanced Chip Removal

The high diamond protrusion creates efficient chip evacuation channels. This prevents material buildup and reduces friction, leading to faster cutting speeds and extended blade life.

Exhibition

Primary Applications

Emergency Rescue and Demolition

Fire departments and emergency responders rely on these blades for all-cut requirements. You can slice through composite barriers containing steel rebar, angle iron, bulletproof glass, aluminum, and concrete simultaneously without tool changes.

Foundry and Metalworking Operations

Specifically engineered for B2B foundry environments, our blades excel at cutting gray iron and ductile iron. The specialized filler metal barrier withstands the chemical affinity between iron and diamond better than traditional alternatives.

Construction and Composite Materials

Perfect for cutting PVC pipes, fiberglass, car body panels, and reinforced plastics. The high diamond exposure prevents material melting and blade gumming, common failure modes with resin-bonded alternatives.

Stone and Ceramic Processing

Ideal for dry-cutting ultra-compact surfaces, porcelain pavers, and quartzites where fast stock removal is essential. The blade leverages high diamond exposure to mitigate heat buildup in water-restricted environments.

Production Process

Performance Comparison

Traditional sintered blades bury diamonds inside metal segments, offering longevity in pure concrete but cutting slower with glazing risks on metal. Electroplated blades rely on weak physical adhesion, leading to premature diamond loss.

Our Brazing Diamond Saw Blade bridges these gaps by providing chemical bonding strength with aggressive cutting action. You get the speed advantages of exposed diamonds with the durability of metallurgical bonding.

Quality Assurance

Each edge experiences thorough quality control forms at our office. We screen generation at each step and conduct pre-shipment assessments through arbitrary examining. Our items comply with industry benchmarks and can be tried or certified upon request.

Packaging

Frequently Asked Questions

Q: How does a item vary from sintered or laser welded blades?

A: Brazing chemically bonds jewels to the surface with 80% presentation for speed and multi-material flexibility. Sintered/laser edges bury precious stones interior metal fragments for life span in unadulterated concrete but cut slower and hazard coating on metal.

Q: Can I utilize this edge for dry cutting exclusively?

A: Yes. Vacuum brazed edges are particularly planned with tall warm scattering properties, making them the prevalent choice for dry cutting applications where water is inaccessible or hazardous.

Q: Will the precious stones drop off when cutting steel?

A: No. The chemical metallurgical bond shaped amid vacuum brazing makes greatly tall jewel holding constrain, anticipating pull-out indeed when cutting ferrous metals that ordinarily cause vibration.

Q: Is it appropriate for exactness cutting of ceramic tiles?

A: Whereas it cuts ceramics viably, the forceful coarseness clears out a rougher edge than persistent edge sintered tile edges. It's way better suited for rough-outs, indents, or devastation work.

Q: What is the anticipated life expectancy compared to electroplated blades?

A: Our edges regularly offer 2-5 times the life expectancy of high-quality electroplated choices due to more grounded holding that utilizes the full life of each jewel particle.

Q: Can you customize edges with our branding?

A: Yes, we can print your symbol on both items and bundling when you meet our least arrange amount. We too offer extra branding choices based on your particular prerequisites.

Contact Us

Ready to experience superior cutting performance with Brazing Diamond Saw Blade? Contact our team at [email protected] for pricing and customization options.
