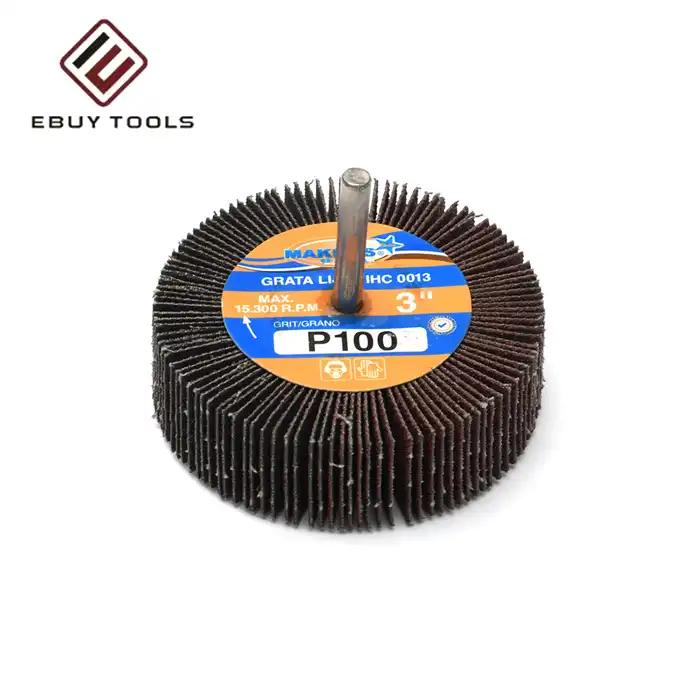

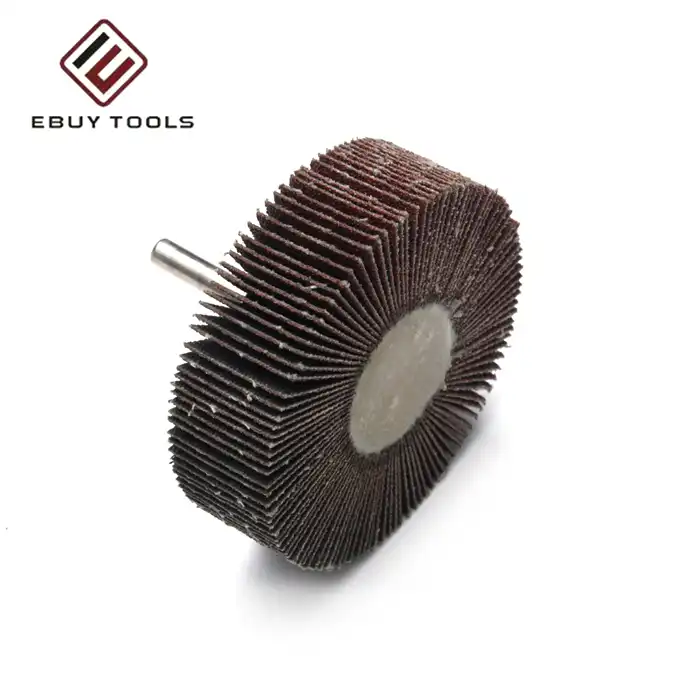

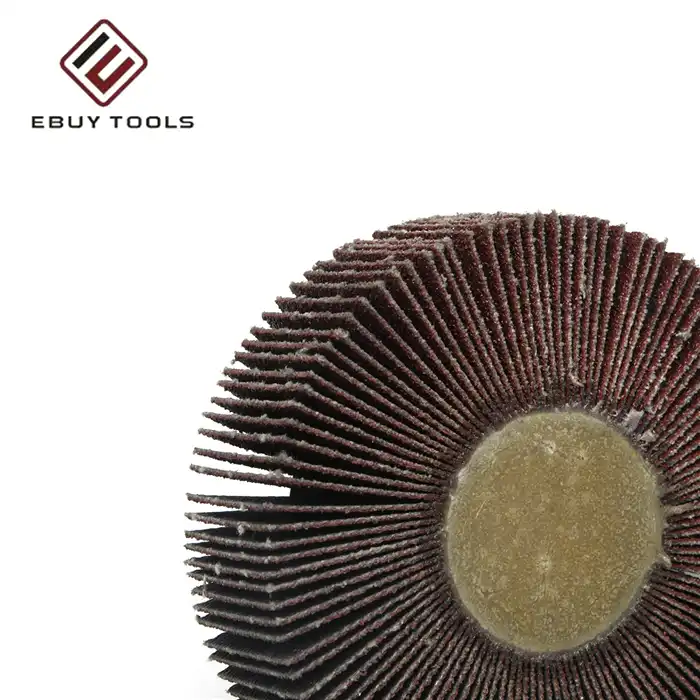

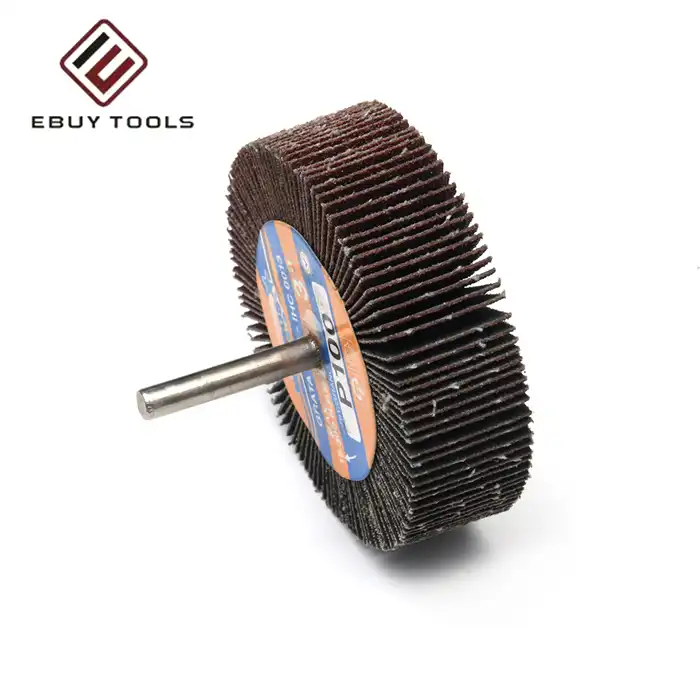

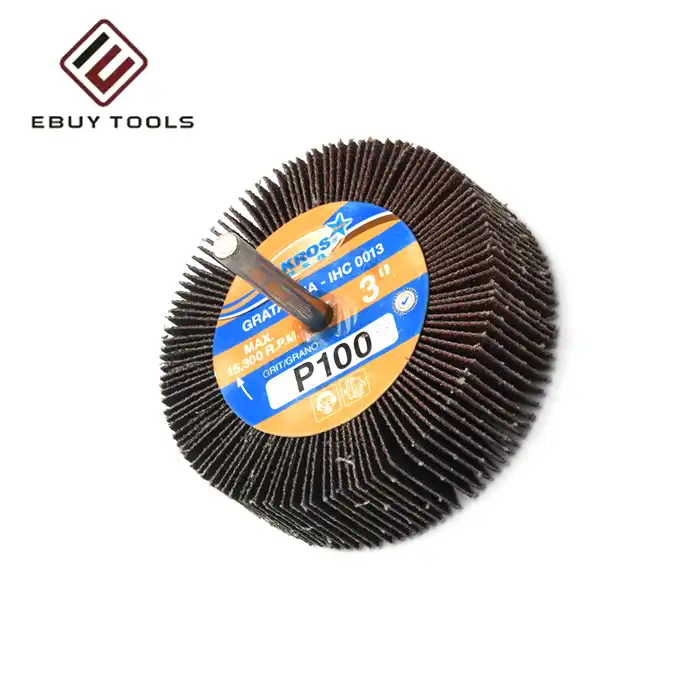

Sanding Flap Wheel

Professional Sanding Flap Wheel - Precision Abrasives for Industrial Applications

At Danyang Ebuy Tools, our professional Sanding Flap Wheel delivers enterprise-level performance with exceptional consistency and durability. Engineered with multiple overlapping abrasive cloth flaps arranged radially around a central hub, our wheels ensure superior surface finishing across diverse applications. With our 77,000 square meter facility and 319 skilled employees, we maintain strict quality standards while producing approximately 150,000 pieces daily across our cutting tools range. Our product solutions feature advanced Zirconia Alumina and Ceramic Alumina formulations, delivering consistent Ra values and extended tool life for your critical manufacturing processes.

Our Factory

Understanding the Advanced Engineering Behind Our Sanding Flap Wheels

Our product represents a significant advancement over traditional rigid grinding wheels and flat sanding discs. The unique radial flap design allows for flexible conforming to workpiece contours while maintaining consistent surface contact. This innovative construction eliminates common manufacturing pain points including chatter marks, thermal damage, and rapid clogging issues.

The self-sharpening mechanism ensures worn abrasive grain sheds naturally, revealing fresh cutting surfaces throughout the tool's lifecycle. This translates to predictable performance and consistent Surface Roughness Average values, making them ideal for precision applications where surface quality cannot be compromised.

Our Certificate

Technical Specifications and Performance Data

Parameter	Specification
Diameter Range	25mm - 200mm
Shaft Diameter	6mm - 25mm
Grit Range	P40 - P600 (FEPA Standard)
Maximum RPM	20,000+ (varies by size)
Abrasive Types	Aluminum Oxide, Zirconia Alumina, Ceramic
Backing Material	X-weight/J-weight Cotton, Poly-cotton
Safety Standard	EN 13743 Compliant
Operating Temperature	-10°C to +60°C

Versatile Applications Across Industries

Metal Fabrication and Processing

Our wheels excel in internal pipe finishing, deburring hydraulic cylinders, and stainless steel tank fabrication. The centrifugal expansion ensures constant contact with inner diameters, effectively removing rust, weld spatter, and machining marks in confined spaces.

Woodworking and Furniture Manufacturing

For complex contoured profiles like chair legs and crown moldings, these tools preserve design geometry while preparing surfaces for finishing. Unlike belt sanders that flatten rounded edges, our flap wheels wrap around profiles seamlessly.

Automotive and Aerospace

Critical for achieving satin finishes on stainless steel components, our wheels blend Heat Affected Zones without introducing thermal damage that could compromise material properties.

Exhibition

Advanced Material Technologies

Abrasive Formulations

· Zirconia Alumina (ZA): Engineered for aggressive stock removal on stainless steel with self-sharpening properties

· Ceramic Alumina: Provides cool cutting action on superalloys, preventing thermal damage

· Aluminum Oxide (AO): Optimal for general-purpose applications on metals and wood

Backing Cloth Engineering

Our substrates utilize premium X-weight and J-weight cotton or poly-cotton blends, engineered to withstand high centripetal forces while maintaining necessary flexibility for contour following.

Quality Assurance and Manufacturing Excellence

Every Sanding Flap Wheel undergoes rigorous quality control through our dedicated R&D department. Our stringent inspection processes include:

· Raw material verification and incoming inspection

· In-process quality monitoring at every manufacturing stage

· Pre-shipment random sampling and performance testing

· Compliance verification with international safety standards

Packaging

Frequently Asked Questions

Q: When ought to I select Zirconia over Aluminum Oxide for my application?

A: Choose Zirconia for high-pressure pounding on difficult metals like stainless steel or carbon steel where self-sharpening is basic. Utilize Aluminum Oxide for delicate metals, wood, or common wrapping up applications requiring lower weight operations.

Q: What causes over the top vibration amid operation?

A: Vibration regularly comes about from wheel lopsidedness, worn chuck components, or erroneous RPM settings. Continuously assess shaft straightness and guarantee RPM is inside 60-80% of greatest evaluated speed for ideal performance.

Q: What's the ideal working speed for best results?

A: While most extreme RPM is printed on each wheel, ideal execution happens at 60-80% of most extreme speed. This avoids grating coating whereas guaranteeing legitimate fold expansion for successful cutting action.

Q: Can I utilize these wheels for damp applications?

A: Standard wheels utilize cotton backings unacceptable for damp conditions. Ask our waterproof variations including polyester backings and water-resistant tar bonds, particularly outlined for damp crushing applications.

Q: How do I accomplish the culminate glossy silk wrap up on stainless steel?

A: Follow this proficient movement: Begin with P60-P80 for weld leveling, advance to P120 for scratch expulsion, and wrap up with P240-P320 for food-grade glossy silk finishes.

Q: What's your least arrange amount for custom branding?

A: We offer custom branding administrations counting symbol printing on items and bundling. Particular MOQ prerequisites depend on customization complexity - contact our group for nitty gritty specifications.

Q: How long is your ordinary lead time?

A: Standard items dispatch inside 10-15 days after store. Custom details may require 15-45 days depending on plan complexity. We give standard advance overhauls all through production.

Why Choose Danyang Ebuy Tools?

Our commitment to accuracy fabricating, combined with broad industry encounter, guarantees each item meets the most noteworthy proficient measures. Our cutting edge office capabilities, talented workforce, and commitment to persistent advancement make us your dependable accomplice for requesting applications.

With comprehensive quality control frameworks and customization capabilities, we convey arrangements that surpass desires whereas keeping up competitive estimating and solid conveyance plans.

Contact Us

Ready to enhance your finishing operations with Sanding Flap Wheel? Contact our technical team at [email protected] for expert guidance.
